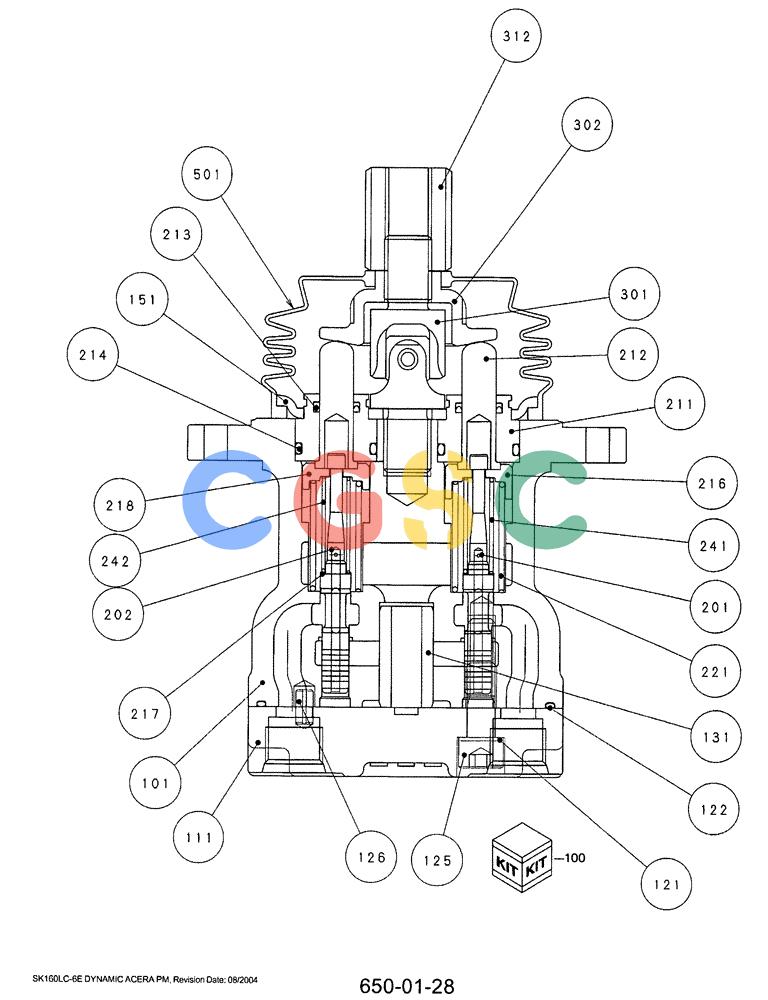

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (07-011) - VALVE PILOT, P/N YN30V00069F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
498 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00069F1 | [1] | VALVE | KOBASSY, PILOT Superseded by part number: YN30V00095F1 |
| 100. | YT30V00008R100 | [1] | REPAIR KIT | KOB(Includes 121,122,213,214) |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 111. | YN30V00069S111 | [1] | PLATE | KOB |
| 121. | 2436U1277S121 | [2] | WASHER | KOB(Also part of Kit YT30V00008R100) |
| 122. | YT30V00008S122 | [1] | O-RING | KOB(Also part of Kit YT30V00008R100) |
| 125. | YT30V00008S125 | [2] | CAPSCREW | KOBSCREW |
| 126. | ZP26D05010 | [1] | PIN | KOBRoll -- OD 05 x 10mm Long |
| 131. | YT30V00008S131 | [1] | BUSHING | KOB |
| 151. | YT30V00008S151 | [1] | PLATE | KOB |
| 201. | NSS | [2] | NOT SOLD SEPARAT | CONSPOOL |
| 202. | NSS | [2] | NOT SOLD SEPARAT | CONSPOOL |
| 211. | 2436U1277S211 | [4] | PLUG | KOB |
| 212. | 2436U2938S212 | [4] | ROD | KOBROD, PUSH |
| 213. | 2436U1277S213 | [4] | SEAL | KOB(Also part of Kit YT30V00008R100) |
| 214. | ZD12P02000 | [4] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB(Also part of Kit YT30V00008R100), ID 19.80 ± 0.22 x OD 24mm |
| 216. | YT30V00008S216 | [2] | SEAT | KOBSEAT |
| 217. | 2436U1277S217 | [4] | WASHER | KOB |
| 218. | YT30V00008S10 | [2] | SEAT | KOB Superseded by part number: YT30V00008S010 |
| 221. | YN30V00069S221 | [4] | SPRING | KOB |
| 241. | YN30V00069S241 | [2] | SPRING | KOB |
| 242. | YN30V00069S242 | [2] | SPRING | KOB |
| 301. | 2436U2581S301 | [1] | FLEXIBLE JOINT | KOB |
| 302. | YT30V00008S302 | [1] | PLATE | KOB |
| 312. | YT30V00008S312 | [1] | NUT | KOB |
| 501. | YT30V00008S501 | [1] | BOOT | KOB |
