神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (07-012) - VALVE,P/N YX30V00004F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
280 次

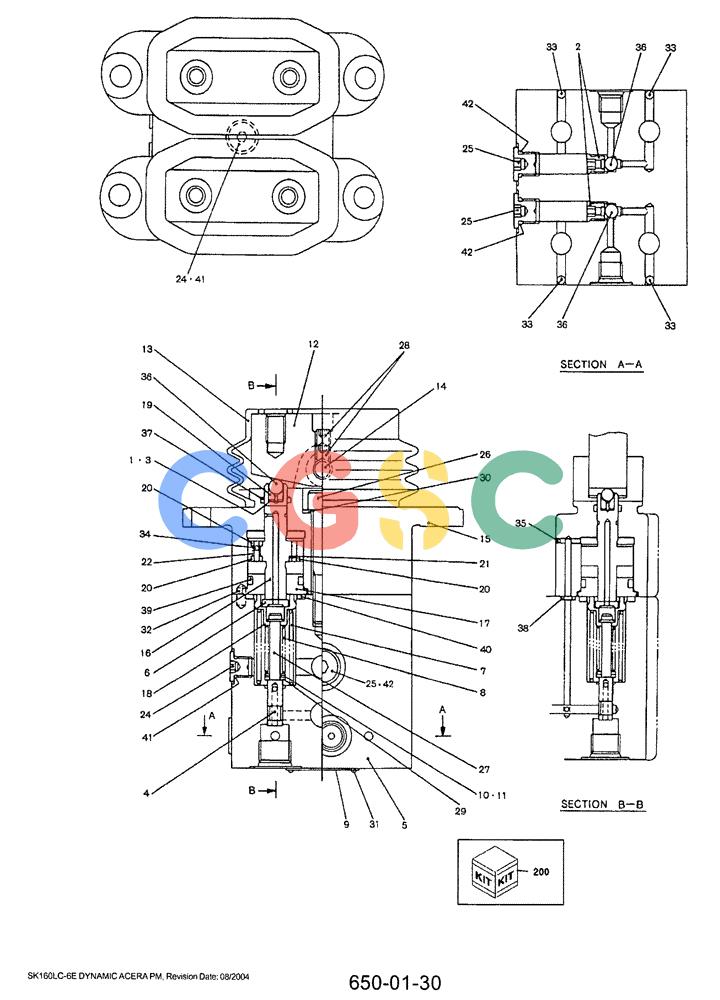

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX30V00004F1 | [1] | VALVE | KOB Superseded by part number: YX30V00004F2 |
| 1. | YX30V00004S001 | [4] | ORIFICE | KOB |
| 2. | 2436U2755S4 | [2] | SEAT | KOB |
| 3. | YX30V00004S003 | [4] | ORIFICE | KOB |
| 4. | NSS | [4] | NOT SOLD SEPARAT | CONSPOOL (PART OF KIT) |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 6. | YX30V00004S006 | [4] | STOP | KOB |
| 7. | YX30V00004S007 | [4] | SPRING | KOB |
| 8. | YR30V00013S009 | [4] | SPRING | KOB(ALSO PART OF KIT) |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE |
| 10. | 2436U1354S25 | [4] | SHIM | KOB(ALSO PART OF KIT) |
| 11. | YR30V00013S012 | [4] | SHIM | KOBSHIM (ALSO PART OF KIT) |
| 12. | YX30V00004S012 | [2] | CAM | KOB |
| 13. | YN30V00022S016 | [2] | BOOT | KOB |
| 14. | YN30V00022S017 | [2] | PIN | KOB |
| 15. | NSS | [2] | NOT SOLD SEPARAT | CONCOVER |
| 16. | NSS | [4] | NOT SOLD SEPARAT | CONPISTON |
| 17. | NSS | [4] | NOT SOLD SEPARAT | CONGUIDE |
| 18. | YX30V00004S018 | [4] | SLEEVE | KOB(ALSO PART OF KIT) |
| 19. | YX30V00004S019 | [4] | HOLDER | KOB |
| 20. | NSS | [12] | NOT SOLD SEPARAT | CONRING |
| 21. | NSS | [4] | NOT SOLD SEPARAT | CONORIFICE |
| 22. | NSS | [4] | NOT SOLD SEPARAT | CONSPRING |
| 24. | YX30V00004S024 | [3] | PLUG | KOB |
| 25. | 2436U2412S26 | [3] | PLUG | KOB1/4"PF |
| 26. | YX30V00004S026 | [2] | CAPSCREW,Hex Socket Head, M10 x 60mm | KOBSCREW Superseded by part number: ZS23C10060 |
| 27. | 2436U1354S15 | [4] | BOLT | KOB(ALSO PART OF KIT) |
| 28. | ZS83C08008 | [4] | SCREW | KOBSet -- M08x1.25x08mm |
| 29. | 2436U1354S16 | [4] | WASHER | KOB(ALSO PART OF KIT) |
| 30. | YX30V00004S030 | [2] | WASHER | KOB |
| 31. | EZ30V00001S037 | [2] | SCREW | KOB |
| 32. | YX30V00004S032 | [4] | PIN | KOB |
| 33. | NSS | [6] | NOT SOLD SEPARAT | CONBALL |
| 34. | NSS | [4] | NOT SOLD SEPARAT | CONBALL |
| 35. | NSS | [4] | NOT SOLD SEPARAT | CONBALL |
| 36. | 2436U1487S37 | [6] | BALL | KOB |
| 37. | PH30V00004S031 | [4] | PACKING | KOB |
| 38. | ZD11P00500 | [4] | O-RING | KOB |
| 39. | ZD11P02400 | [4] | O-RING | KOB |
| 40. | ZD11P02600 | [4] | O-RING | KOB |
| 41. | ZD12P00800 | [3] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 42. | ZD12P01100 | [3] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 200. | YX30V00004R200 | [4] | REPAIR KIT | KOBREPAIR KIT (INCLUDES 4, 8, 10, 11, 18, 27, 29) |
