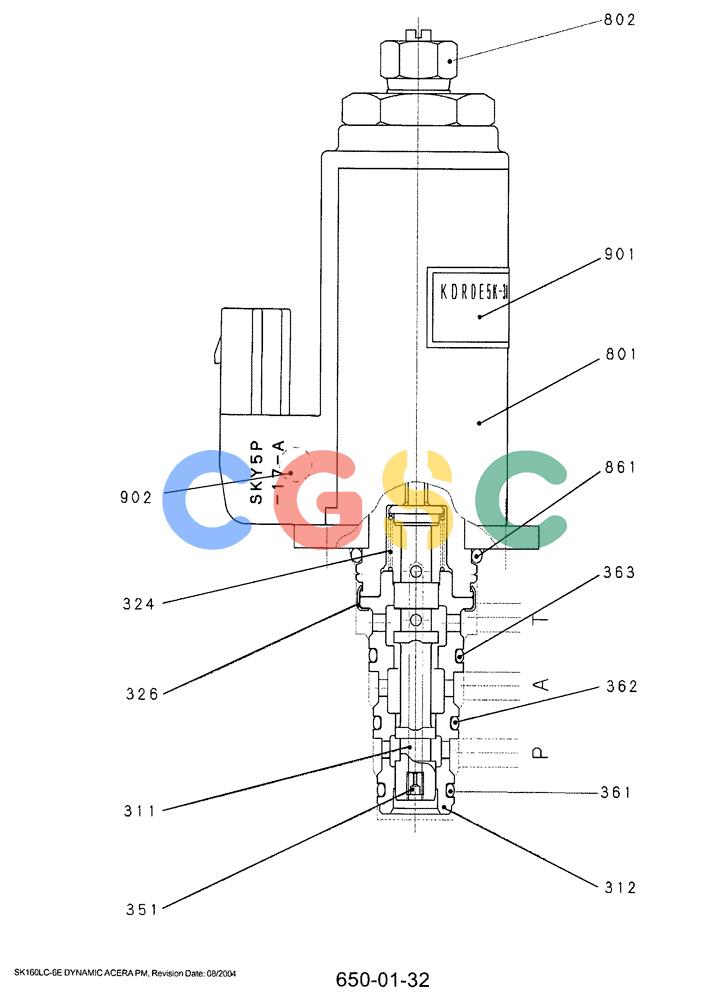

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (07-013) - VALVE, SOLENOID, P/N YB35V00003F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
855 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB35V00003F1 | [1] | VALVE | KOB |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 324. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 326. | NSS | [1] | NOT SOLD SEPARAT | CONRING |
| 351. | NSS | [1] | NOT SOLD SEPARAT | CONORIFICE |
| 361. | YN35V00004S361 | [1] | O-RING | KOB |
| 362. | YN35V00004S362 | [1] | O-RING | KOB |
| 363. | YN35V00004S363 | [1] | O-RING | KOB |
| 801. | NSS | [1] | NOT SOLD SEPARAT | CONSOLENOID |
| 802. | YN35V00018S802 | [1] | NUT | KOB |
| 861. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 901. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| 902. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
