神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (07-015) - VALVE ASSY, SOLENOID, P/N YN35V00040F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
935 次

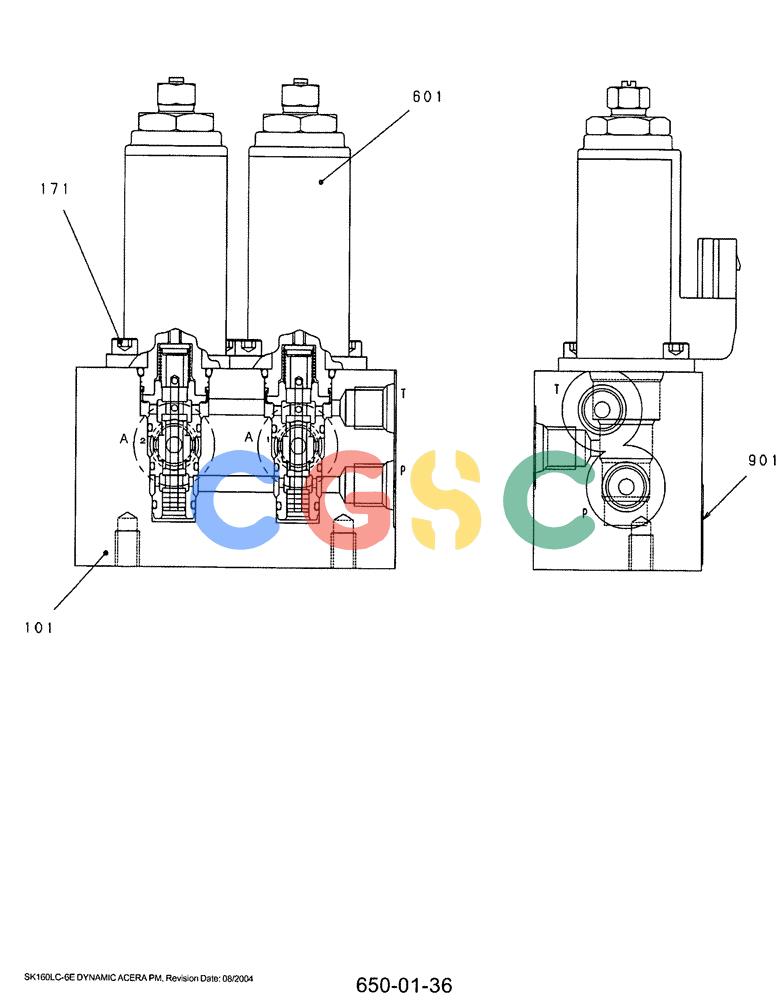

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00040F1 | [1] | VALVE | KOBAssembly, Solenoid Valve (Independent Travel) |
| 101. | YY35V00001S101 | [1] | BODY | KOB |
| 171. | YX35V00002S171 | [4] | SCREW,Hex Socket Head, M5 x 12mm | KOBM05x0.8x12mm Superseded by part number: ZS23C05012 |
| 601. | YB35V00005F1 | [2] | SOLENOID VALVE | KOB Superseded by part number: YN35V00048F1 |
| 901. | YN35V00040S901 | [1] | PLATE | KOBNAME PLATE |
