神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (07-016) - VALVE ASSY, SOLENOID, P/N YN35V00039F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
560 次

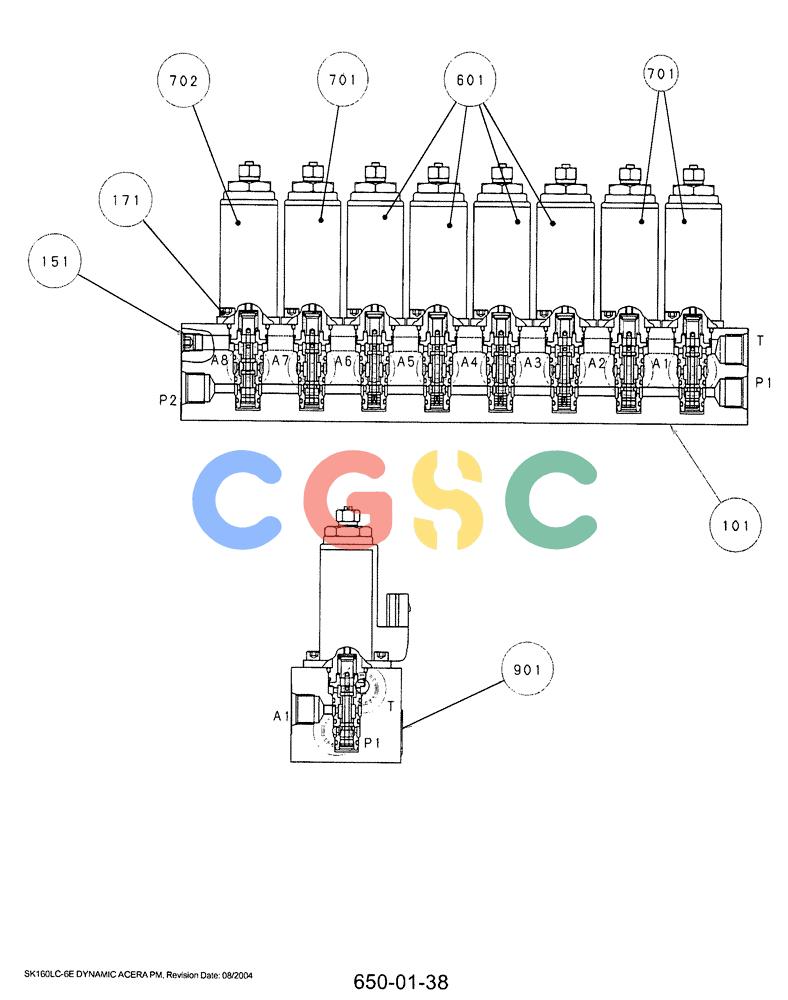

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00039F1 | [1] | SOLENOID VALVE | KOB |
| 101. | YN35V00039S101 | [1] | BODY | KOB |
| 151. | 2436U1165S152 | [1] | PLUG | KOB |
| 171. | YX35V00002S171 | [16] | SCREW,Hex Socket Head, M5 x 12mm | KOBM05x0.8x12mm Superseded by part number: ZS23C05012 |
| 601. | YB35V00005F1 | [4] | SOLENOID VALVE | KOBP1, P2 Unload, Travel Straight, Arm 2 Speed (Conflux) Superseded by part number: YN35V00048F1 |
| 701. | YN35V00050F1 | [3] | SOLENOID VALVE,Cartridge W/Coil | KOBAttachment Boost, Lever Lock, Travel 1, 2 Speed, Arm Var. Recirc. Superseded by part number: YN35V00061F1 |
| 702. | YB35V00006F1 | [1] | SOLENOID VALVE | KOBSwing Brake Superseded by part number: YN35V00051F1 |
| 901. | YA35V00001S901 | [1] | PLATE | KOB |
