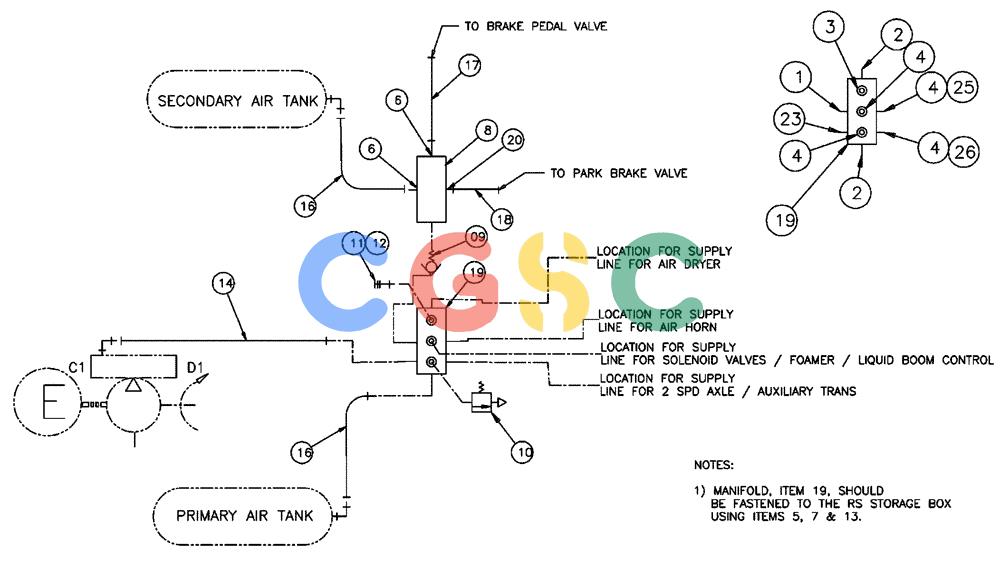

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (07-002) - AIR MANIFOLD ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
688 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN302709
|
[1] |
FITTING
|
BN
8Mor-8Mp
|
| 2. |
BN444003
|
[2] |
FITTING
|
BN
8Mj-12Mb
|
| 3. |
BN302360
|
[1] |
FITTING
|
BN
-4 NPT x -6 ORB
|
| 4. |
BN323191
|
[4] |
FITTING
|
BN
Adapter, 4 NPT X -8 ORB Superseded by part number: 84292033
|
| 5. |
120104
|
[7] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 6. |
BN441006
|
[2] |
ADAPTER
|
BN
1/2 NPT-8 JIC
|
| 7. |
86624184
|
[7] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 8. |
BN51647
|
[1] |
TEE
|
BN
1/2 NPTF
|
| 9. |
BN2295247
|
[1] |
CHECK VALVE
|
BN
Air #5003980 Superseded by part number: G45437
|
| 10. |
BN2290667
|
[1] |
HYDRAULIC VALVE
|
BN
Safety 205105
|
| 11. |
BN2393326
|
[1] |
COUPLING
|
BN
B32 Superseded by part number: 84172049
|
| 12. |
87267960
|
[1] |
COVER
|
BN
dust, air chuck Superseded by part number: 86539389
|
| 13. |
87266133
|
[1] |
BRACKET, SUPPORTING
|
BN
Mount, Air Manifold
|
| 14. |
87266955
|
[1] |
HOSE
|
BN
4 x 60"
|
| 16. |
87266954
|
[2] |
HOSE
|
BN
8 x 17"
|
| 17. |
87267667
|
[1] |
HOSE
|
BN
8 x 70"
|
| 18. |
87266956
|
[1] |
HOSE
|
BN
Assembly, 4 X 82"
|
| 19. |
BN326042
|
[1] |
BODY
|
BN
Aluminum
|
| 20. |
BN21385
|
[1] |
ADAPTER
|
BN
FT, STR, NPT, 37º, FL
|
| 23. |
BN21249
|
[1] |
ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC
|
BN
|
| 25. |
BN2399411
|
[1] |
ADAPTER
|
BN
Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting
|
| 26. |
BN2399401
|
[1] |
ADAPTER
|
BN
Male, 1/4" Tube
|
