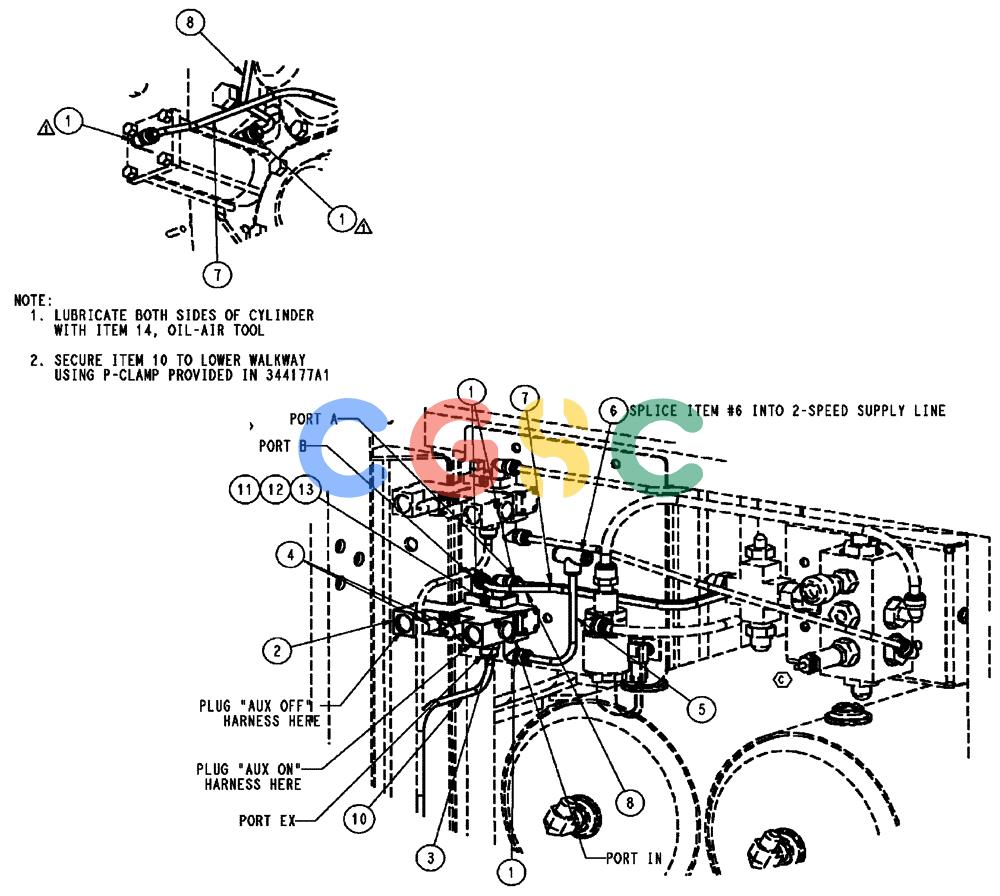

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (07-003) - AUX TRANSMISSION PNEUMATIC GROUP, FLX3010 & FLX3510 "SERIAL # 6700 AND LATER" Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
725 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2399404
|
[5] |
90 ELBOW
|
BN
1/4" MPT x 1/4" OD Tube, Push Lock Fitting
|
| 2. |
87271289
|
[1] |
PNEUMATIC VALVE
|
BN
Air, With Harness Superseded by part number: BN304833
|
| 3. |
BN2399401
|
[1] |
ADAPTER
|
BN
Male, 1/4" Tube
|
| 4. |
BN23041
|
[2] |
MUFFLER
|
BN
Air Valve 1/8" NPT Superseded by part number: BN316074
|
| 5. |
BN2292089
|
[1] |
AIR INTAKE TUBE
|
BN
Synflex, 1/4" Bulk
|
| 6. |
BN2399408
|
[1] |
UNION TEE
|
BN
Tube UTC140
|
| 7. |
BN2393051
|
[1] |
TUBE,1/4" X 500' BULK, SAE J844, RED
|
BN
Air, Synflex 1/4" Red, Bulk
|
| 8. |
BN2393054
|
[1] |
TUBE,1/4" X 16' BULK, SAE J844, BLUE
|
BN
Air, Synflex 1/4" Blue, Bulk
|
| 10. |
BN2393052
|
[2] |
TUBE,1/4" X 100' BULK, SAE J844, YELLOW
|
BN
Air, Synflex 1/4" Yellow, Bulk
|
| 11. |
840-1535
|
[2] |
SCREW,Pan, M5 x 35mm, Cl 4.8
|
CAS
Superseded by part number: 190003820168
|
| 12. |
86625261
|
[2] |
WASHER,5.5mm ID x 10mm OD x 1mm Thk
|
FAR
|
| 13. |
87344030
|
[2] |
NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR
|
BN
|
