神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (07-029) - VALVE, CONTROL - NIBBLER & BREAKER (YN30V00075F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
550 次

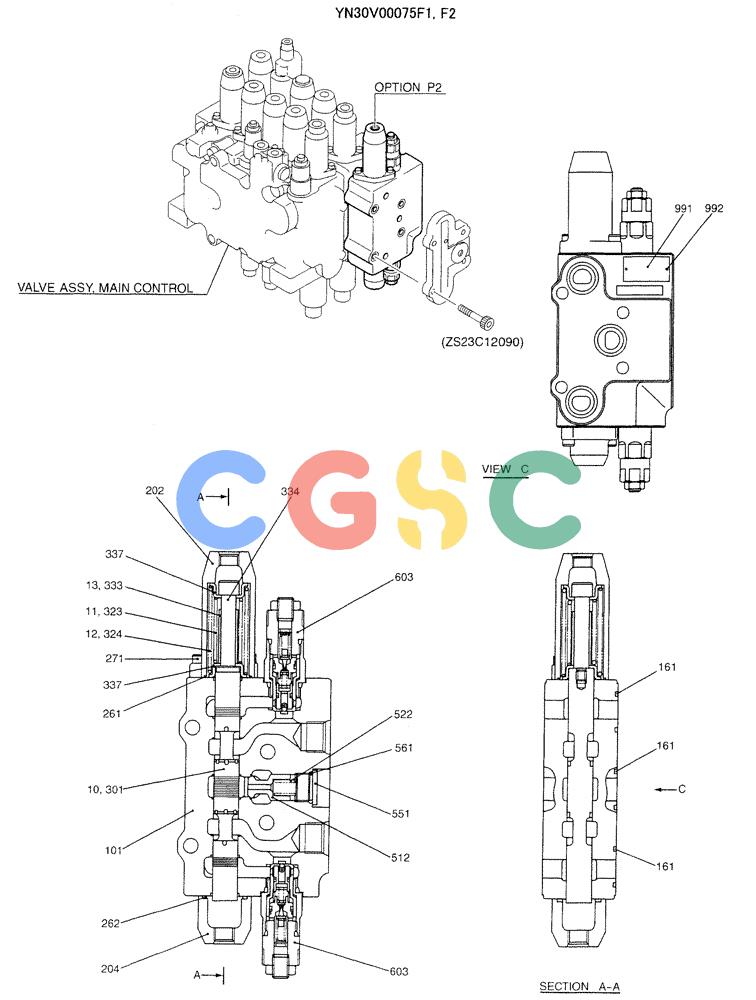

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00075F1 | [1] | VALVE | KOBASSY, CONTROL N&B |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| 161. | ZD12G03000 | [3] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 202. | 2436U1265S201 | [1] | COVER | KOB Superseded by part number: 2436U2631S201 |
| 204. | 2436U1265S203 | [1] | COVER | KOB |
| 261. | YY30V00031S262 | [1] | O-RING | KOB Superseded by part number: 2436U1457S162 |
| 262. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 271. | ZS23C08025 | [4] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 323. | 2436U1265S327 | [1] | SPRING | KOB |
| 324. | 2436U1265S322 | [1] | SPRING | KOB |
| 333. | 2436U1265S335 | [1] | STOP | KOB |
| 334. | 2436U1265S336 | [1] | BOLT | KOB |
| 337. | 2436U1265S332 | [2] | SPRING SEAT | KOB |
| 512. | 2436U1197S512 | [1] | POPPET | KOB |
| 522. | 2436U1197S522 | [1] | SPRING | KOB |
| 551. | 2436U1485S552 | [1] | PLUG | KOB |
| 561. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 603. | YN22V00002F1 | [2] | VALVE | KOBASSY, PORT RELIEF -- See Figure 07-029-01 |
| 991. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| 992. | NSS | [2] | NOT SOLD SEPARAT | CONPIN |
| . . | YV30V00008R100 | [1] | KIT | KOBREPAIR, CONSISTS OF REF. 301(1), 323(1), 324(1), 333(1), 334(1), 337(2) |
