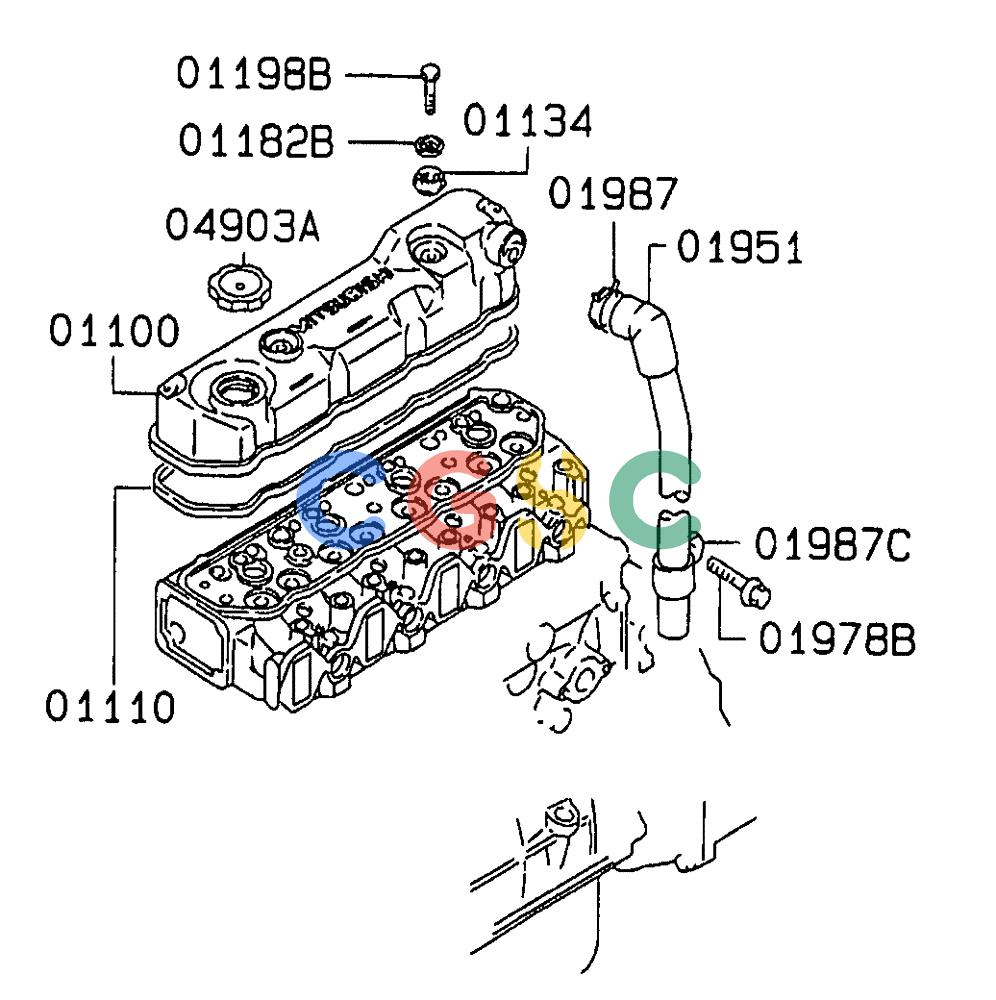

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-006 ) - ROCKER COVER & BREATHER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
195 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1100. | VAME014656 | [1] | COVER | KOBROCKER ALL Superseded by part number: VAME229391 |
| 1110. | VAME011279 | [1] | GASKET | KOBROCKER COVER ALL |
| 1134. | VAME011282 | [2] | RUBBER SLEEVE | KOBSEAL, ROCKER COVER BOLT ALL,RUBBER |
| 01182B. | VAME011281 | [2] | PLATE | KOBWASHER, ROCKER COVER ALL,8.5 |
| 01198B. | VAMF104864 | [2] | BOLT | KOBROCKER COVER ALL,8x45 |
| 1951. | VAME440346 | [1] | HOSE | KOBHOSE, ENG BREATHER ALL |
| 01978B. | VAMF140223 | [1] | BOLT | KOBBOLT, ENG BREATHER ALL,FLANGE.8x16 |
| 1987. | VAMH021352 | [1] | CLIP | KOBENG BREATHER ALL,D=49 |
| 01987C. | VAMS476419 | [1] | CLIP | KOBENG BREATHER ALL,D=30 |
| 04903A. | VAMD008784 | [1] | CAP | KOBENG OIL FILLER ALL Superseded by part number: VA1250A015 |
