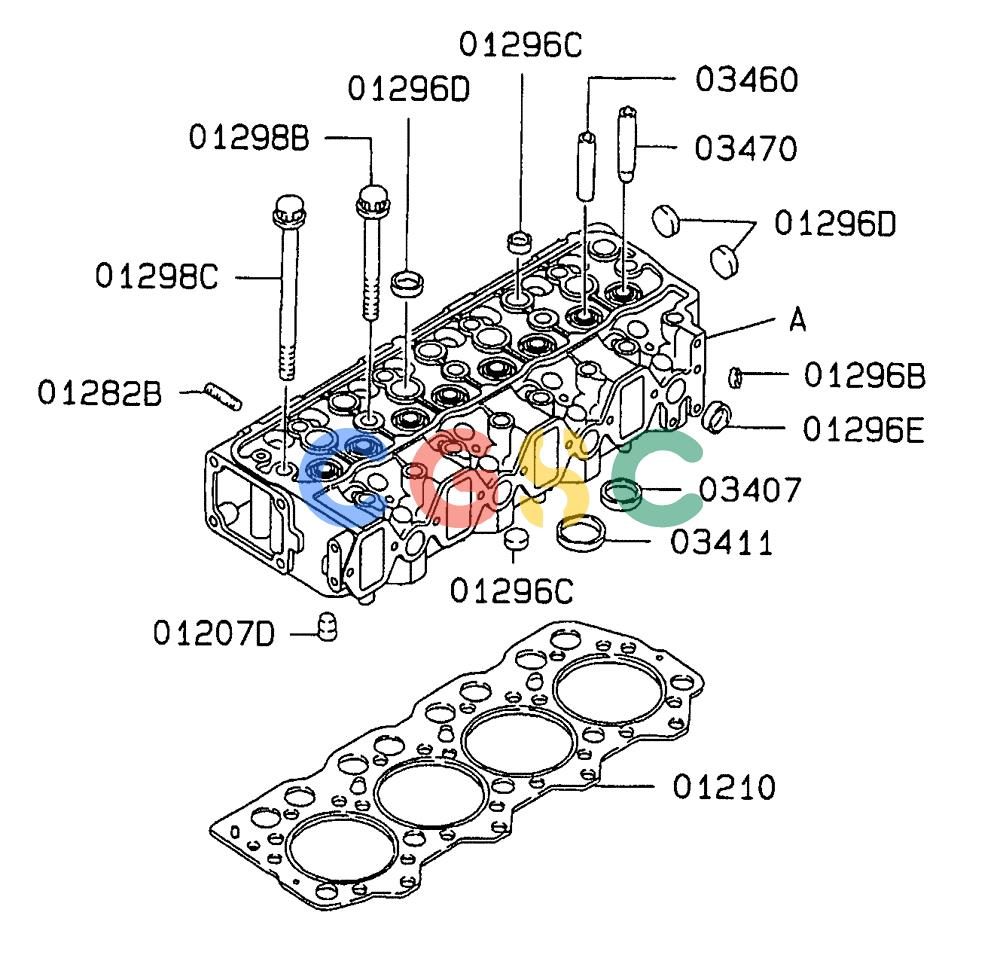

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-007 ) - CYLINDER HEAD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
623 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01207D. | VAME011012 | [1] | GUIDE | KOBDIRECTOR, CYLINDER HEAD WATER ALL |
| 1210. | VAME013300 | [1] | GASKET | KOBCYLINDER HEAD ALL,B SIZE |
| 01282B. | VAMH002149 | [8] | STUD | KOBCYLINDER HEAD ALL,10X48 |
| 01296B. | VAMS666132 | [4] | CAP | KOBCYLINDER HEAD ALL,SEALING,14 |
| 01296C. | VAMS666136 | [7] | PLUG | KOBCYLINDER HEAD ALL,SEALING,0=22 |
| 01296D. | VAMS666138 | [6] | CAP | KOBCYLINDER HEAD ALLSEALING,D=28 |
| 01296E. | VAMS666137 | [4] | CAP | KOBCYLINDER HEAD ALLSEALING,25 |
| 01298B. | VAME012429 | [12] | BOLT | KOBCYLINDER HEAD ALL14X122.5 |
| 01298C. | VAME012430 | [5] | BOLT | KOBCYLINDER HEAD ALL14X180.5 |
| 3407. | VAME013188 | [4] | SEAT | KOBEXHAUST VALVE ALL |
| 3411. | VAME013297 | [4] | SEAT, VALVE | KOBINLET ALL |
| 3460. | VAME031886 | [4] | GUIDE | KOBINLET VALVE ALL |
| 3470. | VAME031888 | [4] | GUIDE | KOBEXHAUST VALVE ALL |
