神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-009 ) - OIL PAN, FILTER & GAUGE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
410 次

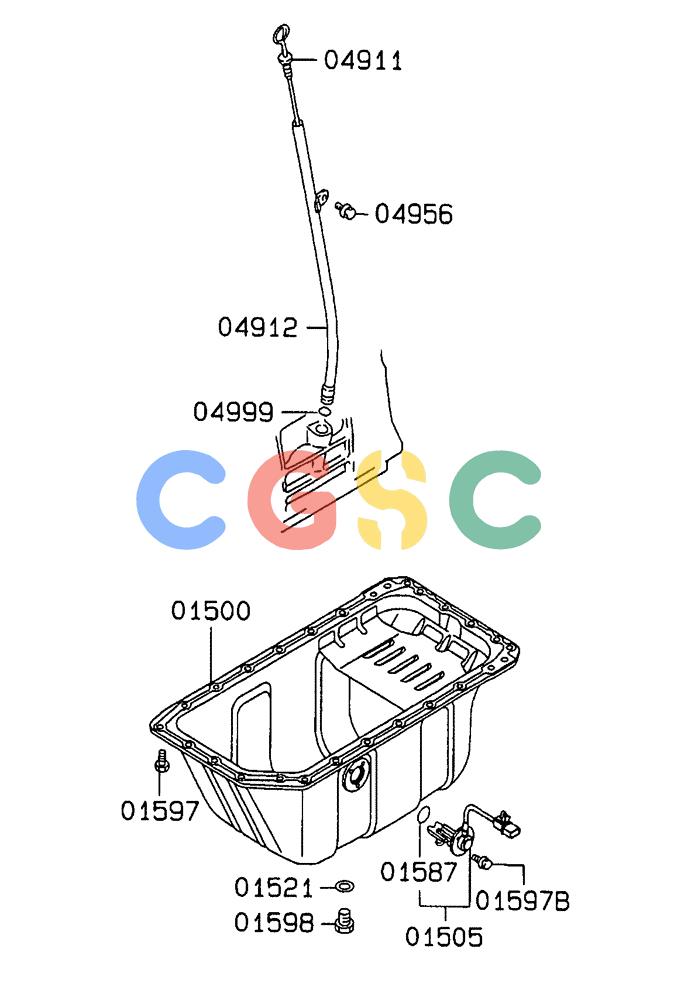

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1500. | VAME440032 | [1] | ENGINE OIL PAN | KOBALL |
| 1505. | VAMC867765 | [1] | SENSOR | KOBENG OIL PAN OIL LEVEL ALL |
| 1521. | VAMH035018 | [1] | GASKET | KOBENG OIL PAN DRAIN PLUG ALL,18 |
| 1587. | VAMC840593 | [1] | O-RING | KOBENG OIL PAN ALL |
| 1597. | VAMF140221 | [25] | BOLT | KOBENG OIL PAN ALLFLANGE,8X12 |
| 01597B. | VAMF140202 | [3] | BOLT | KOBENG OIL PAN ALLFLANGE,6X10 |
| 1598. | VAMH037126 | [1] | PLUG,18mm OD x 1.5 Thd Pitch | KOBENG OIL PAN ALLSCREW,18 |
| 4911. | VAME441354 | [1] | GAUGE, ENG OIL LEVEL ALL | |
| 4912. | VAME080936 | [1] | GUIDE | KOBENG OIL LEVEL GAUGE ALL |
| 4956. | VAMH000999 | [1] | BOLT | KOBENG OIL FILLER ALLFLANGE,6X12 |
| 4999. | VAMF520007 | [1] | O-RING | KOBENG OIL FILLER ALL ,11 |
