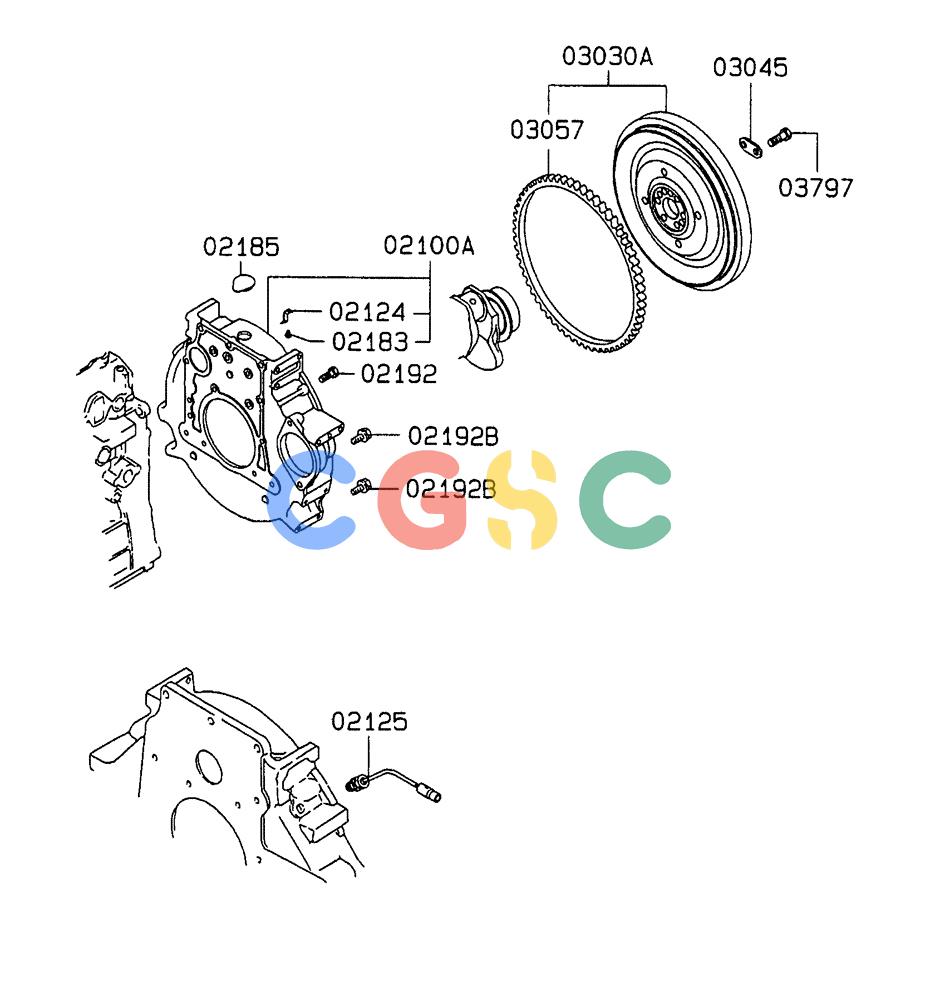

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-010) - FLYWHEEL & HOUSING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
168 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 021OOA. | VAME080975 | [1] | BELL HOUSING ASSY, FLYWHEEL ALL | BELL HOUSING ASSY, FLYWHEEL ALL |
| 2124. | VAME031062 | [1] | POINTER | KOBFLYWHEEL HOUSING BIG TIMING |
| 2125. | VAMC849577 | [1] | SENSOR | KOBFLYWHEEL HOUSING ENG SPEED |
| 2183. | VAMF200049 | [1] | SCREW | KOBFLYWHEEL HOUSING,MACHINE.5X8 |
| 2185. | VAME020359 | [1] | PLUG | KOBFLYWHEEL HOUSING,RUBBER,29 Superseded by part number: VAME609555 |
| 2192. | VAMH000969 | [12] | BOLT,FLANGE (10X28) FLYWHEEL HOUSING,10X28 | BOLT,FLANGE (10X28) FLYWHEEL HOUSING,10X28 |
| 02192B. | VAMH000727 | [2] | BOLT | KOBFLYWHEEL HOUSING, FLANGE,12X30 |
| 03030A. | VAME441314 | [1] | FLYWHEEL ASSY | |
| 3045. | VAME012553 | [3] | PLATE | KOBFLYWHEEL BOLT LOCK |
| 3057. | VAME072527 | [1] | RING GEAR | KOBFLYWHEEL,N=129 |
| 3797. | VAMH001216 | [6] | BOLT, FLYWHEEL,14X38 | |
