神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-020) - FUEL FILTER & HOSE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
574 次

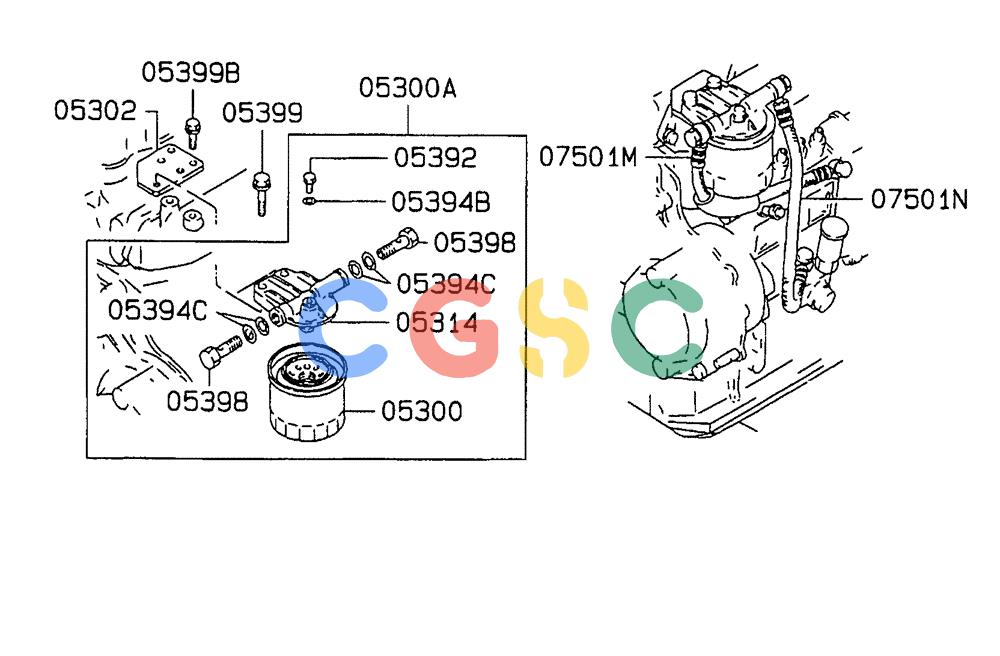

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 5300. | VAME016823 | [1] | ELEMENT | KOB0203-1- Superseded by part number: 2451R124-2A |
| 05300A. | VAME006064 | [1] | FILTER ASSY | KOBFUEL ASSY0203-1- Superseded by part number: VAME229356 |
| 5302. | VA3166281101 | [1] | BRACKET | KOBFUEL FILTER0203-1- |
| 5314. | VAME006065 | [1] | FILLER | KOBHEAD, FUEL, 0203-1- |
| 5392. | VAME016894 | [1] | PLUG | KOBFUEL FILTER0203-1-SCREW,8X9 |
| 05394B. | VAMH035067 | [1] | GASKET | KOBFUEL FILTER0203-1-,8 |
| 05394C. | VAMH035069 | [4] | GASKET | KOBFUEL FILTER0203-1-14 Superseded by part number: 133378A1 |
| 5398. | VAMH037087 | [2] | BOLT | KOBFUEL FILTER0203-1-14X26 |
| 5399. | VAMF140260 | [2] | BOLT | KOBFUEL FILTER0203-1-FLANGE,10X25 |
| 05399B. | VAMH000726 | [2] | BOLT | KOBFUEL FILTER0203-1-,FLANGE,10X22 |
| 07501M. | VAME217131 | [1] | HOSE | KOBINJECTION PUMP FUEL FEED0203-1-,L = 450 |
| 07501N. | VAME910542 | [1] | HOSE | KOBINJECTION PUMP FUEL FEED0203-1-,L=420 |
