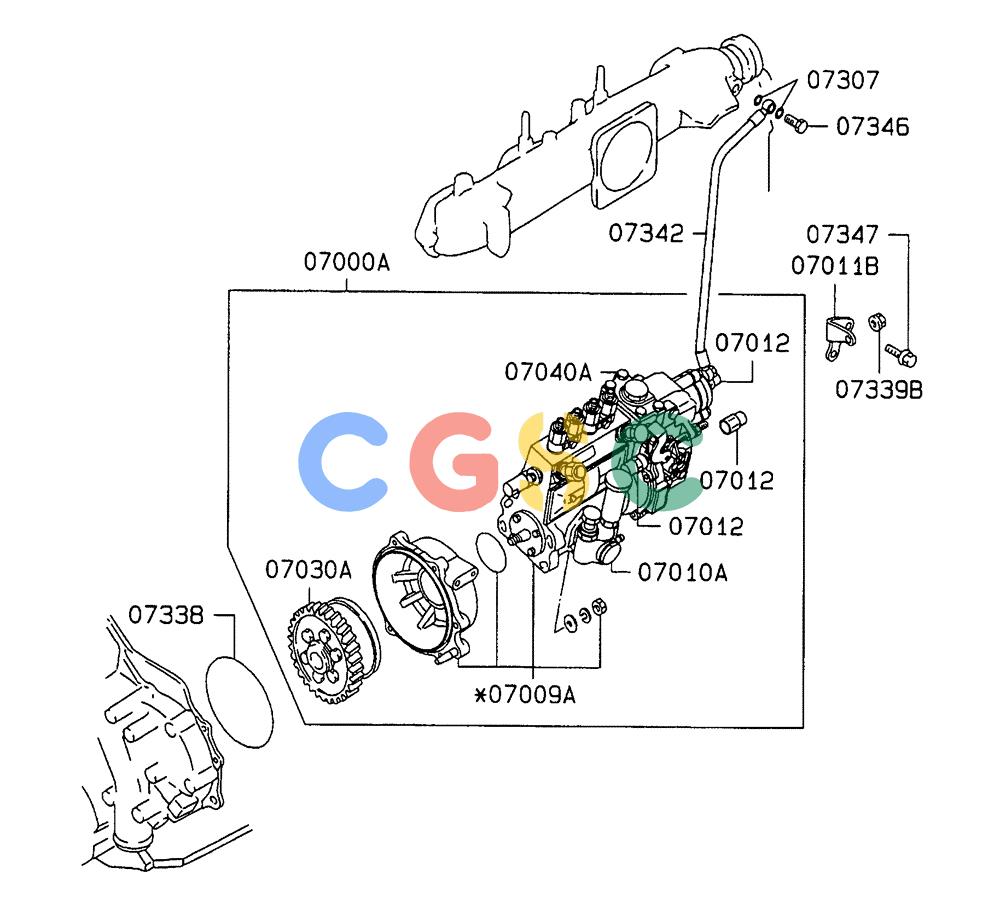

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-021 ) - FUEL INJECTION PUMP GENERAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
352 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 07000A. | VAME441030 | [1] | PUMP | KOBASSY, FUEL INJECTION 0203.1 -ZEXEL |
| 07009A. | NSS | [1] | NOT SOLD SEPARAT | CONBODY ASSY, INJECTION PUMP 0203.1 -NS (ME755117) |
| 07010A. | VAME742617 | [1] | PUMP | KOBASSY, INJECTION PUMP FUEL FEED 0203.1 - |
| 07011B. | VAME441230 | [1] | BRACKET, INJECTION PUMP 0203.1 - | |
| 7012. | VAME741568 | [1] | CAP | KOBINJECTION PUMP 0203.1 - |
| 7012. | VAME741601 | [1] | CAP | KOBINJECTION PUMP 0203.1 - |
| 7012. | VAME742317 | [1] | CAP | KOBINJECTION PUMP 0203.1 - |
| 07030A. | VAME755119 | [1] | TIMER | KOBASSY, INJECTION PUMP 0203.1 - |
| 07040A. | VAME755823 | [1] | GOVERNOR ASSY, INJECTION PUMP 0203.1 - RSV | |
| 7307. | VAMF660063 | [2] | GASKET | KOBINJECTION PUMP FUEL FEED PUMP 0203.1 - 10 Superseded by part number: VAF420210000 |
| 7338. | VAMF520423 | [1] | O-RING | KOBINJECTION PUMP 0203.1 -135 Superseded by part number: VAF315313500 |
| 07339B. | VAMF434105 | [1] | NUT | KOBINJECTION PUMP 0203.1 -FLANGE, 10 |
| 7342. | VAMH032781 | [1] | HOSE | KOBHOSE, INJECTION PUMP 0203.1 -12X190 |
| 7346. | VAMH038129 | [1] | EYEBOLT, INJECTION PUMP 0203.1 - | |
| 7347. | VAMH000713 | [2] | BOLT | KOBINJECTION PUMP 0203.1 -FLANGE,10X20 |
