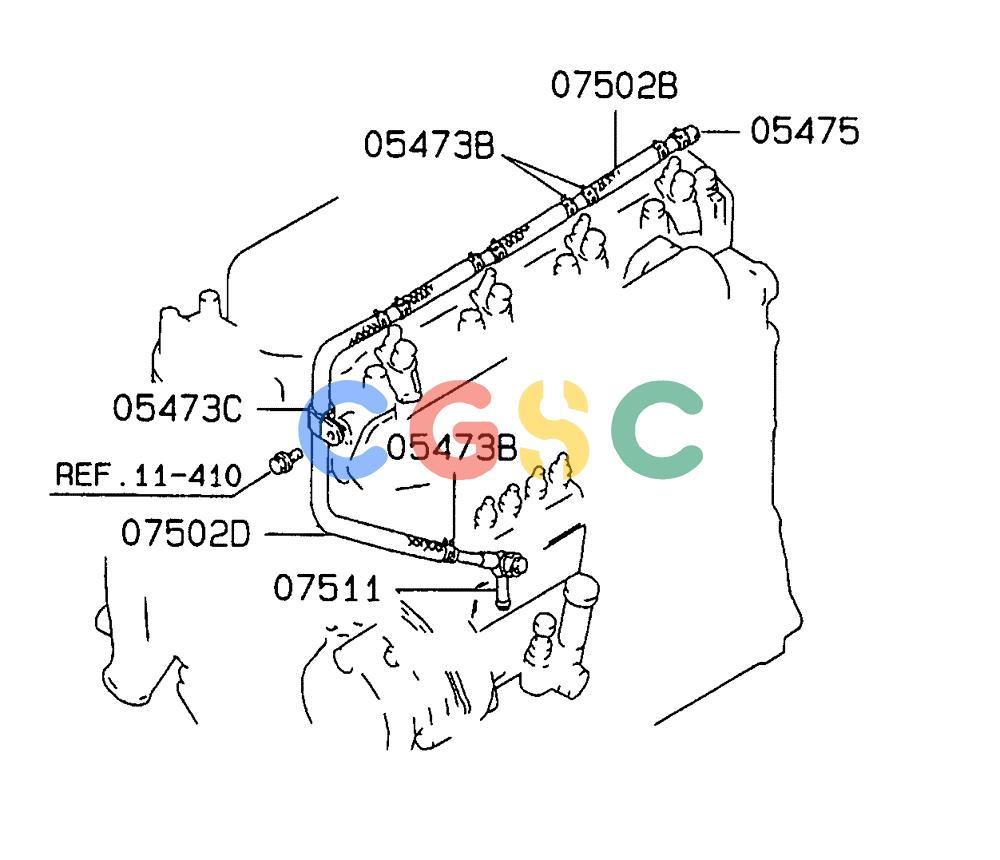

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-026 ) - FUEL RETURN HOSE COOLING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
832 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 05473B. | VAMS660163 | [9] | CLAMP | KOBFUEL RETURN LINE,D=11.6,0203.1 - Superseded by part number: VA0531771160 |
| 05473C. | VAMH020135 | [1] | CLIP | KOBFUEL RETURN LINE,0203.1 -,D=12 |
| 5475. | VAME016571 | [1] | CAP | KOBFUEL RETURN LINE,0203.1 - |
| 07502B. | VAMS642596 | [3] | HOSE | KOBFUEL INJECTION NOZZLE FUEL RETURN,0203.1 -,ID 6 x 2000mm Long(6 x 110) |
| 07502D. | VAMS642596 | [1] | HOSE | KOBFUEL INJECTION NOZZLE FUEL RETURN,0203.1 -ID 6 x 2000mm Long(6 x 380) |
| 7511. | VAME018087 | [1] | PIPE | KOBTUBE, INJECTION PUMP FUEL RETURN,0203.1 - |
