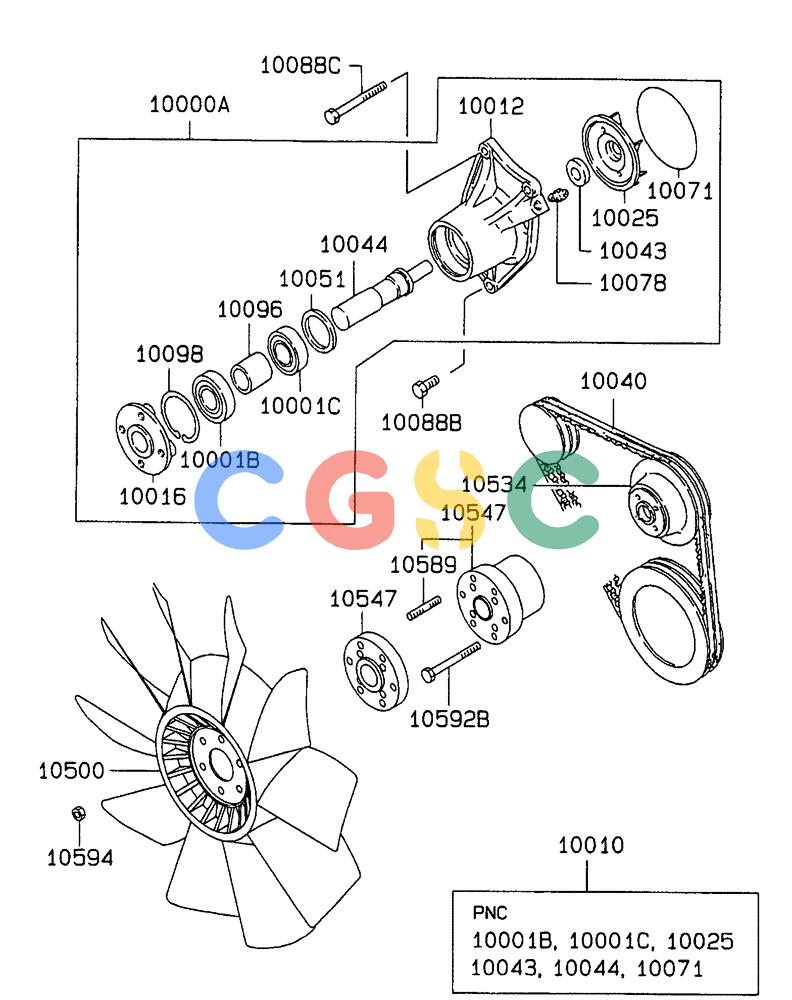

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-027 ) - WATER PUMP & FAN Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
641 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10000A. | VAME993520 | [1] | WATER PUMP | KOBASSY,0203.1 - |
| . . | VAME993520R | [1] | REMAN-WATER PUMP | KOBSK160LC-6E 08/2004 ASN YM03U0523 |
| . . | VAME993520C | [1] | CORE-WATER PUMP | KOBReturn Number |
| 10001B. | VAMS556185 | [1] | BEARING | KOBWATER PUMP,0203.1 -,BALL Superseded by part number: VAF801206305 |
| 10001C. | VAMS556065 | [1] | BEARING | KOBWATER PUMP,0203.1 -,BALL |
| 10010. | VAME993528 | [1] | PUMP | KOBWATER KIT,0203.1 - |
| 10012. | VAME220743 | [1] | CASE | KOBWATER PUMP,0203.1 - |
| 10016. | VAME037876 | [1] | FLANGE | KOBWATER PUMP PULLEY DRIVE,0203.1 - |
| 10025. | VAME015221 | [1] | IMPELLER | KOBWATER PUMP,0203.1 - |
| 10040. | VAMH014093 | [1] | V-BELT | KOB(2-Belt Set) (L=1165MM), ALTERNATOR 8 OTHERS,0203.1 -,1165X2 |
| 10043. | VAME241056 | [1] | SEAL | KOBUNIT, WATER PUMP SHAFT,0203.1 - |
| 10044. | VAME220739 | [1] | SHAFT | KOBWATER PUMP,0203.1 - |
| 10051. | VA3114502900 | [1] | WASHER | KOBTHRUST PUMP INR,0203.1 - |
| 10071. | VAMF520416 | [1] | O-RING | KOBWATER PUMP,0203.1 -,0203.1 -,D=100 |
| 10078. | VAMF524002 | [1] | LUBE NIPPLE | KOBWATER PUMP INR,0203.1 -,STRAIGHT,10 |
| 10088B. | VAMF140229 | [2] | BOLT | KOBWATER PUMP,0203.1 -,FLANGE,8X30 |
| 10088C. | VAMF140244 | [2] | BOLT | KOBWATER PUMP,0203.1 -,FLANGE,8X90 |
| 10096. | VAME920030 | [1] | SPACER | KOBWATER PUMP INR,T=35 |
| 10098. | VAMF522236 | [1] | SNAP RING | KOBWATER PUMP INR,62 |
| 10500. | VAME217160 | [1] | FAN | KOBCOOLING,545 |
| 10534. | VAME440029 | [1] | PULLEY | KOBCOOLING FAN |
| 10547. | VAME219003 | [1] | FAN | KOBSPACER. COOLING FAN,T=24 |
| 10547. | VAME440030 | [1] | SPACER. COOLING FAN,T=24 | |
| 10589. | VAMF404552 | [6] | STUD | KOBCOOLING FAN,10X40 |
| 10592B. | VAMH000835 | [4] | BOLT | KOBCOOLING FAN,FLANGE,10X60 |
| 10594. | VAMF434105 | [6] | NUT | KOBCOOLING FAN,FLANGE.10 |
