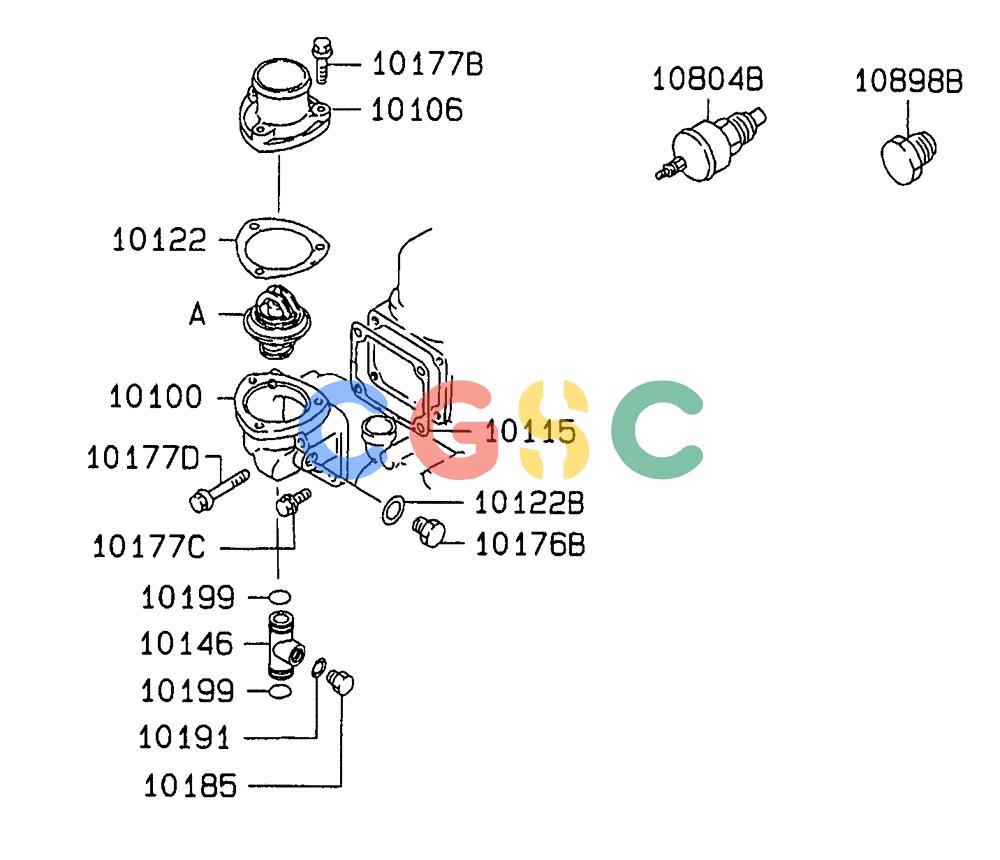

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-028 ) - WATER PIPE & THERMOSTAT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
599 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10100. | VAME080950 | [1] | CASE | KOBTHERMOSTAT,0203-1- |
| 10106. | VAME088721 | [1] | COVER | KOBTHERMOSTAT CASE,0203-1- |
| 10110. | VAME995106 | [1] | THERMOSTAT | KOBKIT,0203-1- |
| 10115. | VAME014498 | [1] | GASKET | KOBTHERMOSTAT CASE TO CYLINDER HEAD,0203-1- |
| 10122. | VAME014499 | [1] | GASKET | KOBTHERMOSTAT COVER,0203-1- |
| 10122B. | VAMF660066 | [1] | GASKET | KOBTHERMOSTAT COVER,0203-1- Superseded by part number: VAF420216000 |
| 10146. | VAME088920 | [1] | PIPE | KOBTHERMOSTAT WATER BY-PASS,0203-1- |
| 10176B. | VAM0001300 | [1] | PLUG | KOBTHERMOSTAT,0203-1-,SCREW,16 |
| 10177B. | VAMF140229 | [3] | BOLT | KOBTHERMOSTAT,0203-1-,FLANGE,8X30 |
| 10177C. | VAMH000714 | [2] | BOLT | KOBTHERMOSTAT,0203-1-,FLANGE.10X25 |
| 10177D. | VAMH000712 | [2] | SCREW | KOBTHERMOSTAT ,0203-1-,FLANGE,10X65 |
| 10185. | VAM0001300 | [1] | PLUG | KOBCOOLING WATER LUC,0203-1-,SCREW,16 |
| 10191. | VAMF660066 | [1] | GASKET | KOBCOOLING WATER LINE,0203-1-,16 Superseded by part number: VAF420216000 |
| 10199. | VAMH035680 | [2] | O-RING | KOBCOOLING WATER LINE,0203-1-,22.1 |
| 10804B. | VAME039860 | [1] | SWITCH,105.5 Degrees C | KOBUNIT, WATER TEMPERATURE,0203-1-,105"C |
| 10898B. | VA3124618702 | [1] | PLUG | KOBWATER TEMPERATURE GAUGE,0203-1-,16X17 Superseded by part number: 240292A1 |
