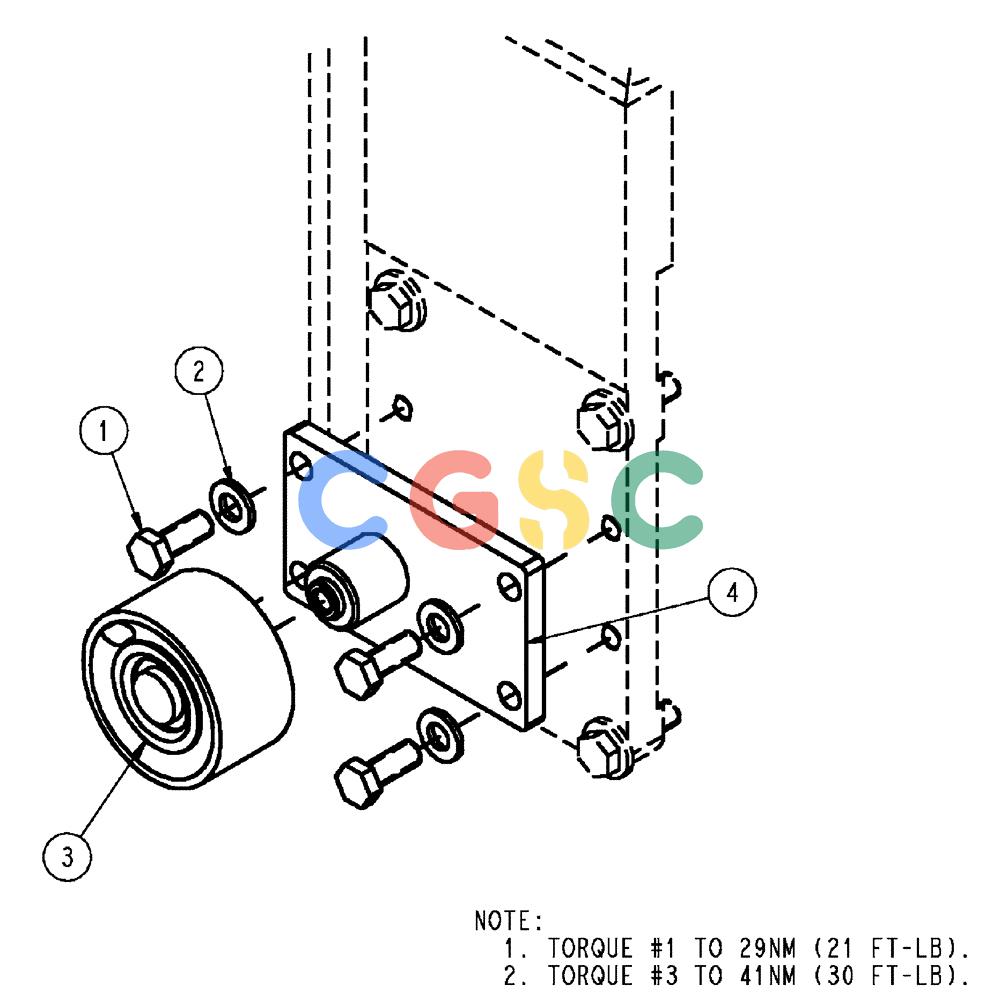

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 11106231 | [4] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 2. | 86625252 | [4] | WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk | FAR |
| 3. | A77817 | [1] | KIT | CAS Pulley Assembly, Belt Tension |
| 4. | 87269753 | [1] | BRACKET | BN Idler Pulley |
广数供应链运营团队, 15 02月, 2025，浏览： 794 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 11106231 | [4] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 2. | 86625252 | [4] | WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk | FAR |
| 3. | A77817 | [1] | KIT | CAS Pulley Assembly, Belt Tension |
| 4. | 87269753 | [1] | BRACKET | BN Idler Pulley |
