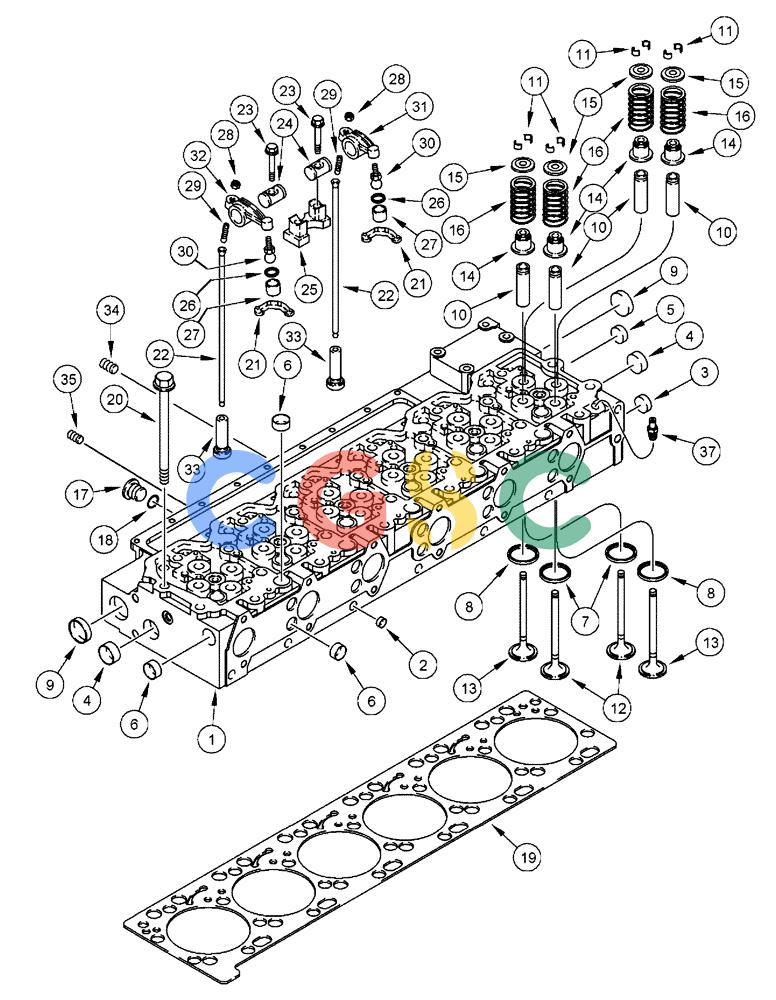

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (02-049) - CYLINDER HEAD AND VALVE MECHANISM, FLX 3510 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84181912
|
[1] |
HEAD
|
RAC
Assembly - Cylinder, With Valves Superseded by part number: 84181912R
|
| . . |
84181912R
|
[1] |
REMAN-CYLINDER HEAD
|
BRR
Assembly, with Valves
|
| . . |
84181912C
|
[1] |
CORE-CYLINDER HEAD
|
BRR
Return Part Number
|
| 1. |
84181967
|
[1] |
CYLINDER HEAD
|
BRR
Assembly, Without Valves Superseded by part number: 84181912R
|
| 2. |
A77552
|
[6] |
PLUG
|
IH
Expansion, 29/64" Diameter
|
| 3. |
J945093
|
[1] |
PLUG
|
CAS
Expansion, 10 MM OD
|
| 4. |
A77590
|
[2] |
PLUG
|
IH
Expansion, 28.7 mm od
|
| 5. |
J907555
|
[1] |
PLUG
|
CAS
Rocker Arm Shaft
|
| 6. |
J920706
|
[17] |
PLUG
|
CAS
Expansion, 22 MM OD
|
| 7. |
J940152
|
[12] |
INSERT
|
CAS
Intake Valve
|
| 8. |
J940153
|
[12] |
INSERT
|
CAS
Exhaust Valve
|
| 9. |
87344118
|
[2] |
PLUG
|
CAS
Expansion, 30 mm
|
| 10. |
87666373
|
[24] |
VALVE GUIDE
|
BUR
Stem
|
| 11. |
J900250
|
[48] |
SCREW
|
CAS
Keeper - Valve Superseded by part number: CASJ900250
|
| 12. |
J942588
|
[12] |
STD INLET VALVE
|
CAS
STD ENGINE INLET VALVE Intake
|
| 13. |
J942589
|
[12] |
STD EXHAUST VALVE
|
CAS
STD ENGINE EXHAUST VALVE
|
| 14. |
87352235
|
[24] |
SEAL
|
CAS
Valve Stem
|
| 15. |
J944452
|
[24] |
RETAINER
|
CAS
|
| 16. |
87666321
|
[24] |
VALVE SPRING
|
RAC
|
| 17. |
J678923
|
[1] |
PLUG,M10 x 1
|
CAS
Hex Socket, 10 MM
|
| 18. |
86625087
|
[1] |
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
|
FAR
|
| 19. |
J943366
|
[1] |
CYLINDER HEAD GASKET,2.11mm Thk
|
CAS
Standard
|
| 20. |
87344126
|
[26] |
BOLT
|
CAS
M14 x 160
|
| 21. |
J943445
|
[12] |
CROSSBAR
|
CAS
Crosshead
|
| 22. |
J944178
|
[12] |
PUSH ROD
|
CAS
|
| 23. |
J943933
|
[12] |
SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9
|
CAS
Hex Flange Head, 10-1.5 X 68 MM, Class 10.9 Superseded by part number: J943933AM
|
| 24. |
J941137
|
[12] |
SHAFT
|
CAS
Rocker Arm
|
| 25. |
J941140
|
[6] |
SUPPORT
|
CAS
Rocker Arm
|
| . . |
J942748
|
[6] |
ROCKER ARM
|
CAS
Assembly, Intake
|
| . . |
J942749
|
[6] |
ROCKER ARM
|
CAS
Assembly, Exhaust
|
| 26. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Clip - Retaining, Wire
|
| 28. |
A77902
|
[1] |
NUT
|
CAS
Special, 3/8"-24, Heavy, Type 8
|
| 29. |
J991067
|
[1] |
ADJUSTMENT SCREW,3/8" - 24 x 27.58mm
|
RAC
Rocker Arm Adjusting Superseded by part number: 87495541
|
| 33. |
87422747
|
[12] |
TAPPET
|
BRR
Valve Superseded by part number: 87428157
|
| 34. |
263136
|
[1] |
MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF
|
NH
PLUG, MAGNETIC
|
| 35. |
444704
|
[1] |
PLUG,Hex Soc, 1/2"-14
|
CAS
Superseded by part number: 87034671
|
| 36. |
9617020
|
[1] |
PLUG,1/4" - 18 x 0.48"
|
NH
|
| 37. |
J943670
|
[1] |
FITTING
|
CAS
Orifice
|
