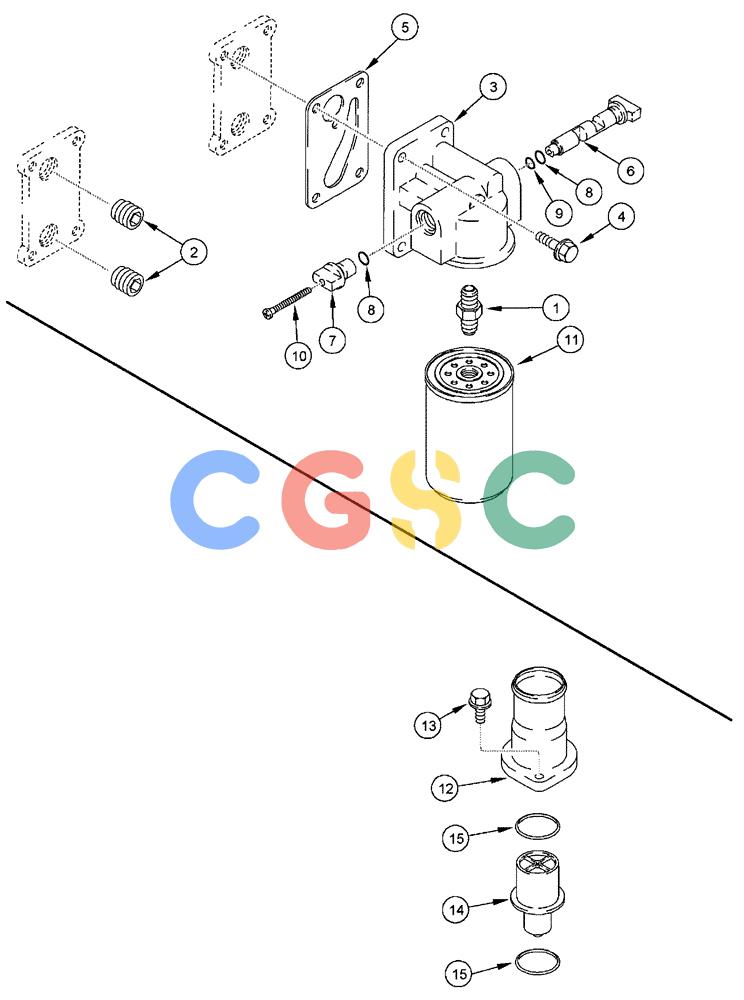

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (02-050) - COOLANT FILTER - THERMOSTAT, FLX 3010 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
922 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
A77623
|
[1] |
ADAPTER,3/4" - 10 x 11/16" - 16
|
IH
Filter Head
|
| 2. |
263136
|
[2] |
MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF
|
NH
PLUG, MAGNETIC
|
| 3. |
84152589
|
[1] |
FILTER HEAD
|
RAC
CORR. RESISTOR
|
| . . |
84152565
|
[1] |
FILTER HEAD
|
BRR
Complete, Includes Ref. 1, 3, 6, 7, 8, 9, 10 Superseded by part number: 84152565AM
|
| 4. |
845-8025
|
[4] |
BOLT,Hex Flg, M8 x 25mm, Cl 8.8
|
CAS
|
| 5. |
87612306
|
[1] |
GASKET,1.15mm Thk
|
BRR
Coolant Filter/Conditioner
|
| 6. |
84153012
|
[1] |
SHUT-OFF VALVE
|
RAC
Shaft
|
| 7. |
J943740
|
[1] |
SHUT-OFF VALVE
|
CAS
|
| 8. |
84153040
|
[2] |
O-RING,0.103" Width
|
RAC
|
| 9. |
84153053
|
[1] |
O-RING,0.426" ID x 0.566" OD x 0.07"
|
RAC
|
| 10. |
84152982
|
[1] |
SELF-TAP SCREW
|
RAC
Plastic
|
| 11. |
J100304
|
[1] |
FILTER
|
CAS
Water Conditioning, Precharge Superseded by part number: 84605017
|
| 12. |
J944429
|
[1] |
OUTLET
|
CAS
CONNECTOR
|
| 14. |
J940632
|
[1] |
THERMOSTAT
|
CAS
Superseded by part number: 84427136
|
| 15. |
238-5227
|
[2] |
O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro
|
CAS
Superseded by part number: 510121
|
