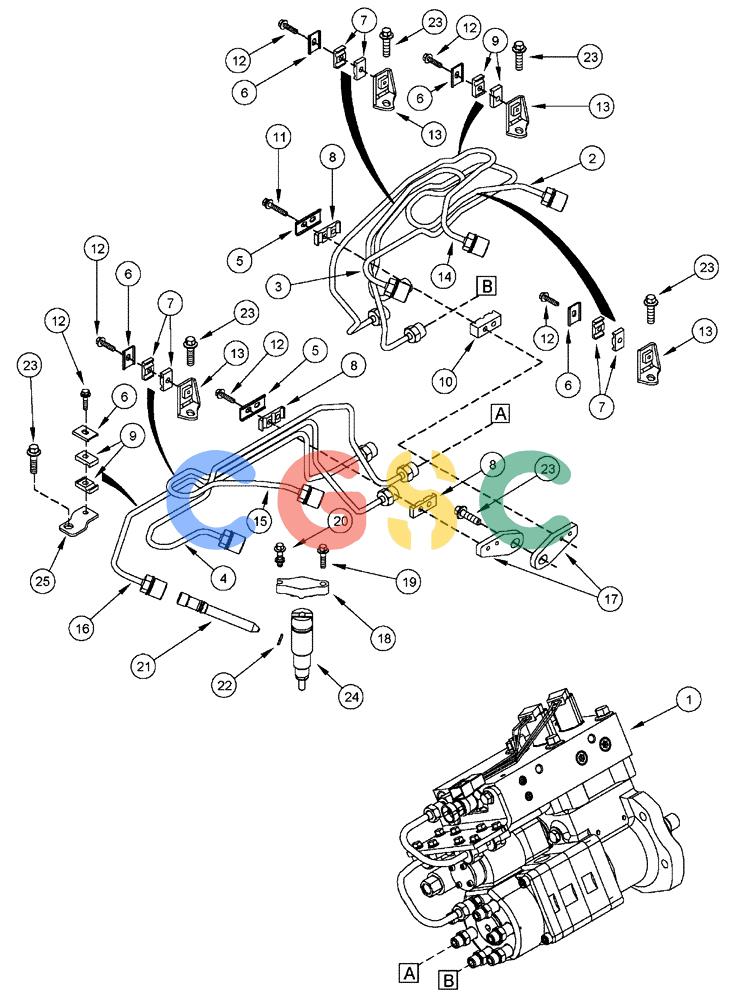

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (02-073) - FUEL INJECTION SYSTEM, FLX 3010 & FLX 3510 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
REF
|
[1] |
INSTRUCTION
|
NH
Pump Assembly - Fuel Injection
|
| 1. |
87441514C
|
[1] |
CORE-FUEL INJECTOR
|
MKT
CORE - ICV Pump - Return number - For N.A. only
|
| 2. |
J944686
|
[1] |
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L
|
CAS
#1
|
| 3. |
J944690
|
[1] |
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L
|
CAS
#3
|
| 4. |
J944694
|
[1] |
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L
|
CAS
#5
|
| 5. |
J904519
|
[2] |
SUPPORT
|
IH
Brace - Tube Retaining
|
| 6. |
CURJ904711
|
[5] |
CLAMP
|
CUR
fuel tube
|
| 7. |
J917746
|
[6] |
CLAMP
|
CAS
Fuel Tube
|
| 8. |
J917747
|
[3] |
CLAMP
|
CAS
Fuel Tube
|
| 9. |
J919359
|
[4] |
CLAMP
|
CAS
Vibration
|
| 10. |
J944699
|
[1] |
CLAMP
|
CAS
|
| 11. |
J944717
|
[1] |
CAPTIVE WASHER SCREW
|
CAS
|
| 12. |
J920854
|
[7] |
CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8
|
CAS
|
| 13. |
J930688
|
[4] |
SUPPORT
|
CAS
Bracket - Fuel Tube
|
| 14. |
J944688
|
[1] |
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L
|
CAS
#2
|
| 15. |
J944692
|
[1] |
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L
|
CAS
#4
|
| 16. |
J944696
|
[1] |
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L
|
CAS
#6
|
| 17. |
J944698
|
[2] |
SUPPORT
|
CAS
Brace
|
| 18. |
J940639
|
[6] |
CLAMP
|
CAS
|
| 19. |
9804257
|
[6] |
FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 20. |
J940817
|
[6] |
SCREW,Hex Flg, M6 x 1 x 25mm
|
CAS
Superseded by part number: J940817AM
|
| 21. |
J936953
|
[6] |
FITTING
|
CAS
CONNECTOR Superseded by part number: J944833, J867043
|
| 22. |
J867043
|
[1] |
SEAL,1.78mm Thk x 10.82mm ID
|
CAS
|
| 23. |
9804260
|
[6] |
BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8
|
NH
|
| 25. |
J943503
|
[1] |
SUPPORT
|
CAS
Brace
|
