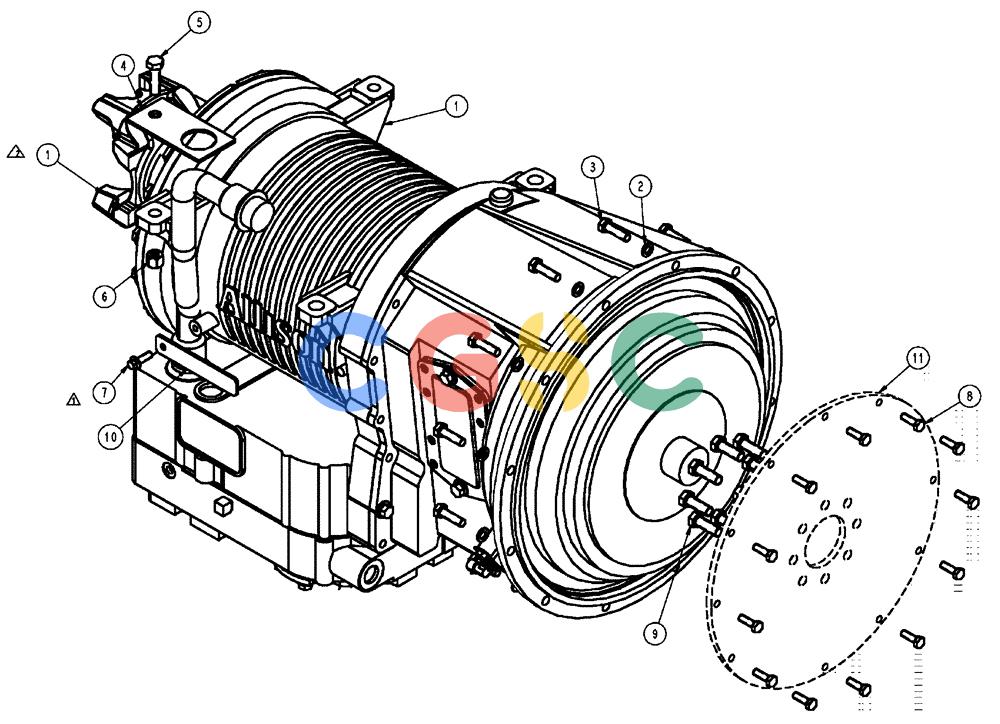

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (03-002) - TRANSMISSION GROUP, FLX 3510 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
190 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87269752
|
[1] |
TRANSMISSION
|
BN
3000RDS, CDC 350, Start Serial: 6279
|
| . . |
87743577
|
[1] |
SERVICE KIT
|
BN
High Capacity Filter, Allison 295489
|
| . . |
BN306289
|
[1] |
SENSOR
|
BN
Transmission, Input/Output
|
| . . |
BN2402071- 005
|
[1] |
Transmission Fluid
|
|
| . . |
87269201
|
[1] |
GEARSHIFT
|
BN
Selector, Push Button
|
| . . |
BN305692
|
[1] |
BOX
|
BN
Relay
|
| . . |
87269198
|
[1] |
YOKE
|
BN
41 Tooth Internal Spline,Drive, Transmission
|
| . . |
BN307662
|
[1] |
YOKE
|
BN
43 Tooth Internal Spline, Used on Early Production 3010 / 3510
|
| . . |
BN306282
|
[1] |
CONTROL UNIT
|
BN
Transmission ECU, MD3066/2100RPM
|
| 2. |
86625251
|
[12] |
WASHER,10.5mm ID x 18mm OD x 1.6mm Thk
|
FAR
|
| 3. |
9706704
|
[12] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
| 4. |
BN7146462
|
[1] |
MOUNT
|
BN
Sheet, MD Harness Support
|
| 5. |
86629541
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 6. |
100038
|
[1] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 7. |
87016557
|
[1] |
SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm
|
RAC
|
| 8. |
43234
|
[12] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
|
NH
|
| 9. |
86642438
|
[8] |
BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd
|
FAR
|
| 10. |
BN315282
|
[1] |
PLATE
|
BN
Transmision Harness
|
| 11. |
BN317598
|
[1] |
REPAIR KIT
|
BN
Plate, Flex, Case 3060
|
| . . |
BN317599
|
[1] |
RING GEAR
|
BN
Assembly, Case
|
