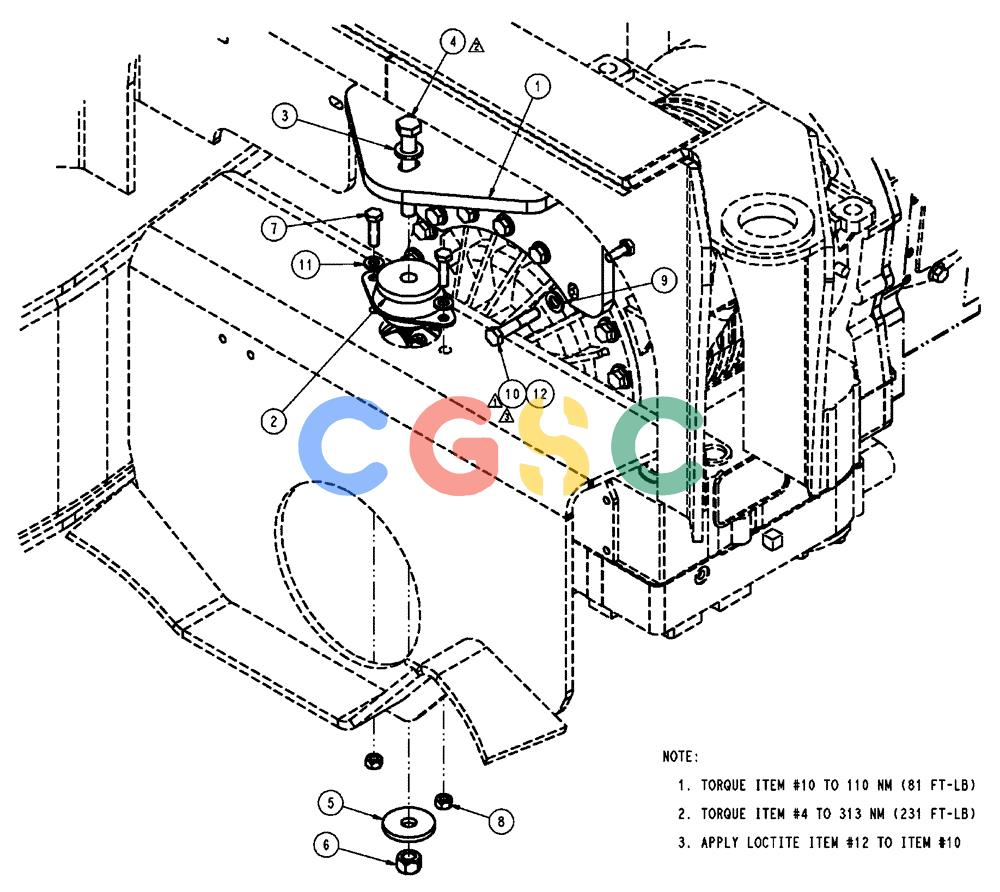

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (03-008) - TRANSMISSION MOUNTING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
532 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
342547A1
|
[1] |
PLATE
|
BN
transmission hanger
|
| 2. |
BN306728
|
[1] |
ENGINE MOUNT
|
BN
|
| 3. |
86625266
|
[1] |
WASHER,17.5mm ID x 30mm OD x 4mm Thk
|
GI
|
| 4. |
84036080
|
[1] |
BOLT,Hex, M16 x 110mm, Cl 10.9
|
RAC
|
| 5. |
BN308164
|
[1] |
WASHER
|
BN
Rebound
|
| 6. |
86512555
|
[1] |
NUT,M16 x 2, Cl 10
|
FOR
|
| 7. |
86980401
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
BN
|
| 8. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 9. |
86625255
|
[5] |
WASHER,13.3mm ID x 24.5mm OD x 3mm Thk
|
GI
|
| 10. |
9706693
|
[5] |
BOLT,M12 x 60mm, Cl 8.8
|
NH
|
| 11. |
86625252
|
[2] |
WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk
|
FAR
|
| 12. |
ZPX24236
|
[1] |
SEALANT, THREAD
|
MKT
Loctite - #242
|
