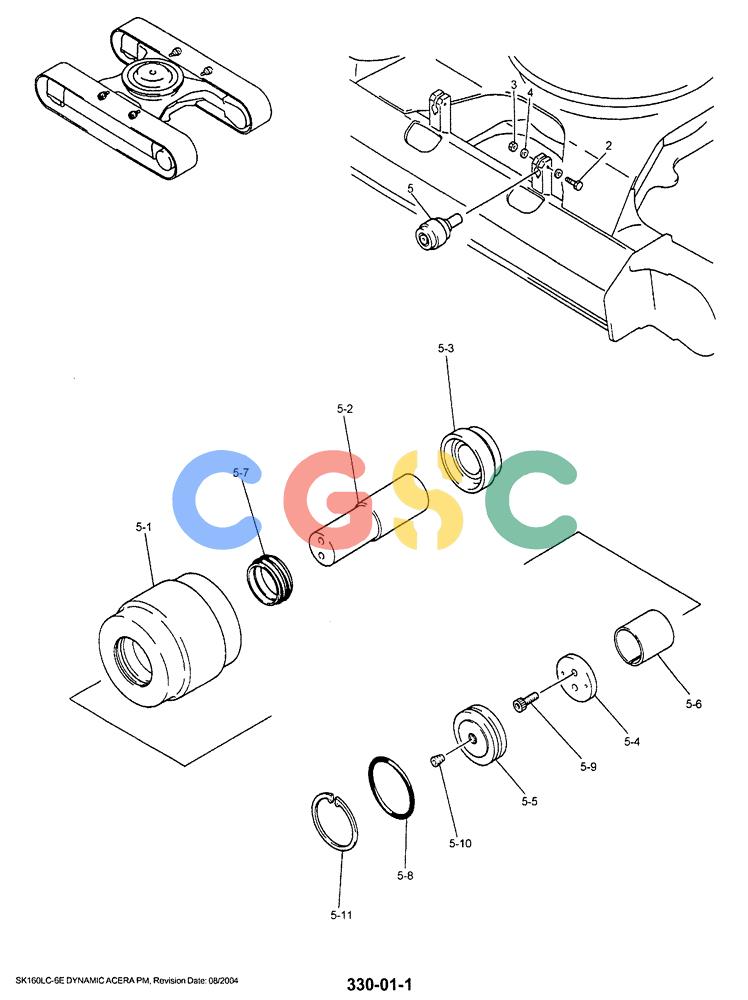

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (02-007) - UPPER ROLLER ASSEMBLY, P/N YN64D00007F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
313 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | YN64D01012P1 | [4] | CAP | KOBScrew -- M20x2.50x100mm Superseded by part number: ZS18C20100 |
| 3. | ZN13C20016 | [4] | NUT | KOBM20x2.50mm |
| 4. | ZW13H20000 | [4] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 5. | YN64D01013F1 | [4] | ROLLER | KOB Superseded by part number: YN64D01120F1 |
| 5-1. | 2413N469 | [1] | ROLLER | KOB |
| 5-2. | YN64D01014P1 | [1] | SHAFT | KOB Superseded by part number: YN64D01144F1 |
| 5-3. | 2418P21176 | [1] | COLLAR | KOB Superseded by part number: 2418P22958 |
| 5-4. | YN64D01038P1 | [1] | PLATE | KOBPLATE |
| 5-5. | 2414P7550 | [1] | COVER | KOB Superseded by part number: YN64D01026P1 |
| 5-6. | 2405T852 | [1] | BUSHING,45mm ID x 50mm OD x 50mm L | KOBID 45 x OD 50 x 50mm Long |
| 5-7. | 2445R361F1 | [1] | SEAL,48mm ID x 68.6mm OD x 27mm Thk | KOB |
| 5-8. | ZD11P06500 | [1] | O-RING | KOBID 64.6 ± 0.57 x OD 75mm |
| 5-9. | YN64D01016P1 | [2] | BOLT | KOBM12x1.75x28mm |
| 5-10. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 5-11. | ZR26X07500 | [1] | RING | KOBRetaining -- ID 75 x OD 79.5 x Th 2.5mm |
