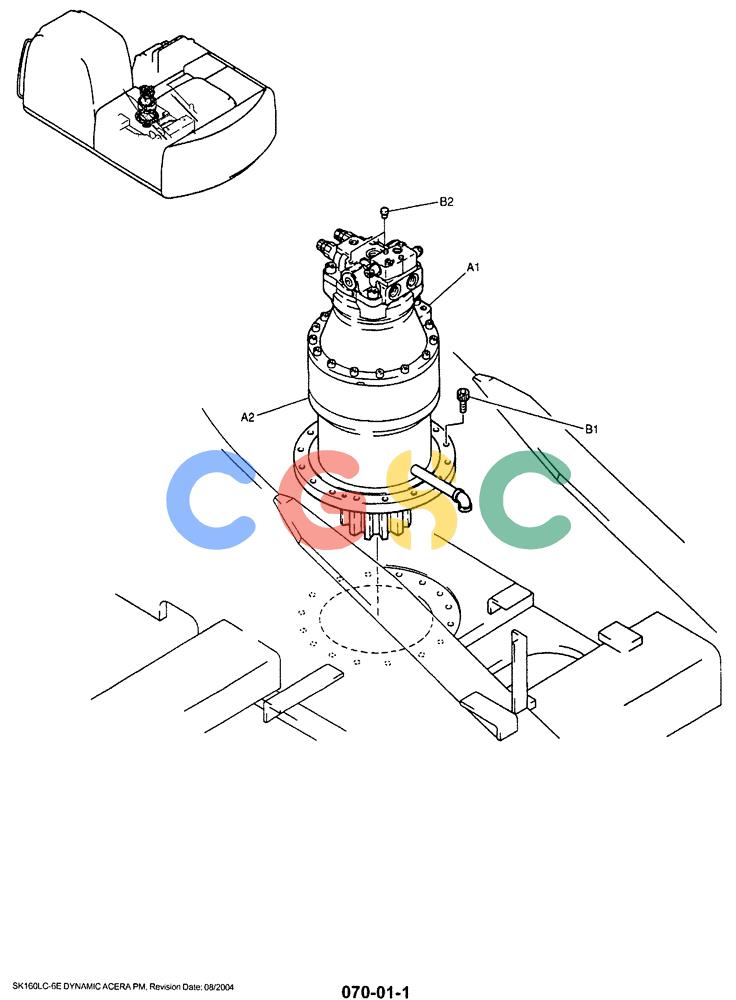

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-014) - SWING MOTOR INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONSWING MOTOR INSTAL |
| . . | YM15V00003F1 | [1] | HYDRAULIC MOTOR | KOB& REDUCTION UNIT (REPLACED BY YM15V00003F2) Superseded by part number: YM15V00003F2 |
| . . | YM15V00003F2 | [1] | HYDRAULIC MOTOR | KOB& REDUCTION UNIT |
| . . | YN15V00025F1 | [1] | HYDRAULIC MOTOR | KOB(REPLACED BY YN15V00025F4) Superseded by part number: YN15V00025F4 |
| A1. | YN15V00025F4 | [1] | HYDRAULIC MOTOR,121.6CC | KOBASSY, SWING |
| A2. | YM32W00001F1 | [1] | REDUCER | KOB |
| . . | YM32W00002F1 | [1] | HYDRAULIC MOTOR | KOBINSTAL, SWING |
| B1. | ZS13C20055 | [12] | SCREW | KOBScrew -- M20x2.50x55mm |
| B2. | PV02B01073D3 | [2] | CAP | KOB10.7mm Plastic Superseded by part number: YN64H01391D1 |
