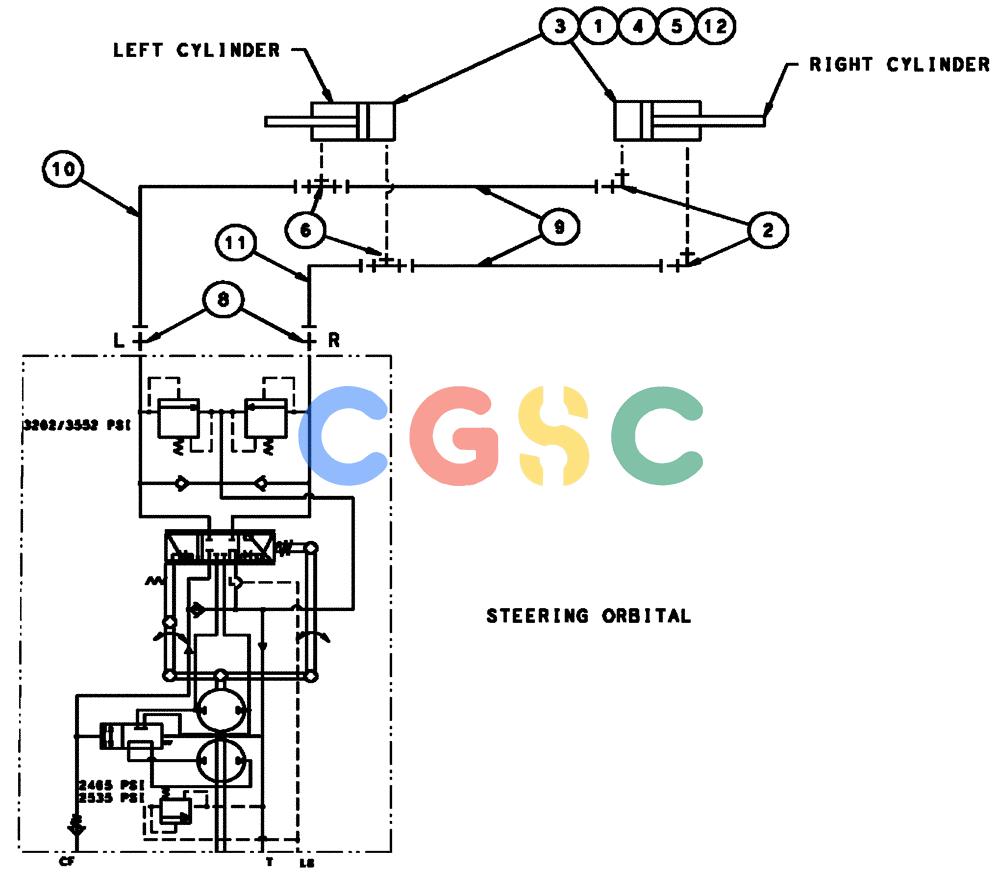

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (06-006[02]) - HYDRAULIC STEERING GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87393916
|
[4] |
BOLT
|
BN
Steering, 1"-8, DOR
|
| 2. |
BN302553
|
[2] |
ELBOW
|
BN
11/16-16 ORFS x 9/16-18 ORB
|
| 2A. |
237-6006
|
[2] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
CAS
Superseded by part number: 9617873
|
| 2B. |
9993141
|
[2] |
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
|
BAS
|
| 3. |
344003A1
|
[2] |
CYLINDER,Double Acting, 25.4mm Rod, 304.8mm Stroke
|
BN
hydraulic, 2.00 x 12 x 1.00
|
| 4. |
87343900
|
[2] |
SLOTTED NUT
|
BN
Hex, 1"-8, G5
|
| 5. |
86632592
|
[6] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
FOR
|
| 6. |
BN302536
|
[2] |
FITTING
|
BN
6Mor-6Mb X -6Mor
|
| 8. |
BN302650
|
[2] |
FITTING
|
BN
8 MOR-8 MB
|
| 9. |
BN307804
|
[2] |
HOSE ASSY.
|
BN
Assembly
|
| 10. |
344284A1
|
[1] |
HOSE
|
BN
8 x 138"
|
| 11. |
344394A1
|
[1] |
HOSE
|
BN
8 X 128"
|
| 12. |
BN50601
|
[4] |
PIN, SPLIT (COTTER)
|
BN
PIN, COTTER 3/16 X 2"
|
