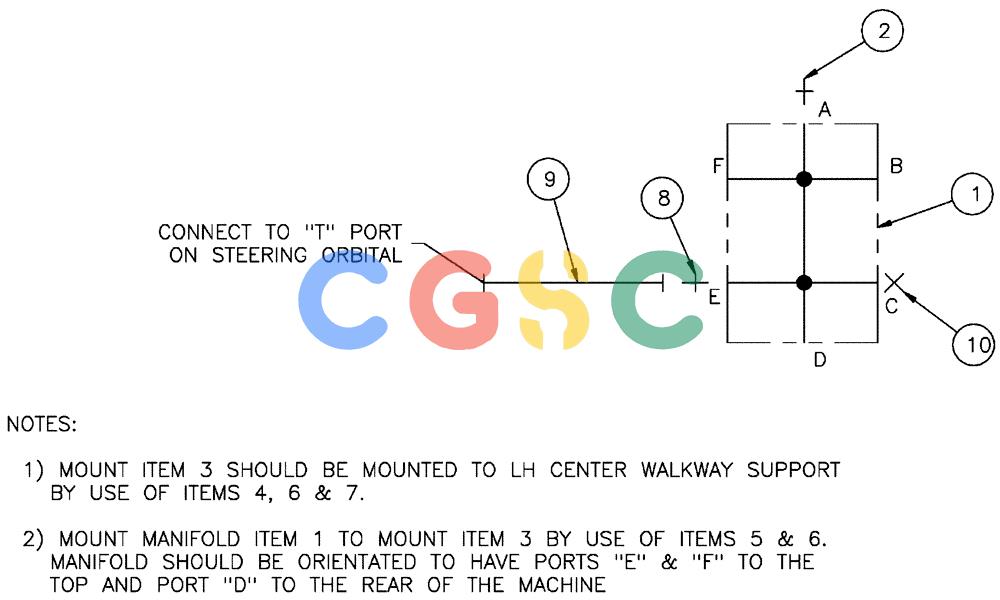

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (06-010) - HYDRAULIC MANIFOLD GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
664 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN302877
|
[1] |
MANIFOLD
|
BN
Oil Return
|
| 2. |
BN305058
|
[1] |
FITTING
|
BN
20Mor-24Mb
|
| 3. |
BN324125
|
[1] |
BRACKET, SUPPORTING
|
BN
Mount, Oil Manifold
|
| 4. |
43128
|
[4] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 5. |
814-8080
|
[2] |
BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8
|
CAS
Superseded by part number: 43133
|
| 6. |
86528579
|
[6] |
NUT,M8 x 1.25
|
WIN
|
| 7. |
86624184
|
[4] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 8. |
BN302650
|
[1] |
FITTING
|
BN
8 MOR-8 MB
|
| 9. |
342819A1
|
[1] |
HOSE
|
BN
8 x 75"
|
| 10. |
BN446025
|
[1] |
PLUG
|
BN
Hex O-Ring, 3/4-16
|
