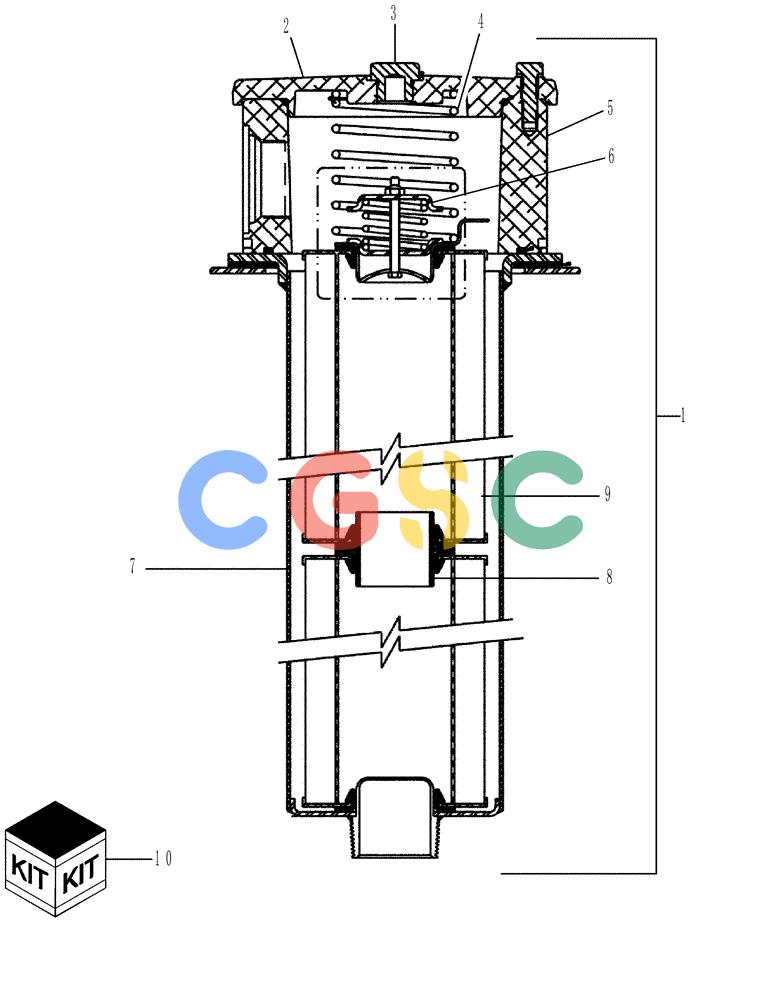

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (06-009[02]) - HYDRAULIC TANK FILTER, SHORT, SN Y6T020477 AND AFTER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
186 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87267809
|
[1] |
HYDRAULIC OIL FILTER
|
BN
In-Tank
|
| 2. |
87272027
|
[1] |
CAP
|
BN
W/ Fill Port
|
| 3. |
214389
|
[1] |
PLUG,3/4" - 16 ORB
|
NH
|
| 4. |
87272028
|
[1] |
SPRING
|
BN
Compression
|
| 5. |
87272030
|
[1] |
FILTER HEAD
|
BN
|
| 6. |
87272029
|
[1] |
FILTER ASSY
|
BN
By-Pass Assembly, Oil
|
| 7. |
87270357
|
[1] |
FILTER BOWL
|
BN
Housing
|
| 8. |
87270366
|
[1] |
SPACER
|
BN
Filter Element
|
| 9. |
87272033
|
[2] |
ELEMENT
|
A
Oil Filter
|
| 10. |
87272032
|
[1] |
SEAL KIT
|
BN
Buna, Oil Filter
|
