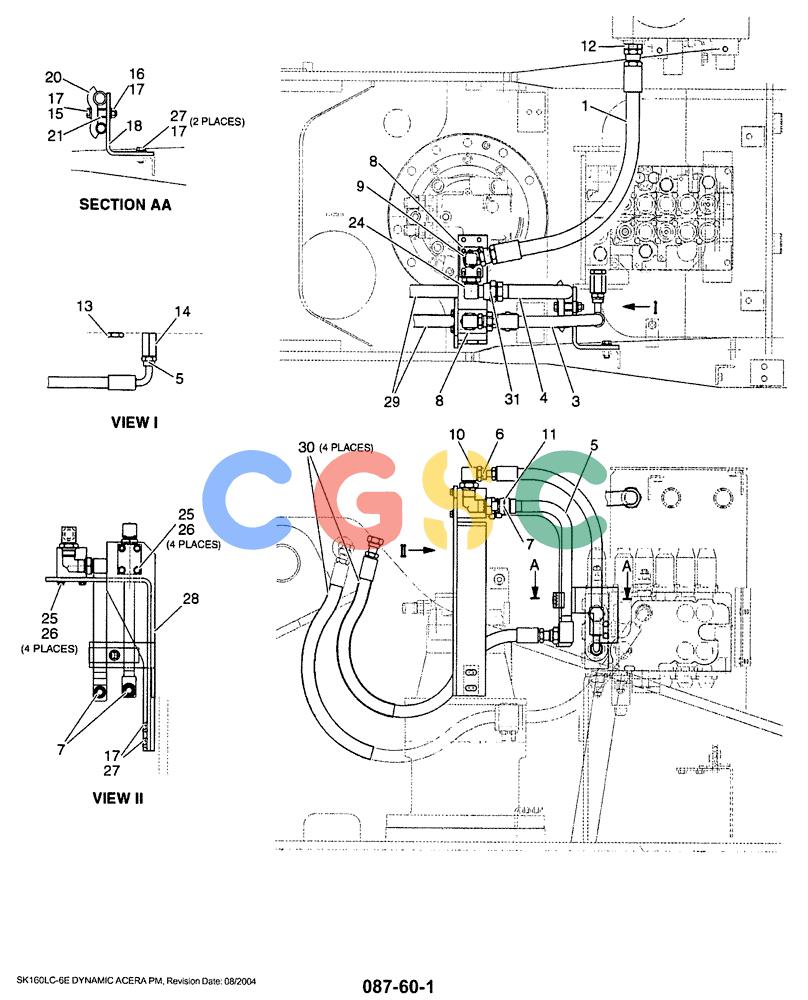

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-021) - HYD LINES, UPPER (1 WAY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
990 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2444Z3722D4 | [1] | HOSE | KOB(1" PF) 800mm Long (31-1/2 in) |
| 3. | ZX30H10066 | [1] | HOSE | KOB1/4UNS L=660mm |
| 4. | YM03H01042P1 | [1] | TUBE | KOB1 3/16-12UN; 1 7/16-12UN |
| 5. | YM03H01015P1 | [1] | TUBE | KOB1 3/16-12UN |
| 6. | ZD12A01600 | [2] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| 7. | ZD12A01800 | [3] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 8. | YN03H01489P1 | [2] | BLOCK | KOBPF1 |
| 9. | HH35X16016G1 | [1] | 90 ELBOW | KOB90° -- (Incls. O-Ring ZD12P02900) |
| 10. | HG33F10016G1 | [1] | ELBOW | KOB90° -- (Incls. O-Ring ZD12P02900) 56mm Long |
| 11. | HG23H12016G1 | [1] | HYD CONNECTOR | KOB1 3/16"-12UN-PF1" Superseded by part number: YW03H01227P1 |
| 12. | 2444Z2760 | [1] | HYD CONNECTOR | KOB1" PFx56.5mm Long (Incls. O-Ring ZD12P02900) |
| 13. | ZE72X12000 | [1] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400) |
| 14. | HG24F10012G3 | [1] | HYD CONNECTOR | KOB1"-14UNS - 3/4"PT x 90mm Long (Incls. O-Ring ZD12P02400) |
| 15. | ZS18C12065 | [1] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 16. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 17. | ZW16H12000 | [6] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 18. | YM03H01043P1 | [1] | SUPPORT | KOB |
| 20. | 2432T2434 | [1] | CLAMP | KOBDouble Line -- 129x38x15mm (Ø29xØ36mm) |
| 21. | YN02B01031D2 | [1] | SPACER | KOB |
| 24. | HG33H16016G1 | [1] | ELBOW | KOB1 7/16-PF1 |
| 25. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 26. | ZW16H08000 | [8] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 27. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 28. | YM03H01041P2 | [1] | BRACKET | KOB Superseded by part number: YM03H01065P1 |
| 29. | ZX20H12105 | [2] | HOSE | KOB1 3/16-12UN, 1050mm Long (41-21/64 in) |
| 30. | 2414Z199D100 | [4] | PROTECTIVE SLEEVE | KOBHose -- 1000mm Long (39-3/8 in) |
| 31. | ZD12A02100 | [1] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
