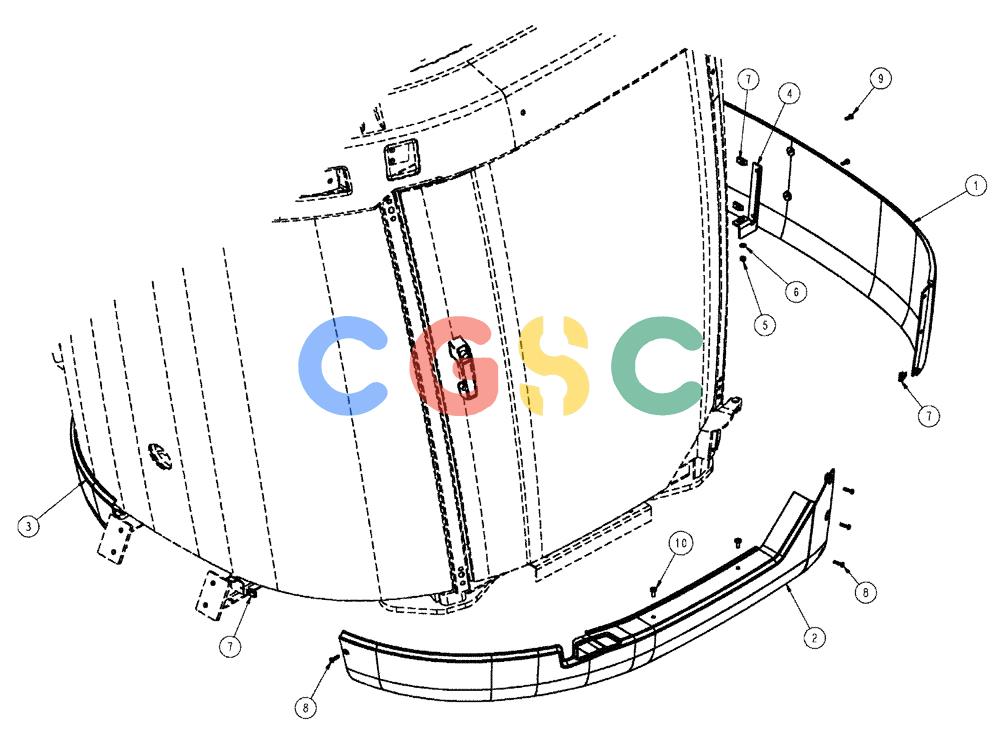

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (01-005) - CAB SKIRT GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
341236A3
|
[1] |
SKIRT
|
CAS
rear
|
| 2. |
BN323563
|
[1] |
SKIRT
|
BN
Cab, LH
|
| 3. |
87357991
|
[1] |
SKIRT COVER
|
FAR
cab, RH
|
| 4. |
341574A3
|
[1] |
BRACKET
|
CAS
Skirt Superseded by part number: 341574A4
|
| 5. |
86528579
|
[1] |
NUT,M8 x 1.25
|
WIN
|
| 6. |
86624184
|
[1] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 7. |
404882A1
|
[6] |
SPRING NUT,M6
|
CAS
nut, M6 spring, wide range
|
| 8. |
86511831
|
[8] |
SCREW,Phillips Drive, Pan HD, M6 x 25mm
|
ZED
|
| 9. |
86511830
|
[2] |
SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8
|
ZED
|
| 10. |
840-2820
|
[4] |
SCREW,Pan, M8 x 20mm, Cl 4.8
|
CAS
Superseded by part number: 86585703
|
