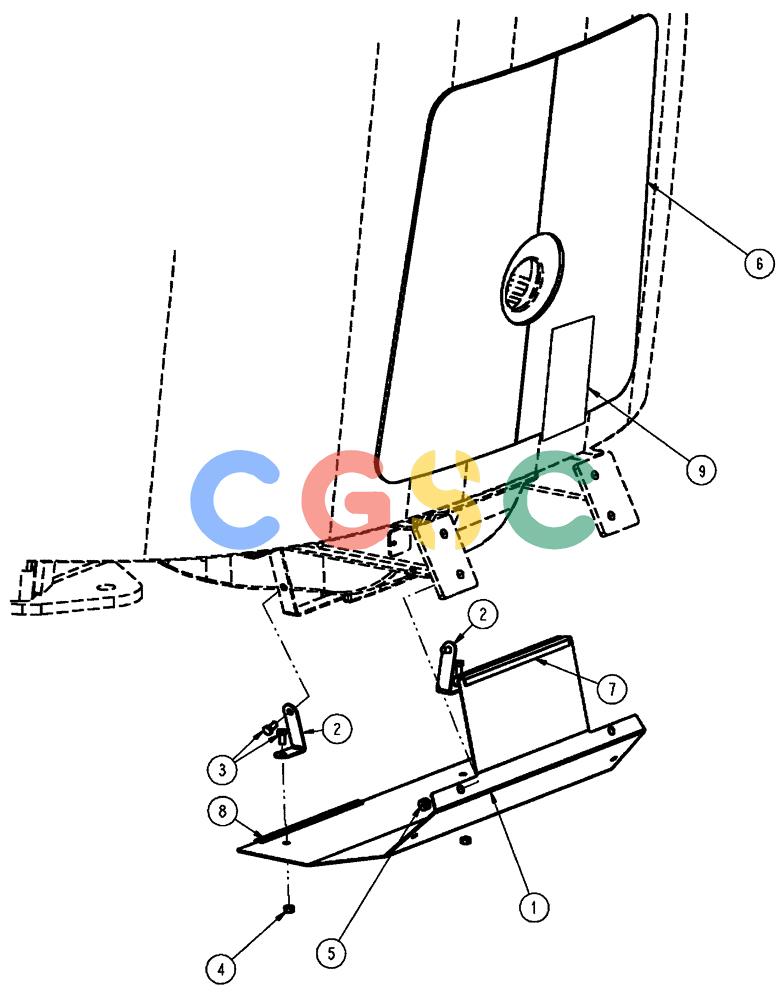

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (01-006) - HEAT SHIELD GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
472 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87266957
|
[1] |
DEFLECTOR
|
BN
Cab Skirt
|
| 2. |
342423A1
|
[2] |
BRACKET, SUPPORTING
|
BN
mount, heat shield
|
| 3. |
16043224
|
[4] |
BOLT,Hex, M8 x 16mm, Cl 8.8
|
NH
|
| 4. |
86528579
|
[2] |
NUT,M8 x 1.25
|
WIN
|
| 5. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 6. |
87266635
|
[1] |
FOAM INSULATION
|
BN
Cab, Reflect
|
| 7. |
87266958
|
[1] |
RUBBER SEAL
|
BN
Clip On, Rubber
|
| 8. |
BN303902
|
[1] |
SOFT TRIM
|
BN
Edge, 9 3/4"
|
| 9. |
87265531
|
[8] |
TAPE
|
BN
Foil, 2"
|
