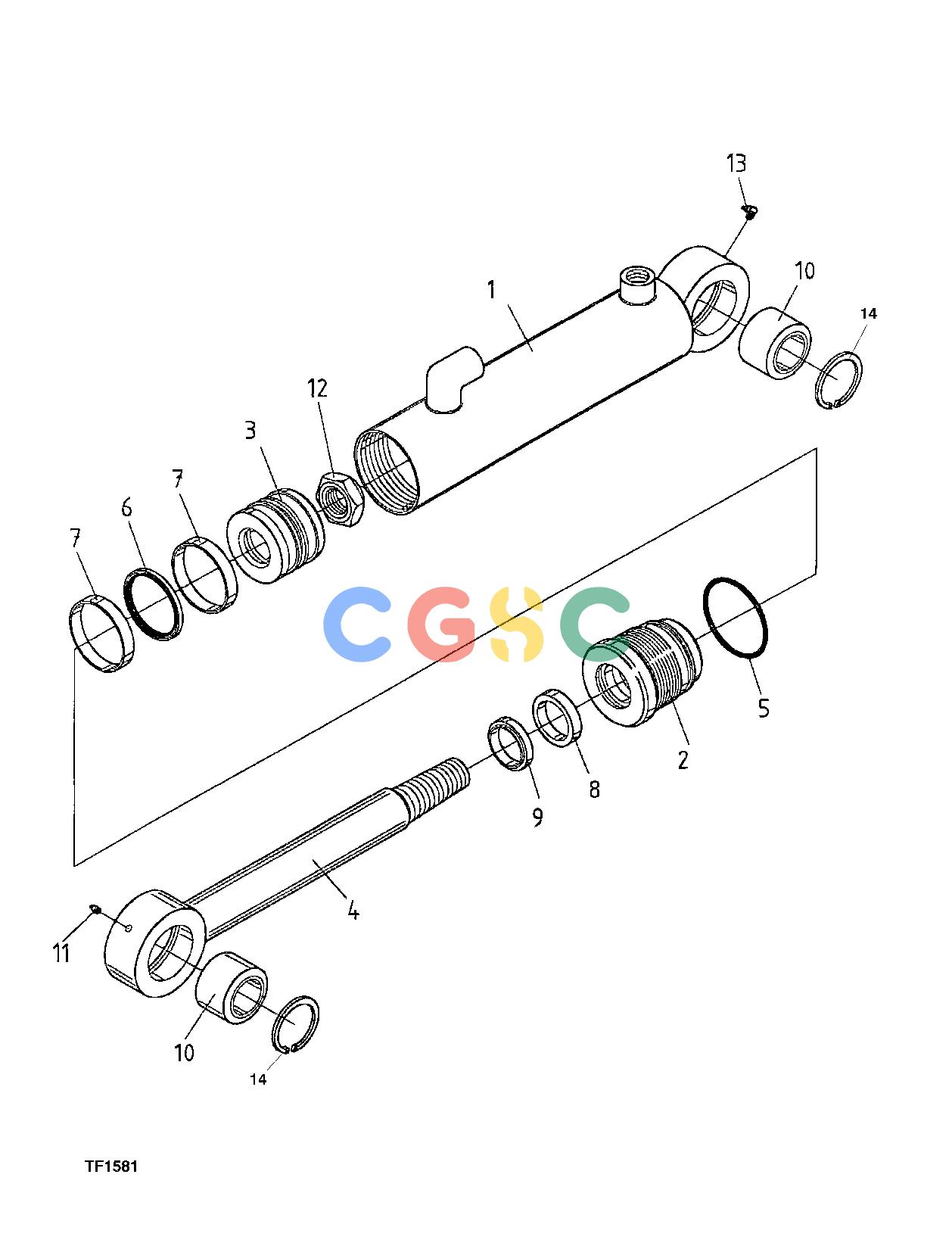

约翰迪尔零件查询758 ATT - ATTACHMENTS ENGINE CYLINDER, FELLING DEVICE F056078 11 32.1 TF1581 [TF1581]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
520 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F058146
|
[1] |
CYLINDER ASSY
|
|
| 1. |
F058147
|
[1] |
CYLINDER TUBE
|
|
| 2. |
F047889
|
[1] |
PISTON GUIDE
|
|
| 3. |
F058148
|
[1] |
Piston
|
|
| 4. |
F058149
|
[1] |
PISTON ROD
|
|
| 5. |
F047891
|
[1] |
O-Ring
|
|
| 6. |
F047890
|
[1] |
SEAL RING
|
|
| 7. |
F047893
|
[2] |
GUIDE RING
|
|
| 8. |
F015739
|
[1] |
SEAL RING
|
|
| 9. |
F007653
|
[1] |
Scraper
|
|
| 10. |
F003818
|
[2] |
SPHERICAL BEARING
|
|
| 11. |
F003727
|
[1] |
GREASE NIPPLE
|
|
| 12. |
F003570
|
[1] |
Nut
|
|
| 13. |
F023581
|
[1] |
GREASE NIPPLE
|
|
| 14. |
F003370
|
[2] |
CIRCLIP
|
|
| |
F047894
|
[1] |
Seal Kit
|
|
