神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-032[01]) - CONTROL LINES - VALVE, P/N YM64H00028F1, F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
497 次

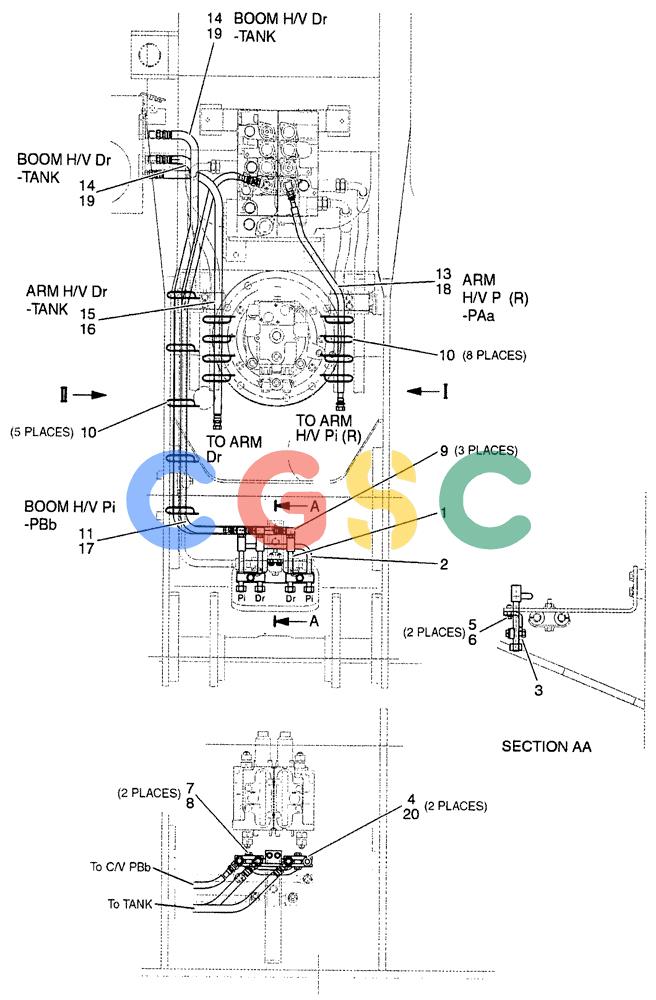

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONCONTROL LINES - VALVE |
| . . | YM64H00028F1 | [1] | CONTROL LINES, VALVE (BOOM SAFETY) | |
| . . | YM64H00028F2 | [1] | CONTROL BLOCK | KOBCONTROL LINES, VALVE (BOOM ARM SAFETY) |
| 1. | LC06H01002P1 | [1] | TUBE | KOB |
| 2. | LC06H01003P1 | [1] | TUBE | KOB |
| 3. | YN64H01185P1 | [1] | SUPPORT | KOBSUPPORT |
| 4. | 2432T2340 | [2] | CLAMP | KOB |
| 5. | ZS18C08030 | [2] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| 6. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 7. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 8. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 9. | ZH32X06000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 10. | PY01P01043D6 | [5] | CABLE TIE,4.80mm W x 383mm L | KOBWire Ties -- 368mm Long, FOR F1 Only |
| 11. | 2420R537D150 | [1] | FLEXIBLE HOSE,9.60mm ID x 1500mm L | KOB3/8" PF, 1500mm Long (59-1/16 in) Superseded by part number: HX21E06150DX |
| 13. | 2420R537D190 | [1] | FLEXIBLE HOSE,9.60mm ID x 1900mm L | KOBPF3/8 1900mm Long (74-13/16 in), FOR F2 ONLY Superseded by part number: HX21E06190DX |
| 14. | 2444R1119D180 | [2] | HOSE | KOBPF3/8, 1800mm Long (70-7/8 in) |
| 15. | 2444R1119D165 | [1] | FLEXIBLE HOSE | KOBHOSE, PF3/8-L=1650mm FOR F2 ONLY |
| 16. | 2418Z1333D12 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1500mm Length | KOBProtective Plastic, FOR F2 ONLY |
| 17. | PU13E01010DL | [1] | TUBE | KOBID 15.2 x OD 19.5 x 1200mm Long |
| 18. | PU13E01010DB | [1] | RIGID TUBE | KOBID 15.2 x OD 19.5 x 1800mm Long, FOR F2 ONLY |
| 19. | 2418Z1333D10 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1700mm Length | KOBProtective Plastic |
| 20. | YN02B01031DB | [2] | SPACER | KOBSPACER |
