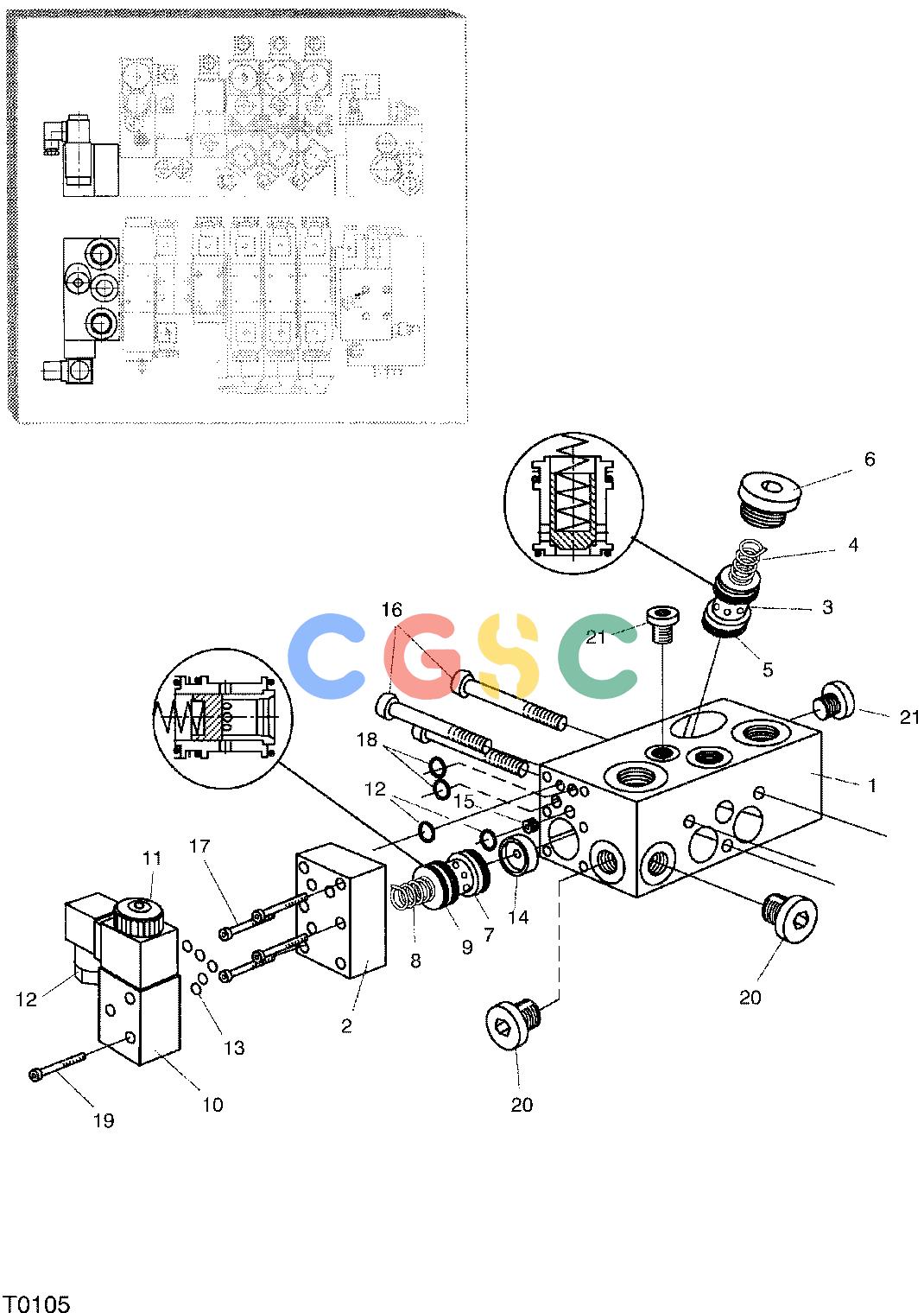

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE VALVE BLOCK SECTION F042683 11 18 T0105 [T0105]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
216 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F040065
|
[1] |
VALVE BLOCK
|
|
| 1. |
F018782
|
[1] |
VALVE BLOCK
|
|
| 2. |
F018783
|
[1] |
VALVE BLOCK
|
|
| 3. |
F038496
|
[1] |
Valve
|
|
| 4. |
F038495
|
[1] |
Spring
|
|
| 5. |
F018824
|
[1] |
Seal Kit
|
|
| 6. |
F018784
|
[1] |
Control Valve
|
|
| 7. |
F008637
|
[1] |
RELIEF CARTRIDGE
|
|
| 8. |
F035053
|
[1] |
Spring
|
|
| 9. |
F018824
|
[1] |
Seal Kit
|
|
| 10. |
F038494
|
[1] |
Valve
|
|
| 11. |
F038493
|
[1] |
Solenoid
|
|
| 12. |
F034926
|
[1] |
Connector
|
|
| 13. |
F038492
|
[5] |
O-Ring
|
|
| 14. |
F040066
|
[1] |
THROTTLE SCREW
|
|
| 15. |
F018787
|
[1] |
THROTTLE SCREW
|
|
| 16. |
F008447
|
[3] |
Screw
|
|
| 17. |
F010685
|
[6] |
Screw
|
|
| 18. |
F003285
|
[4] |
O-Ring
|
|
| 19. |
F010726
|
[3] |
Screw
|
|
| 20. |
F005570
|
[2] |
Plug
|
|
| 21. |
F018111
|
[2] |
Plug
|
|
