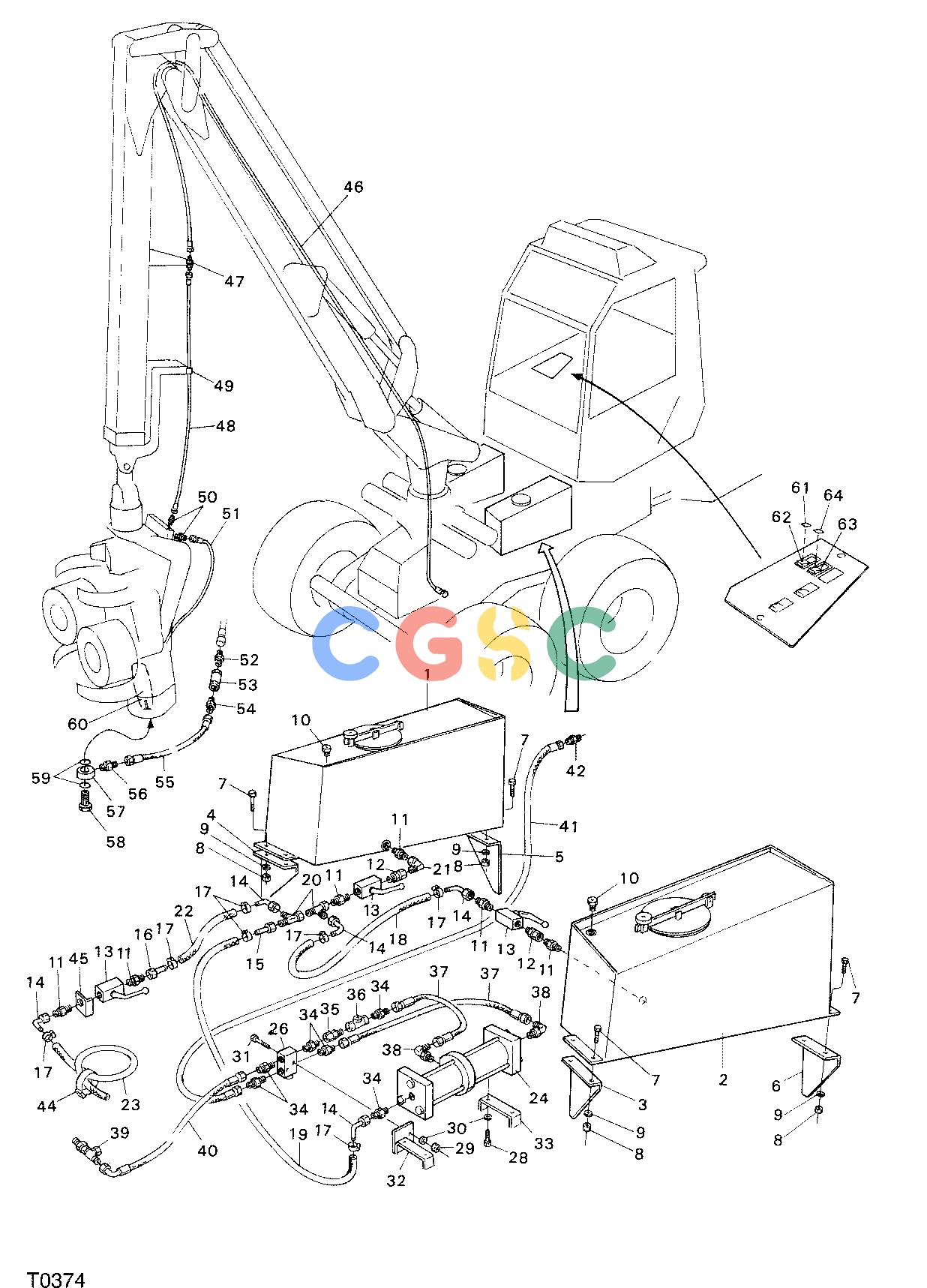

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE UREA UNIT F042683 11 70 T0374 [T0374]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
1002 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F024611
|
[1] |
Tank
|
|
| 2. |
F024612
|
[1] |
Tank
|
|
| 3. |
F023962
|
[1] |
Bracket
|
|
| 4. |
F023963
|
[1] |
Bracket
|
|
| 5. |
F023964
|
[1] |
Bracket
|
|
| 6. |
F023965
|
[1] |
Bracket
|
|
| 7. |
F003541
|
[8] |
Screw
|
|
| 8. |
F003590
|
[8] |
Lock Nut
|
|
| 9. |
F003340
|
[16] |
Washer
|
|
| 10. |
F024644
|
[2] |
Breather
|
|
| 11. |
F005061
|
[6] |
NIPPLE
|
|
| 12. |
F023698
|
[2] |
CONNECTION
|
|
| 13. |
F024645
|
[3] |
BALL VALVE
|
|
| 14. |
F008207
|
[5] |
HOSE CONNECTION
|
|
| 15. |
F007796
|
[1] |
HOSE CONNECTION
|
|
| 16. |
F024646
|
[1] |
HOSE CONNECTION
|
|
| 17. |
F003669
|
[7] |
Hose Clamp
|
|
| 18. |
F002404
|
[%] |
Hose
|
|
| 19. |
F002404
|
[%] |
Hose
|
|
| 20. |
F005074
|
[2] |
L-CONNECTION
|
|
| 21. |
F005046
|
[1] |
ELBOW NIPPLE
|
|
| 22. |
F002404
|
[%] |
Hose
|
|
| 23. |
F002404
|
[%] |
Hose
|
|
| 24. |
F022914
|
[1] |
Pump
|
|
| 25. |
F018173
|
[2] |
Clamp
|
|
| 26. |
F015492
|
[1] |
Valve
|
|
| 27. |
F015493
|
[1] |
VALVE BLOCK
|
|
| 28. |
F003524
|
[4] |
Screw
|
|
| 29. |
F003587
|
[6] |
Lock Nut
|
|
| 30. |
F003338
|
[12] |
Washer
|
|
| 31. |
F003475
|
[2] |
Screw
|
|
| 32. |
F023960
|
[1] |
Bracket
|
|
| 33. |
F023961
|
[1] |
Bracket
|
|
| 34. |
F005055
|
[5] |
NIPPLE
|
|
| 35. |
F023030
|
[1] |
CONNECTION
|
|
| 36. |
F024403
|
[1] |
THROTTLE VALVE
|
|
| 37. |
F023020
|
[2] |
HOSE-ASSY
|
|
| 38. |
F024402
|
[2] |
ELBOW NIPPLE
|
|
| 39. |
F026233
|
[1] |
T-CONNECTION
|
|
| 40. |
F031444
|
[1] |
HOSE-ASSY
|
|
| 41. |
F024642
|
[1] |
HOSE-ASSY
|
|
| 42. |
F005056
|
[1] |
NIPPLE
|
|
| 44. |
F013024
|
[1] |
Belt
|
|
| 45. |
F023966
|
[1] |
Bracket
|
|
| 46. |
F024650
|
[1] |
HOSE-ASSY
|
|
| 47. |
F024601
|
[1] |
NIPPLE
|
|
| 48. |
F024648
|
[1] |
HOSE-ASSY
|
|
| 49. |
F013810
|
[1] |
PIPE CLIP
|
|
| 50. |
F005055
|
[2] |
NIPPLE
|
|
| 51. |
F024649
|
[1] |
HOSE-ASSY
|
|
| 52. |
F005057
|
[1] |
NIPPLE
|
|
| 53. |
F020746
|
[1] |
Check Valve
|
|
| 54. |
F005052
|
[1] |
NIPPLE
|
|
| 55. |
F020131
|
[1] |
HOSE-ASSY
|
|
| 56. |
F005053
|
[1] |
NIPPLE
|
|
| 57. |
F014619
|
[1] |
BANJO
|
|
| 58. |
F014620
|
[1] |
BANJO SCREW
|
|
| 59. |
F017216
|
[2] |
O-Ring
|
|
| 60. |
F019072
|
[1] |
SWORD
|
|
| 61. |
F024634
|
[1] |
SYMBOL
|
|
| 62. |
F011047
|
[1] |
Switch
|
|
| 63. |
F013305
|
[1] |
Switch
|
|
| 64. |
F005390
|
[1] |
SYMBOL
|
|
