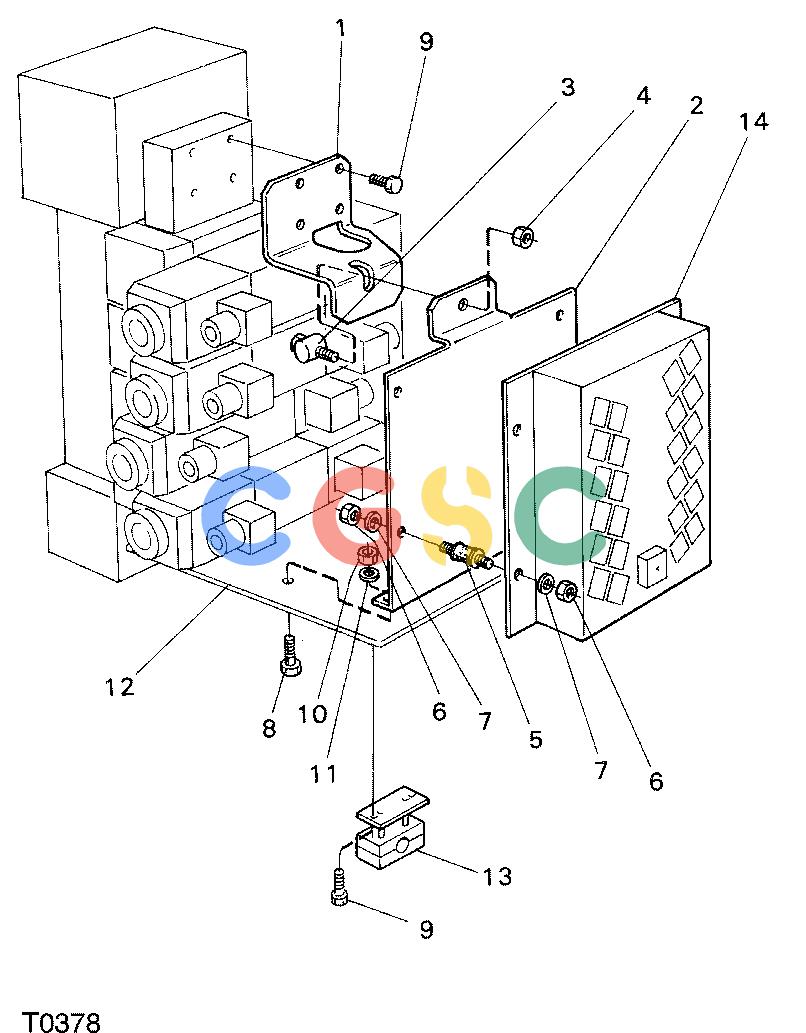

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE ELECTRICAL BOX F042683 11 78 T0378 [T0378]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
335 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F027607
|
[1] |
Bracket
|
|
| 2. |
F023878
|
[1] |
Plate
|
|
| 3. |
F019260
|
[1] |
LOCKING SCREW
|
|
| 4. |
F014937
|
[1] |
Lock Nut
|
|
| 5. |
F027738
|
[4] |
DAMPER
|
|
| 6. |
F003562
|
[8] |
Nut
|
|
| 7. |
F003337
|
[8] |
Washer
|
|
| 8. |
F003524
|
[2] |
Screw
|
|
| 9. |
F010828
|
[6] |
Screw
|
|
| 10. |
F003563
|
[2] |
Nut
|
|
| 11. |
F003338
|
[4] |
Washer
|
|
| 12. |
F028514
|
[1] |
Bracket
|
|
| 13. |
F028734
|
[1] |
PIPE CLIP HALF
|
|
| 14. |
-------
|
[1] |
ELECTRICAL BOX
|
|
