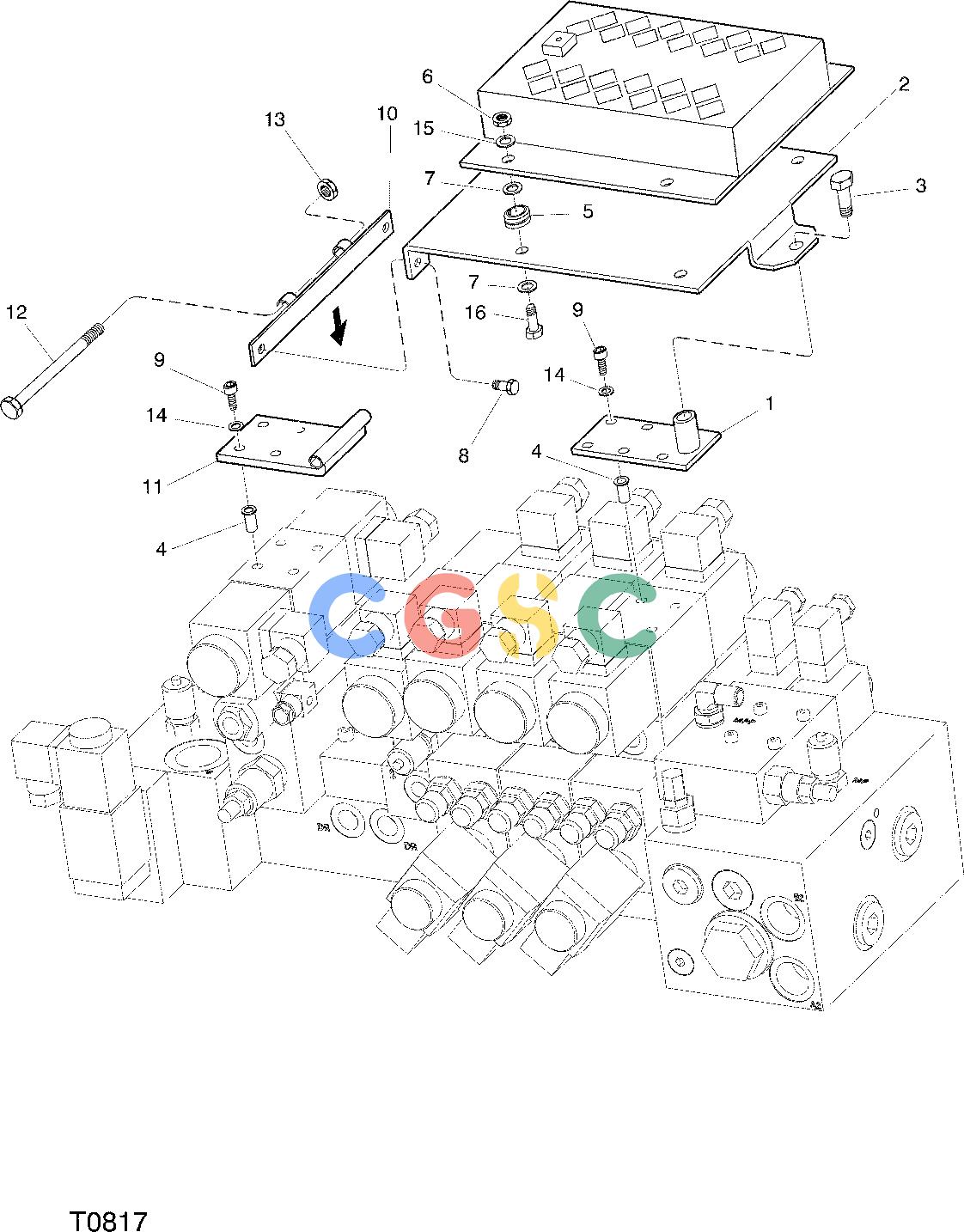

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE ELECTRICAL BOX F042683 11 80 T0817 [T0817]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F039670
|
[1] |
Bracket
|
|
| 2. |
F023878
|
[1] |
Plate
|
|
| 3. |
F038353
|
[1] |
Screw
|
|
| 4. |
F039671
|
[8] |
Spacer
|
|
| 5. |
F039343
|
[4] |
CONDUIT ENTRY
|
|
| 6. |
F003587
|
[4] |
Lock Nut
|
|
| 7. |
F003339
|
[8] |
Washer
|
|
| 8. |
F020748
|
[2] |
Screw
|
|
| 9. |
F040891
|
[8] |
Screw
|
|
| 10. |
F027672
|
[1] |
Bracket
|
|
| 11. |
F039666
|
[1] |
Bracket
|
|
| 12. |
F019356
|
[1] |
Screw
|
|
| 13. |
F003587
|
[1] |
Lock Nut
|
|
| 14. |
F012616
|
[8] |
Washer
|
|
| 15. |
F003338
|
[4] |
Washer
|
|
| 16. |
F003525
|
[4] |
Screw
|
|
