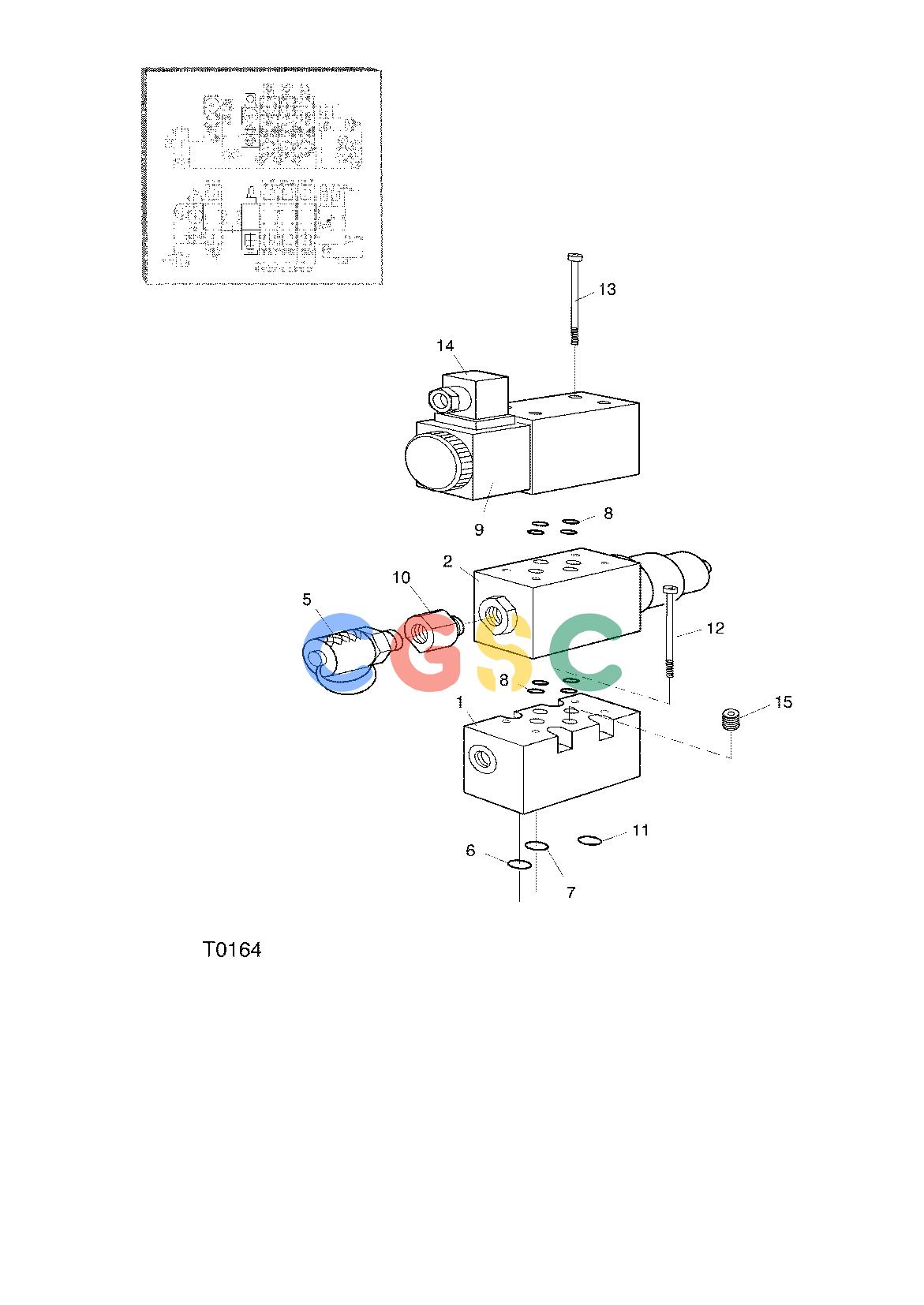

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE VALVE BLOCK SECTION F042683 11 30 T0164 [T0164]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
989 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F040064
|
[1] |
VALVE BLOCK
|
|
| 1. |
F023444
|
[1] |
BLOCK
|
|
| 2. |
F005563
|
[1] |
Relief Valve
|
|
| |
F023446
|
[1] |
Seal Kit
|
|
| 5. |
F004419
|
[1] |
MEASURING NIPPLE
|
|
| 6. |
F018768
|
[1] |
O-Ring
|
|
| 7. |
F003285
|
[1] |
REPLACED
|
|
| 8. |
F003286
|
[8] |
O-Ring
|
|
| 9. |
F021683
|
[1] |
Solenoid Valve
|
|
| |
F008633
|
[1] |
Seal Kit
|
|
| |
F008453
|
[1] |
Solenoid
|
|
| 10. |
F011299
|
[1] |
NIPPLE
|
|
| 11. |
F018771
|
[2] |
O-Ring
|
|
| 12. |
F018800
|
[4] |
Screw
|
|
| 13. |
F008751
|
[4] |
Screw
|
|
| 14. |
F035106
|
[1] |
Connector
|
|
| 15. |
F039197
|
[1] |
THROTTLE SCREW
|
|
