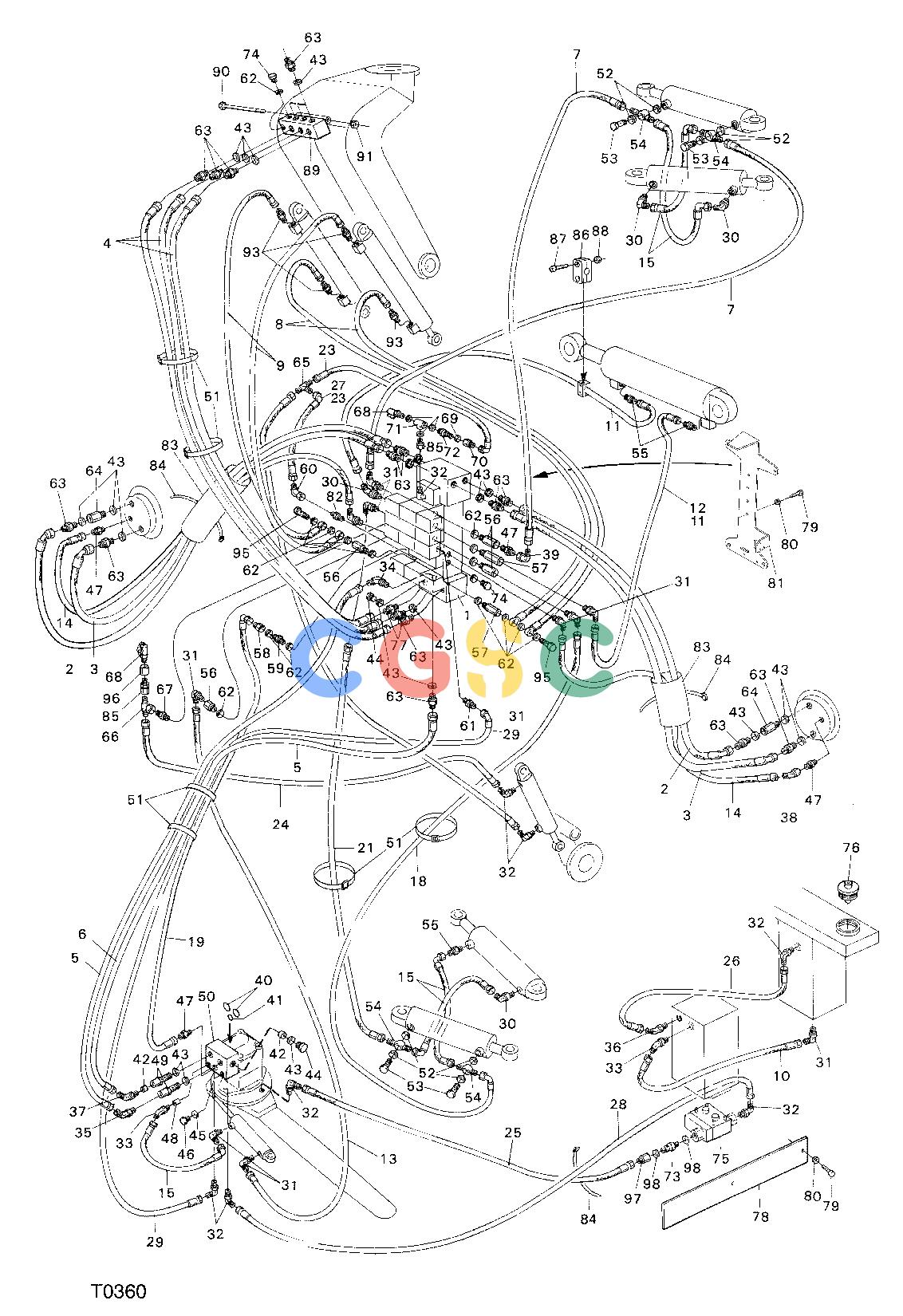

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F042683 11 12 T0360 [T0360]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F017769
|
[1] |
HYDRAULIC VALVE
|
|
| 1. |
F039311
|
[1] |
HYDRAULIC VALVE
|
|
| 2. |
F020084
|
[2] |
HOSE-ASSY
|
|
| 2. |
F044873
|
[2] |
HOSE-ASSY
|
|
| 3. |
F020086
|
[2] |
HOSE-ASSY
|
|
| 3. |
F044874
|
[2] |
HOSE-ASSY
|
|
| 4. |
F020081
|
[3] |
HOSE-ASSY
|
|
| 5. |
F020079
|
[1] |
HOSE-ASSY
|
|
| 6. |
F035413
|
[1] |
HOSE-ASSY
|
|
| 7. |
F020185
|
[2] |
HOSE-ASSY
|
|
| 7. |
F044736
|
[2] |
HOSE-ASSY
|
|
| 8. |
F032163
|
[2] |
HOSE-ASSY
|
|
| 9. |
F032164
|
[2] |
HOSE-ASSY
|
|
| 10. |
F020094
|
[1] |
HOSE-ASSY
|
|
| 11. |
F020096
|
[1] |
HOSE-ASSY
|
|
| 11. |
F043224
|
[2] |
HOSE-ASSY
|
|
| 12. |
F020098
|
[1] |
HOSE-ASSY
|
|
| 13. |
F012525
|
[1] |
HOSE-ASSY
|
|
| 13. |
F040387
|
[1] |
HOSE-ASSY
|
|
| 14. |
F020101
|
[2] |
HOSE-ASSY
|
|
| 14. |
F044875
|
[2] |
HOSE-ASSY
|
|
| 15. |
F012526
|
[4] |
HOSE-ASSY
|
|
| 15. |
F044737
|
[4] |
HOSE-ASSY
|
|
| 16. |
F024402
|
[4] |
ELBOW NIPPLE
|
|
| 18. |
F020108
|
[1] |
HOSE-ASSY
|
|
| 18. |
F045790
|
[1] |
HOSE-ASSY
|
|
| 19. |
F035414
|
[1] |
HOSE-ASSY
|
|
| 19. |
F043920
|
[1] |
HOSE-ASSY
|
|
| 21. |
F020125
|
[1] |
HOSE-ASSY
|
|
| 21. |
F045791
|
[1] |
HOSE-ASSY
|
|
| 23. |
F031443
|
[1] |
HOSE-ASSY
|
|
| 23. |
F040635
|
[1] |
HOSE-ASSY
|
|
| 24. |
F020133
|
[3] |
HOSE-ASSY
|
|
| 25. |
F020133
|
[1] |
HOSE-ASSY
|
|
| |
F020134
|
[1] |
HOSE-ASSY
|
|
| 26. |
F020135
|
[1] |
HOSE-ASSY
|
|
| 26. |
F046441
|
[1] |
HOSE-ASSY
|
|
| 27. |
F032167
|
[1] |
HOSE-ASSY
|
|
| 28. |
F020138
|
[1] |
HOSE-ASSY
|
|
| 29. |
F013324
|
[1] |
HOSE-ASSY
|
|
| 29. |
F034890
|
[1] |
HOSE-ASSY
|
|
| 30. |
F012592
|
[4] |
ELBOW NIPPLE
|
|
| 31. |
F010072
|
[13] |
ELBOW NIPPLE
|
|
| 32. |
F011057
|
[8] |
ELBOW NIPPLE
|
|
| 33. |
F012533
|
[1] |
ELBOW NIPPLE
|
|
| 34. |
F005049
|
[1] |
ELBOW NIPPLE
|
|
| 35. |
F020756
|
[2] |
ELBOW NIPPLE
|
|
| 36. |
F019105
|
[1] |
ELBOW NIPPLE
|
|
| 37. |
F019896
|
[1] |
THROTTLE
|
|
| 37. |
F024599
|
[1] |
ELBOW NIPPLE
|
|
| 38. |
F012521
|
[2] |
ELBOW NIPPLE
|
|
| 39. |
F005045
|
[1] |
ELBOW NIPPLE
|
|
| 40. |
F004570
|
[2] |
O-Ring
|
|
| 41. |
F004569
|
[1] |
O-Ring
|
|
| 42. |
F018836
|
[2] |
Check Valve
|
|
| 43. |
F005170
|
[5] |
SEAL RING
|
|
| 44. |
F003385
|
[1] |
Plug
|
|
| 45. |
F005162
|
[1] |
SEAL RING
|
|
| 46. |
F010192
|
[1] |
Plug
|
|
| 47. |
F005060
|
[4] |
NIPPLE
|
|
| 48. |
F018837
|
[1] |
Check Valve
|
|
| 48. |
F018111
|
[1] |
Plug
|
|
| 48. |
F003382
|
[1] |
Plug
|
|
| 49. |
F017801
|
[2] |
BANJO SCREW
|
|
| 50. |
F018051
|
[1] |
BLOCK
|
|
| 51. |
F011353
|
[8] |
Belt
|
|
| 52. |
F005168
|
[8] |
SEAL RING
|
|
| 53. |
F005557
|
[4] |
BANJO SCREW
|
|
| 54. |
F012529
|
[4] |
BANJO CONNECTION
|
|
| 55. |
F005059
|
[3] |
NIPPLE
|
|
| 56. |
F019945
|
[5] |
NIPPLE
|
|
| 57. |
F019944
|
[2] |
NIPPLE
|
|
| 58. |
F011485
|
[1] |
NIPPLE
|
|
| 59. |
F004357
|
[1] |
NIPPLE
|
|
| 60. |
F005044
|
[1] |
ELBOW NIPPLE
|
|
| 61. |
F005052
|
[2] |
NIPPLE
|
|
| 62. |
F005167
|
[20] |
SEAL RING
|
|
| 63. |
F005063
|
[16] |
NIPPLE
|
|
| 64. |
F011230
|
[2] |
CONNECTION
|
|
| 65. |
F020171
|
[1] |
T-CONNECTION
|
|
| 66. |
F005075
|
[1] |
T-CONNECTION
|
|
| 67. |
F005054
|
[1] |
NIPPLE
|
|
| 67. |
F005053
|
[1] |
NIPPLE
|
|
| 68. |
F004419
|
[2] |
MEASURING NIPPLE
|
|
| 68. |
F017320
|
[2] |
MEASURING NIPPLE
|
|
| 69. |
F005164
|
[6] |
SEAL RING
|
|
| 70. |
F013136
|
[1] |
NIPPLE
|
|
| 70. |
F042906
|
[1] |
NIPPLE
|
|
| 71. |
F012787
|
[1] |
T-PIPE
|
|
| 72. |
F005469
|
[1] |
Check Valve
|
|
| 72. |
F040300
|
[1] |
Check Valve
|
|
| 73. |
F019954
|
[1] |
Check Valve
|
|
| |
F005052
|
[1] |
NIPPLE
|
|
| |
F004354
|
[1] |
NIPPLE
|
|
| 74. |
F011246
|
[3] |
Plug
|
|
| 75. |
F012628
|
[1] |
Pump
|
|
| 76. |
F021332
|
[1] |
REFILLING COVER
|
|
| 77. |
F005064
|
[2] |
NIPPLE
|
|
| 78. |
F019816
|
[1] |
PROTECTION PLATE
|
|
| 79. |
F003542
|
[10] |
Screw
|
|
| 80. |
F002805
|
[10] |
Lock Washer
|
|
| 81. |
F018223
|
[1] |
Bracket
|
|
| 82. |
F019960
|
[1] |
THROTTLE
|
|
| 83. |
F010871
|
[2] |
HOSE PROTECTION
|
|
| 83. |
F032113
|
[2] |
HOSE PROTECTION
|
|
| 84. |
F005336
|
[5] |
Binder
|
|
| 84. |
F013746
|
[5] |
Binder
|
|
| 85. |
F024875
|
[1] |
CONNECTION
|
|
| 86. |
F017995
|
[1] |
HOLDER PAIR
|
|
| 86. |
F017598
|
[1] |
HOLDER PAIR
|
|
| 86. |
F046450
|
[1] |
HOLDER PAIR
|
|
| 87. |
F003405
|
[2] |
Screw
|
|
| 88. |
F003586
|
[2] |
Lock Nut
|
|
| 89. |
F019826
|
[1] |
BLOCK
|
|
| 90. |
F013609
|
[1] |
Screw
|
|
| 91. |
F003590
|
[1] |
Lock Nut
|
|
| 92. |
F013594
|
[2] |
ELBOW NIPPLE
|
|
| 93. |
F005055
|
[4] |
NIPPLE
|
|
| 94. |
F031276
|
[2] |
PROTECTION SPIRAL
|
|
| 95. |
F027699
|
[2] |
BANJO SCREW
|
|
| 96. |
F007823
|
[1] |
CONNECTION
|
|
| 97. |
F013136
|
[1] |
NIPPLE
|
|
| 97. |
F024875
|
[1] |
CONNECTION
|
|
| 98. |
F005164
|
[2] |
SEAL RING
|
|
| 99. |
F024599
|
[1] |
ELBOW NIPPLE
|
|
