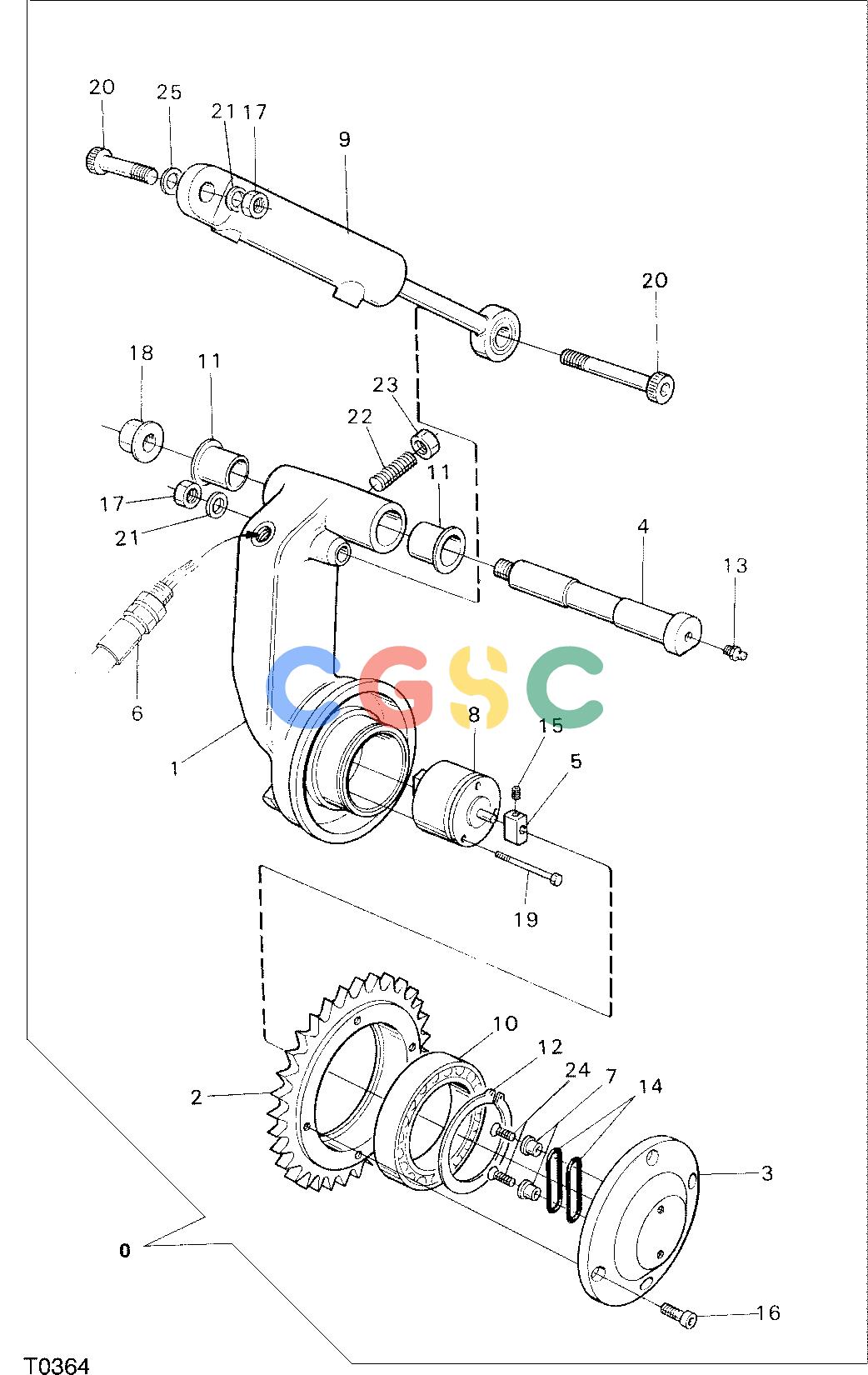

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE MEASURING DEVICE F042683 11 38 T0364-1 [T0364-1]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F049249
|
[1] |
MEASURING ROLL
|
|
| 1. |
F013232
|
[1] |
Arm
|
|
| 2. |
F013231
|
[1] |
MEASURING ROLL
|
|
| 2. |
F049312
|
[1] |
MEASURING ROLL
|
|
| 3. |
F013230
|
[1] |
CENTRE PLATE
|
|
| 4. |
F050528
|
[1] |
Shaft
|
|
| 5. |
F011483
|
[1] |
CARRIER
|
|
| 6. |
-------
|
[1] |
Cable
|
|
| 6. |
-------
|
[1] |
Cable
|
|
| 7. |
F013228
|
[2] |
Retainer
|
|
| 8. |
F045844
|
[1] |
PULSE SENSOR
|
|
| 9. |
F005553
|
[1] |
Cylinder
|
|
| 10. |
F005555
|
[1] |
Ball Bearing
|
|
| 11. |
F005495
|
[2] |
BEARING BUSHING
|
|
| 11. |
F046323
|
[2] |
BEARING BUSHING
|
|
| 12. |
F003362
|
[1] |
CIRCLIP
|
|
| 13. |
F005626
|
[1] |
GREASE NIPPLE
|
|
| 14. |
F005635
|
[2] |
O-Ring
|
|
| 15. |
F002903
|
[1] |
STOP SCREW
|
|
| 16. |
F012683
|
[4] |
Screw
|
|
| 17. |
F003588
|
[2] |
Lock Nut
|
|
| 18. |
F005494
|
[1] |
Lock Nut
|
|
| 19. |
F012791
|
[3] |
Screw
|
|
| 20. |
F013226
|
[2] |
Screw
|
|
| 21. |
F005551
|
[2] |
Lock Washer
|
|
| 22. |
F005483
|
[1] |
STOP SCREW
|
|
| 23. |
F003565
|
[1] |
Nut
|
|
| 24. |
F013225
|
[1] |
Screw
|
|
| 25. |
F020176
|
[1] |
Washer
|
|
