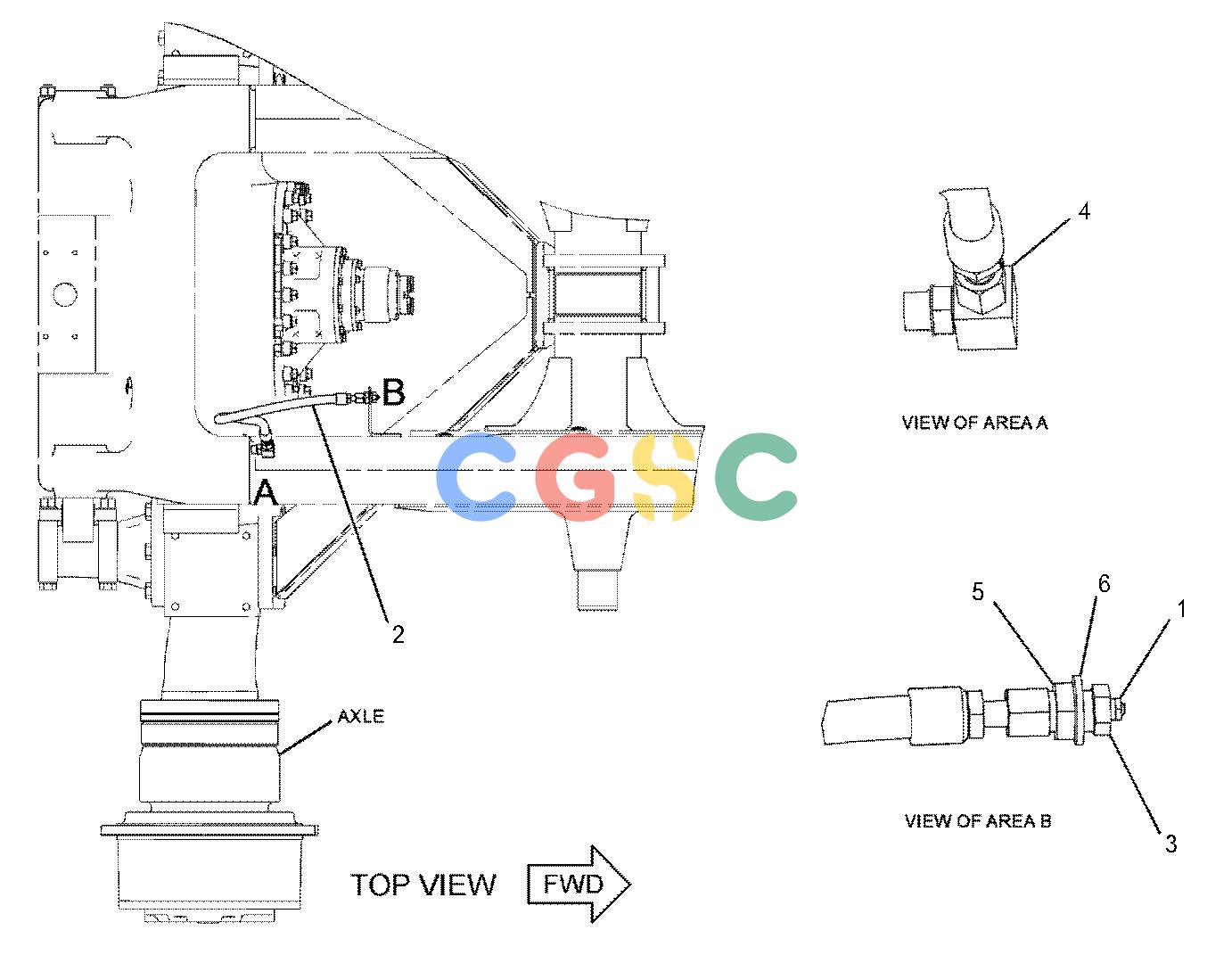

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6U-1989 | [1] | VALVE-RELIEF(POWER TRAIN OIL) | |
| 2. | 247-9623I | [1] | HOSE AS | |
| 3. | 169-7395 | [1] | ADAPTER AS | |
| 156-6129 | [1] | ADAPTER | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 4. | 148-8364 | [1] | ELBOW AS | |
| 6V-8625 | [1] | ELBOW | ||
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 5. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 6. | 8T-4123 | [1] | WASHER(3.62X5.75X0.375-MM THK) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
