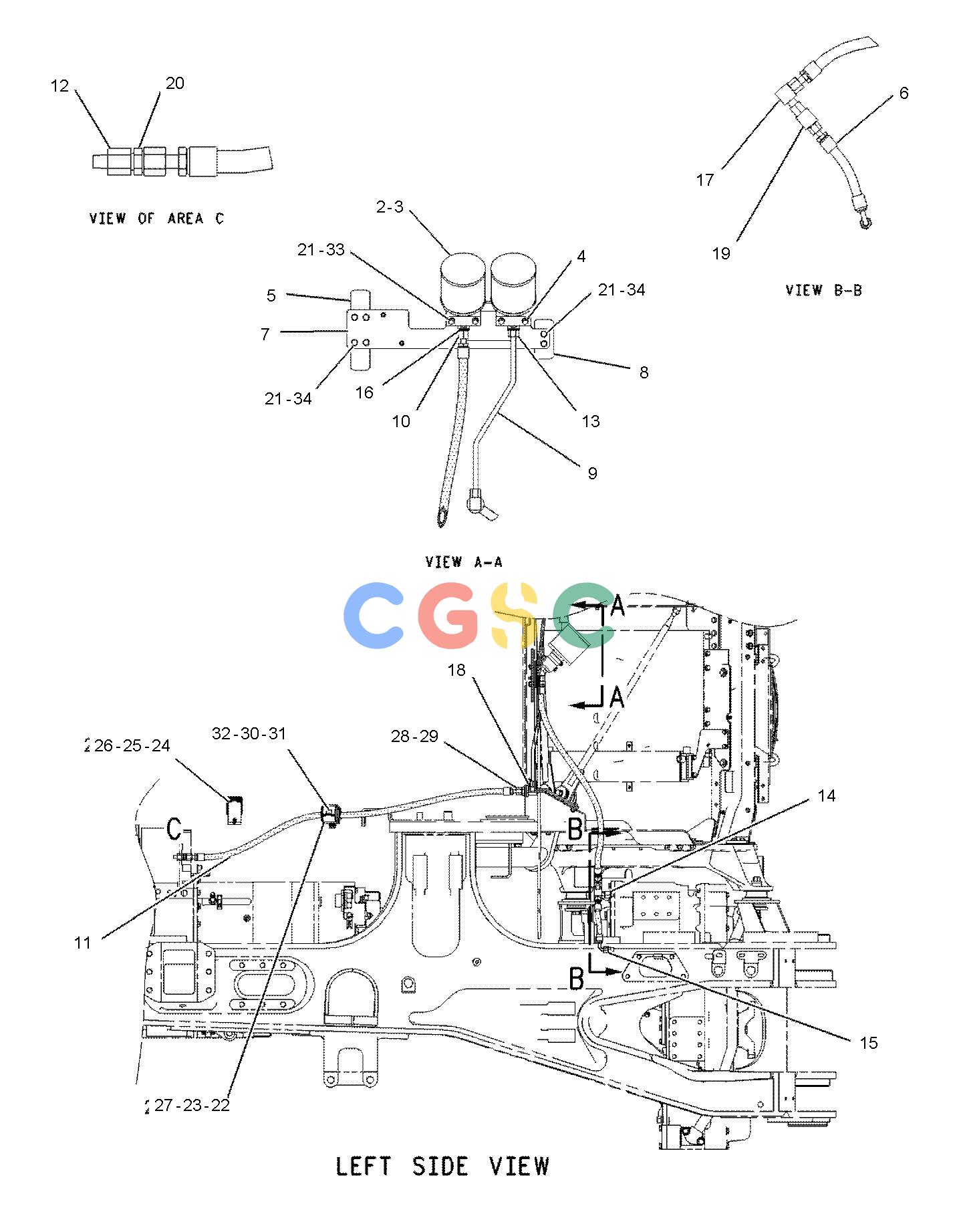

卡特零件查询（735） 197-7201: BREATHER GP-POWER TRAIN
广数供应链运营团队, 15 02月, 2025，浏览：
427 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [2] | STRAP | |
| 2. | 8X-4575 | [2] | FILTER AS-BREATHER(POWER TRAIN) | |
| 3. | 9M-2904 | [2] | CLAMP-HOSE | |
| 4. | 105-0381 | [2] | BLOCK | |
| 5. | 178-8977 | [1] | PLATE AS | |
| 6. | 206-8663I | [1] | HOSE AS | |
| 7. | 212-5826 | [1] | BRACKET AS | |
| | 8T-3612M | [6] | NUT-WELD(M8X1.25-THD) | |
| 8. | 212-5828 | [1] | PLATE AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 9. | 212-5830 | [1] | TUBE AS | |
| 10. | 212-5831I | [1] | HOSE AS | |
| 11. | 212-7365I | [1] | HOSE AS | |
| 12. | 030-8370 | [1] | ADAPTER-PIPE | |
| 13. | 148-8306 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 5P-5777 | [1] | ADAPTER-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 14. | 148-8307 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5P-8874 | [1] | ADAPTER | |
| 15. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 16. | 148-8354 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 17. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 18. | 148-8375 | [1] | ELBOW AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 19. | 148-8426 | [1] | TEE AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-6696 | [1] | TEE-O-RING | |
| 20. | 171-6731 | [1] | CONNECTOR AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8C-6871 | [1] | CONNECTOR | |
| 22. | 5P-7464 | [1] | CLIP(SLOT) | |
| 23. | 5P-7465 | [1] | CLIP(TAB) | |
| 24. | 5P-7470 | [2] | CLIP(SLOT) | |
| 25. | 5P-7471 | [2] | CLIP(TAB) | |
| 26. | 5P-7703 | [2] | GROMMET(52-MM ID) | |
| 27. | 8T-2920 | [1] | GROMMET(27-MM ID) | |
| 28. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 29. | 8T-4123 | [1] | WASHER(3.62X5.75X0.375-MM THK) | |
| 30. | 8T-4194M | [1] | BOLT(M12X1.75X50-MM) | |
| 31. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 32. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 33. | 8T-6870M | [4] | BOLT(M8X1.25X70-MM) | |
| 34. | 8T-7547M | [6] | BOLT(M8X1.25X30-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
