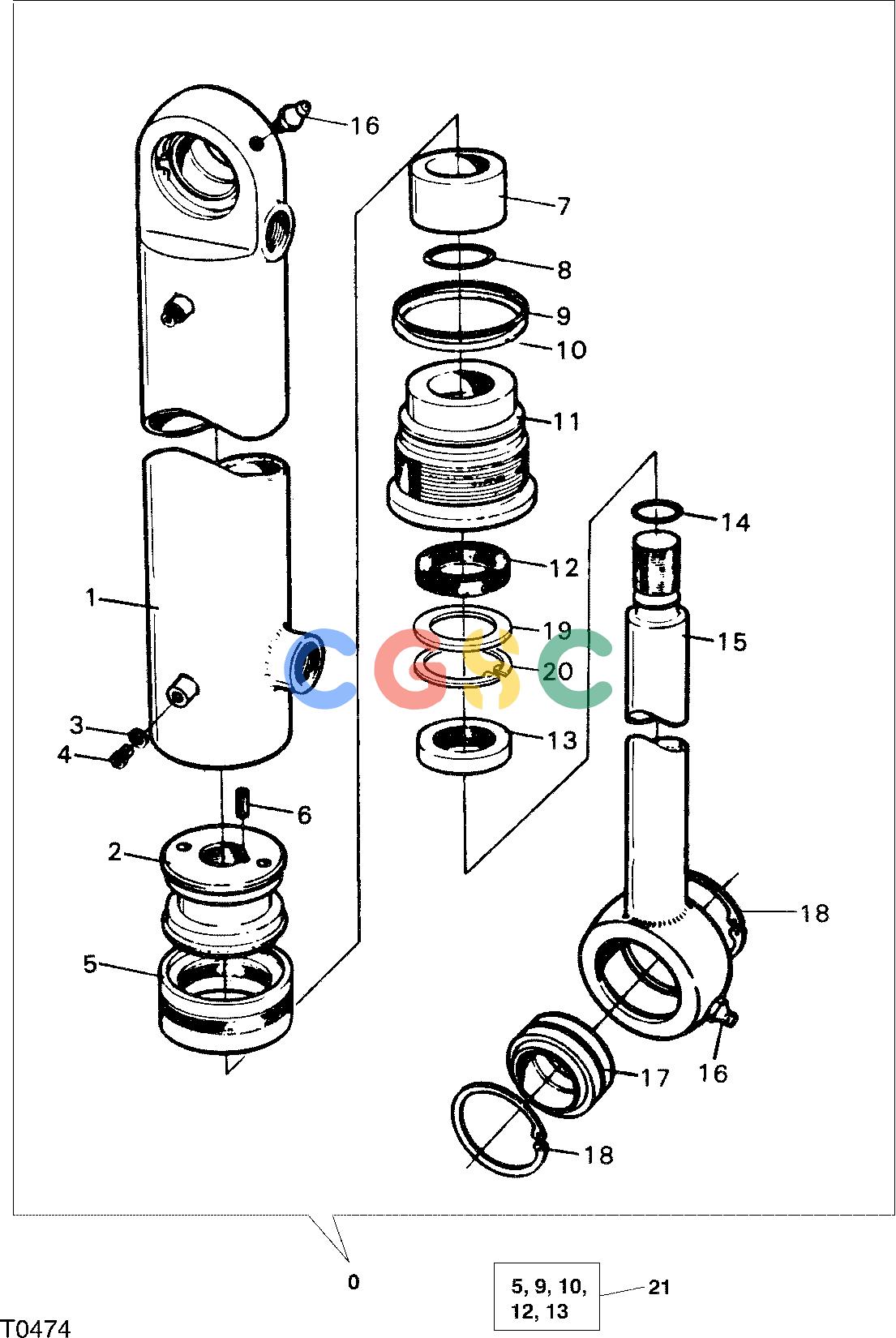

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE CYLINDER F042683 11 44 T0474 [T0474]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
299 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
F005553
|
[1] |
Hydraulic Cylinder
|
|
| 1. |
F034653
|
[1] |
CYLINDER TUBE
|
|
| 2. |
F011459
|
[1] |
Piston
|
|
| 3. |
F010079
|
[1] |
COUPLING NUT
|
|
| 4. |
F016496
|
[1] |
Screw
|
|
| 5. |
F011460
|
[1] |
Seal
|
|
| 7. |
F035195
|
[1] |
Sleeve
|
|
| 9. |
F005634
|
[1] |
O-Ring
|
|
| 10. |
F010693
|
[1] |
SUPPORT RING
|
|
| 11. |
F035190
|
[1] |
Cap
|
|
| 12. |
F011463
|
[1] |
Seal
|
|
| 13. |
F014928
|
[1] |
Scraper
|
|
| 15. |
F011458
|
[1] |
PISTON ROD
|
|
| 16. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 17. |
F005471
|
[2] |
SPHERICAL BEARING
|
|
| 18. |
F005613
|
[4] |
CIRCLIP
|
|
| 19. |
F005614
|
[1] |
Ring
|
|
| 20. |
F005509
|
[1] |
CIRCLIP
|
|
| 21. |
F003149
|
[1] |
Seal Kit
|
|
