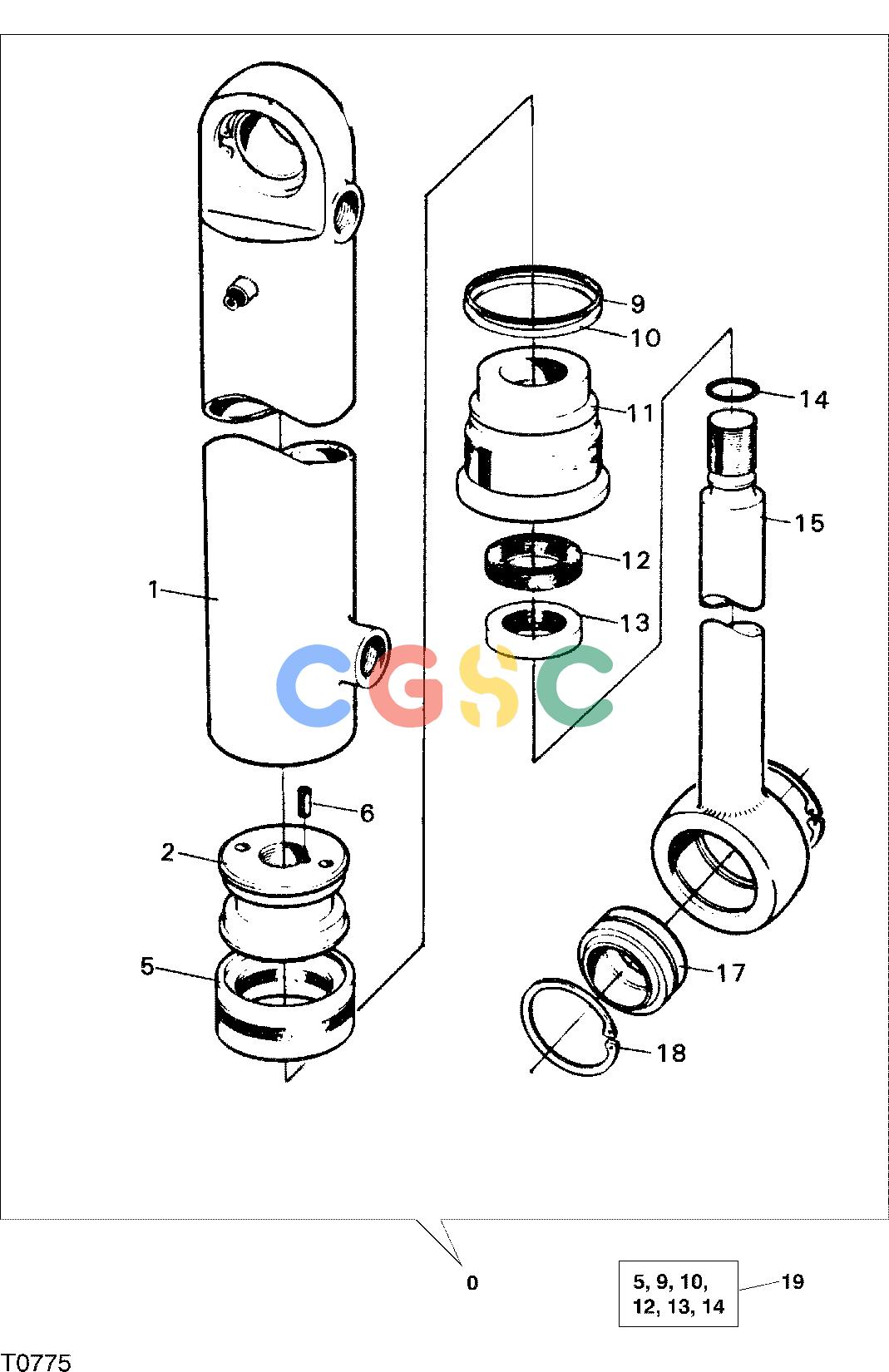

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE CYLINDER F042683 11 40 T0775 [T0775]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
930 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
F011445
|
[1] |
Hydraulic Cylinder
|
|
| 1. |
F034668
|
[1] |
CYLINDER TUBE
|
|
| 2. |
F005612
|
[1] |
Piston
|
|
| 5. |
F015236
|
[1] |
Seal
|
|
| 6. |
F011446
|
[1] |
STOP SCREW
|
|
| 9. |
F003291
|
[1] |
O-Ring
|
|
| 10. |
F003765
|
[1] |
SUPPORT RING
|
|
| 11. |
F035193
|
[1] |
Cap
|
|
| 12. |
F034667
|
[1] |
Seal
|
|
| 13. |
F011450
|
[1] |
WIPER RING
|
|
| 14. |
F005500
|
[1] |
O-Ring
|
|
| 15. |
F005453
|
[1] |
PISTON ROD
|
|
| 17. |
F003818
|
[2] |
SPHERICAL BEARING
|
|
| 18. |
F003370
|
[4] |
CIRCLIP
|
|
| 19. |
F005446
|
[1] |
Seal Kit
|
|
