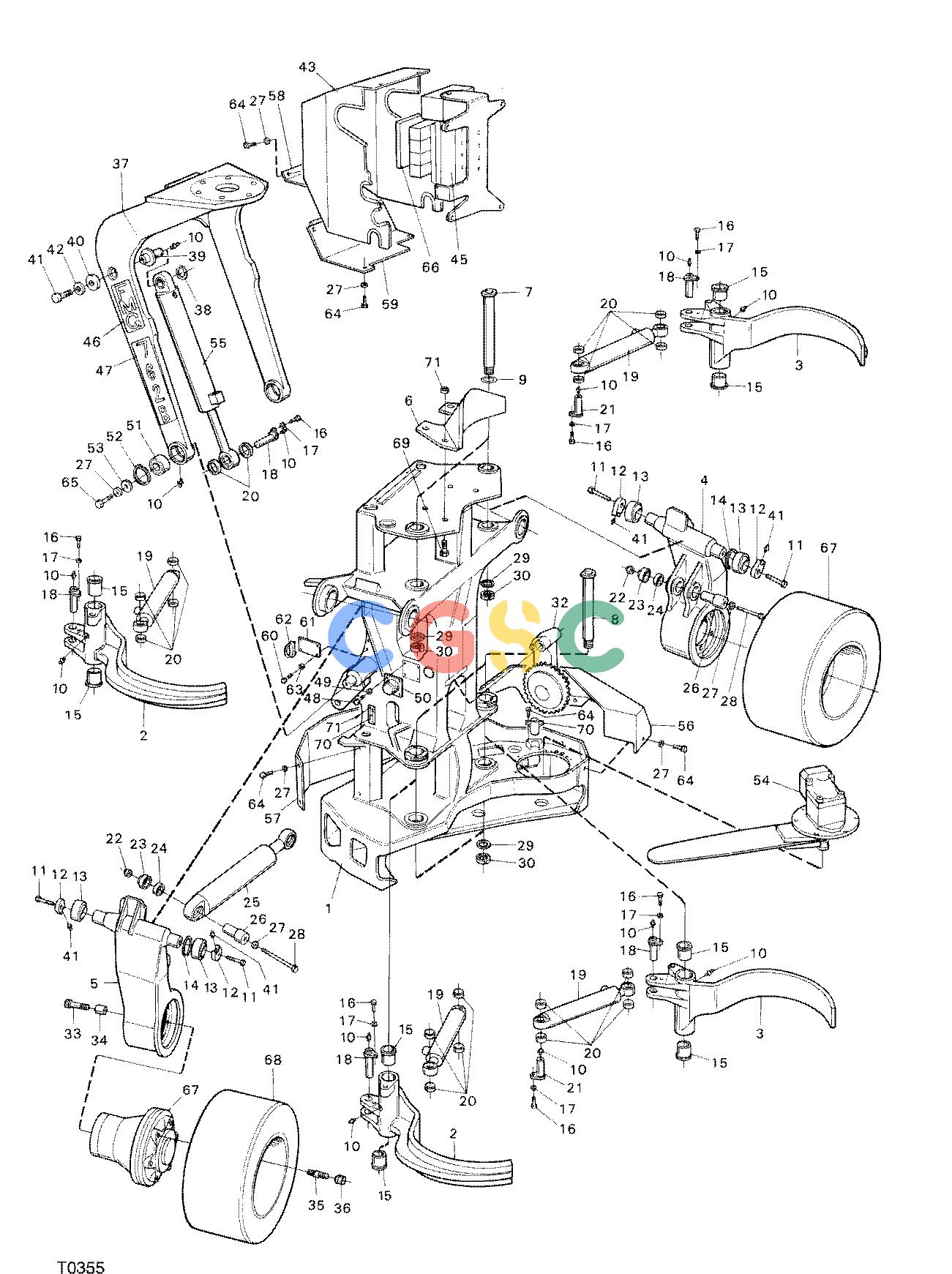

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE HARVESTER HEAD F042683 11 2 T0355 [T0355]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
644 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F019126
|
[1] |
Leg
|
|
| 2. |
F013391
|
[2] |
DELIMBING KNIFE
|
|
| 3. |
F013392
|
[2] |
DELIMBING TOOL
|
|
| 4. |
F018022
|
[1] |
WHEEL MOUNTING
|
|
| 5. |
F018023
|
[1] |
WHEEL MOUNTING
|
|
| 6. |
F017840
|
[1] |
DELIMBING KNIFE
|
|
| 7. |
F017389
|
[2] |
Pin
|
|
| 8. |
F017387
|
[2] |
Pin
|
|
| 9. |
F013393
|
[%] |
Shim
|
|
| 10. |
F005626
|
[22] |
GREASE NIPPLE
|
|
| 11. |
F003495
|
[6] |
Screw
|
|
| 12. |
F018152
|
[4] |
Washer
|
|
| 13. |
F015049
|
[4] |
SPHERICAL BEARING
|
|
| 14. |
F003375
|
[2] |
CIRCLIP
|
|
| 15. |
F005548
|
[8] |
BEARING BUSHING
|
|
| 16. |
F003531
|
[10] |
Screw
|
|
| 17. |
F005551
|
[10] |
Lock Washer
|
|
| 18. |
F011185
|
[8] |
Pin
|
|
| 19. |
F011445
|
[4] |
Hydraulic Cylinder
|
|
| 20. |
F011186
|
[20] |
Sleeve
|
|
| 21. |
F011193
|
[2] |
Pin
|
|
| 22. |
F003590
|
[2] |
Lock Nut
|
|
| 23. |
F007292
|
[2] |
Washer
|
|
| 24. |
F007290
|
[2] |
Sleeve
|
|
| 25. |
F017736
|
[1] |
Cylinder
|
|
| 26. |
F007291
|
[2] |
Shaft
|
|
| 27. |
F003340
|
[19] |
Washer
|
|
| 28. |
F003501
|
[2] |
Screw
|
|
| 29. |
F012697
|
[4] |
Washer
|
|
| 30. |
F018838
|
[4] |
Lock Nut
|
|
| 31. |
F013231
|
[1] |
MEASURING ROLL
|
|
| 32. |
F021413
|
[1] |
ANGLE INDICATOR
|
|
| 32. |
F021414
|
[1] |
Sensor
|
|
| 33. |
F003443
|
[12] |
Screw
|
|
| 34. |
F011181
|
[12] |
Sleeve
|
|
| 35. |
F011180
|
[12] |
PIN SCREW
|
|
| 36. |
F005568
|
[12] |
Nut
|
|
| 37. |
F017838
|
[1] |
LINK ASSY
|
|
| 38. |
F017585
|
[2] |
CIRCLIP
|
|
| 39. |
F017839
|
[2] |
Pin
|
|
| 40. |
F019802
|
[2] |
Washer
|
|
| 41. |
F003502
|
[2] |
Screw
|
|
| 42. |
F005459
|
[2] |
Washer
|
|
| 43. |
F019803
|
[1] |
Case
|
|
| 45. |
-------
|
[1] |
HYDRAULIC MOUNTING
|
|
| 46. |
F021273
|
[2] |
Sign
|
|
| 47. |
F021274
|
[2] |
Sign
|
|
| 48. |
F003518
|
[8] |
Screw
|
|
| 49. |
F003337
|
[8] |
Washer
|
|
| 50. |
F019359
|
[2] |
DAMPER
|
|
| 51. |
F013894
|
[2] |
SPHERICAL BEARING
|
|
| 52. |
F015955
|
[2] |
CIRCLIP
|
|
| 53. |
F009964
|
[2] |
Washer
|
|
| 54. |
-------
|
[1] |
Saw
|
|
| 55. |
F017737
|
[2] |
Cylinder
|
|
| 56. |
F019817
|
[1] |
PROTECTION PLATE
|
|
| 57. |
F019818
|
[1] |
PROTECTION PLATE
|
|
| 58. |
F019813
|
[1] |
PROTECTION PLATE
|
|
| 59. |
F019810
|
[1] |
Cap
|
|
| 60. |
F003524
|
[2] |
Screw
|
|
| 61. |
F019821
|
[1] |
Console
|
|
| 62. |
F022486
|
[1] |
EXHAUST TUBE CLIP
|
|
| 63. |
F003338
|
[2] |
Washer
|
|
| 64. |
F003540
|
[17] |
Screw
|
|
| 66. |
-------
|
[1] |
ELECTRICAL MOUNTING
|
|
| 67. |
F005561
|
[2] |
Hydraulic Motor
|
|
| |
F012509
|
[2] |
Hydraulic Motor
|
|
| 68. |
F011178
|
[2] |
MEASURING ROLL
|
|
| |
F032177
|
[720] |
Spike
|
|
| |
F022484
|
[2] |
FEED WHEEL
|
|
| |
F036259
|
[%] |
CHAIN
|
|
| 69. |
F003554
|
[4] |
Screw
|
|
| 70. |
F011171
|
[1] |
Holder
|
|
| 71. |
F005494
|
[4] |
Lock Nut
|
|
