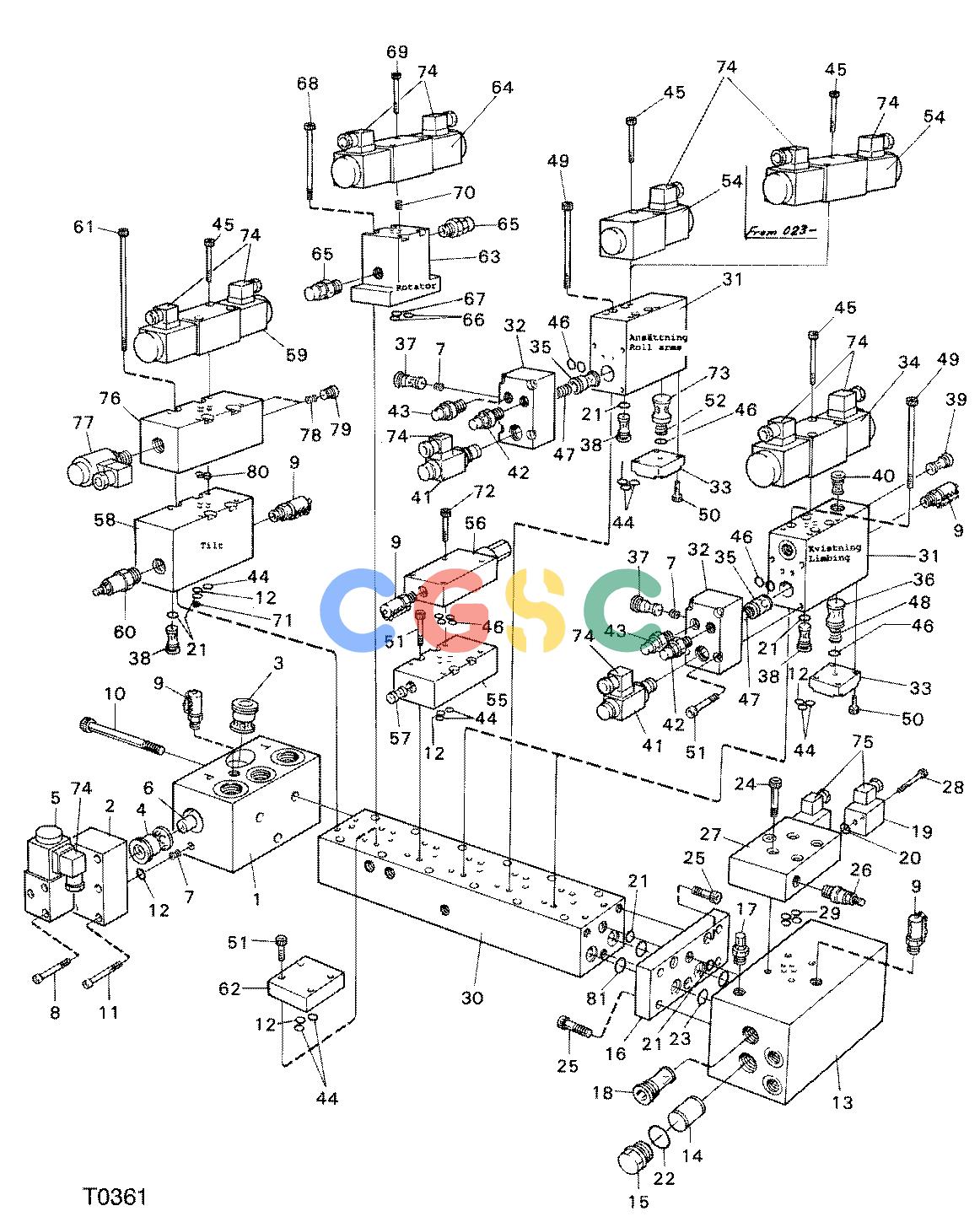

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE VALVE ASSY F042683 11 14 T0361 [T0361]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
647 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F017769
|
[1] |
HYDRAULIC VALVE
|
|
| |
F024856
|
[1] |
HYDRAULIC VALVE
|
|
| |
F033303
|
[1] |
HYDRAULIC VALVE
|
|
| 1. |
F018782
|
[1] |
VALVE BLOCK
|
|
| 2. |
F018783
|
[1] |
VALVE BLOCK
|
|
| 3. |
F018784
|
[1] |
Control Valve
|
|
| |
F018824
|
[1] |
Seal Kit
|
|
| 4. |
F008637
|
[1] |
RELIEF CARTRIDGE
|
|
| |
F018824
|
[1] |
Seal Kit
|
|
| 5. |
F018785
|
[1] |
Valve
|
|
| |
F018825
|
[3] |
O-Ring
|
|
| |
F018826
|
[1] |
O-Ring
|
|
| |
F017720
|
[1] |
O-Ring
|
|
| 6. |
F018786
|
[1] |
THROTTLE SCREW
|
|
| 7. |
F018787
|
[3] |
THROTTLE SCREW
|
|
| 8. |
F010726
|
[3] |
Screw
|
|
| 9. |
F004419
|
[7] |
MEASURING NIPPLE
|
|
| 10. |
F008447
|
[3] |
Screw
|
|
| 11. |
F010685
|
[6] |
Screw
|
|
| 12. |
F003285
|
[9] |
O-Ring
|
|
| 13. |
F018789
|
[1] |
VALVE BLOCK
|
|
| 14. |
F018790
|
[1] |
SLIDE
|
|
| |
F034158
|
[1] |
SLIDE
|
|
| |
F023441
|
[2] |
Spring
|
|
| 15. |
F018791
|
[2] |
Plug
|
|
| 16. |
F018792
|
[1] |
CONNECTING PLATE
|
|
| 17. |
F018793
|
[1] |
Relief Valve
|
|
| |
F033364
|
[1] |
Seal Kit
|
|
| 18. |
F018794
|
[2] |
Relief Valve
|
|
| |
F004565
|
[2] |
O-Ring
|
|
| 19. |
F018795
|
[2] |
Relief Valve
|
|
| |
F022078
|
[2] |
Seal Kit
|
|
| 20. |
F021602
|
[2] |
O-Ring
|
|
| 21. |
F018768
|
[8] |
O-Ring
|
|
| 22. |
F018796
|
[2] |
O-Ring
|
|
| 23. |
F021688
|
[2] |
O-Ring
|
|
| 24. |
F003393
|
[4] |
Screw
|
|
| 25. |
F010537
|
[7] |
Screw
|
|
| 26. |
F018797
|
[1] |
REDUCING VALVE
|
|
| |
F033365
|
[1] |
Seal Kit
|
|
| 27. |
F018798
|
[1] |
VALVE BLOCK
|
|
| 28. |
F018799
|
[4] |
Screw
|
|
| 29. |
F003286
|
[4] |
O-Ring
|
|
| 30. |
F015050
|
[1] |
VALVE BLOCK
|
|
| 31. |
F018801
|
[3] |
VALVE BLOCK
|
|
| 32. |
F018802
|
[3] |
Cover
|
|
| 33. |
F018812
|
[3] |
Cover
|
|
| 34. |
F018780
|
[2] |
Control Valve
|
|
| |
F008453
|
[4] |
Solenoid
|
|
| |
F018788
|
[4] |
Seal Kit
|
|
| 35. |
F018805
|
[3] |
RELIEF CARTRIDGE
|
|
| |
F018824
|
[3] |
Seal Kit
|
|
| 36. |
F008640
|
[2] |
RELIEF CARTRIDGE
|
|
| |
F018824
|
[2] |
Seal Kit
|
|
| 37. |
F008631
|
[3] |
Check Valve
|
|
| |
F021605
|
[3] |
O-Ring
|
|
| 38. |
F018776
|
[4] |
Check Valve
|
|
| |
F021607
|
[4] |
O-Ring
|
|
| 39. |
F018813
|
[1] |
Check Valve
|
|
| |
F021609
|
[1] |
O-Ring
|
|
| 40. |
F018814
|
[2] |
Check Valve
|
|
| |
F021609
|
[2] |
O-Ring
|
|
| 41. |
F018806
|
[3] |
Relief Valve
|
|
| |
F018827
|
[3] |
Seal Kit
|
|
| 42. |
F018807
|
[4] |
Valve
|
|
| |
F018828
|
[3] |
O-Ring
|
|
| |
F018829
|
[3] |
SUPPORT RING
|
|
| |
F018078
|
[3] |
O-Ring
|
|
| |
F008224
|
[3] |
COPPER WASHER
|
|
| 43. |
F018808
|
[2] |
Relief Valve
|
|
| |
F018829
|
[3] |
SUPPORT RING
|
|
| |
F018078
|
[3] |
O-Ring
|
|
| |
F008224
|
[3] |
COPPER WASHER
|
|
| 44. |
F018771
|
[10] |
O-Ring
|
|
| 45. |
F008644
|
[16] |
Screw
|
|
| 46. |
F018772
|
[14] |
O-Ring
|
|
| 47. |
F008639
|
[3] |
Spring
|
|
| 48. |
F018815
|
[1] |
Spring
|
|
| 49. |
F018811
|
[12] |
Screw
|
|
| 50. |
F010749
|
[12] |
Screw
|
|
| 51. |
F010828
|
[16] |
Screw
|
|
| 52. |
F018810
|
[1] |
Spring
|
|
| 54. |
F018804
|
[1] |
Control Valve
|
|
| |
F018780
|
[1] |
Control Valve
|
|
| |
F008453
|
[1] |
Solenoid
|
|
| |
F018788
|
[1] |
Seal Kit
|
|
| 55. |
F018769
|
[1] |
VALVE BLOCK
|
|
| 56. |
F018770
|
[1] |
REDUCING VALVE
|
|
| 57. |
F018124
|
[1] |
Check Valve
|
|
| 58. |
F018773
|
[1] |
VALVE BLOCK
|
|
| 59. |
F005212
|
[1] |
Control Valve
|
|
| |
F018780
|
[1] |
Control Valve
|
|
| |
F008453
|
[2] |
Solenoid
|
|
| |
F018788
|
[2] |
Seal Kit
|
|
| 60. |
F046811
|
[1] |
REDUCING VALVE
|
|
| |
F017725
|
[1] |
Seal Kit
|
|
| 61. |
F018777
|
[4] |
Screw
|
|
| |
F035767
|
[4] |
Screw
|
|
| 62. |
F018778
|
[1] |
FLAT PIECE
|
|
| 63. |
F018779
|
[1] |
VALVE BLOCK
|
|
| 64. |
F018780
|
[1] |
Control Valve
|
|
| |
F008453
|
[2] |
Solenoid
|
|
| |
F018788
|
[2] |
Seal Kit
|
|
| 65. |
F018781
|
[2] |
Relief Valve
|
|
| |
F033366
|
[2] |
Seal Kit
|
|
| 66. |
F018771
|
[2] |
O-Ring
|
|
| 67. |
F003285
|
[1] |
O-Ring
|
|
| 68. |
F013057
|
[4] |
Screw
|
|
| 69. |
F008644
|
[4] |
Screw
|
|
| 70. |
F013458
|
[1] |
THROTTLE SCREW
|
|
| 71. |
F024431
|
[1] |
THROTTLE
|
|
| |
F021605
|
[1] |
O-Ring
|
|
| |
F024840
|
[1] |
THROTTLE SCREW
|
|
| 72. |
F016303
|
[4] |
Screw
|
|
| 73. |
F024819
|
[1] |
RELIEF CARTRIDGE
|
|
| |
F018824
|
[1] |
Seal Kit
|
|
| 74. |
F004578
|
[12] |
Connector
|
|
| 75. |
F020012
|
[2] |
Connector
|
|
| 76. |
F035765
|
[1] |
BLOCK
|
|
| 77. |
F035766
|
[1] |
Valve
|
|
| 78. |
F013272
|
[2] |
RELIEF CARTRIDGE
|
|
| 79. |
F017718
|
[2] |
Plug
|
|
| 80. |
F003286
|
[4] |
O-Ring
|
|
| 81. |
F008449
|
[2] |
O-Ring
|
|
