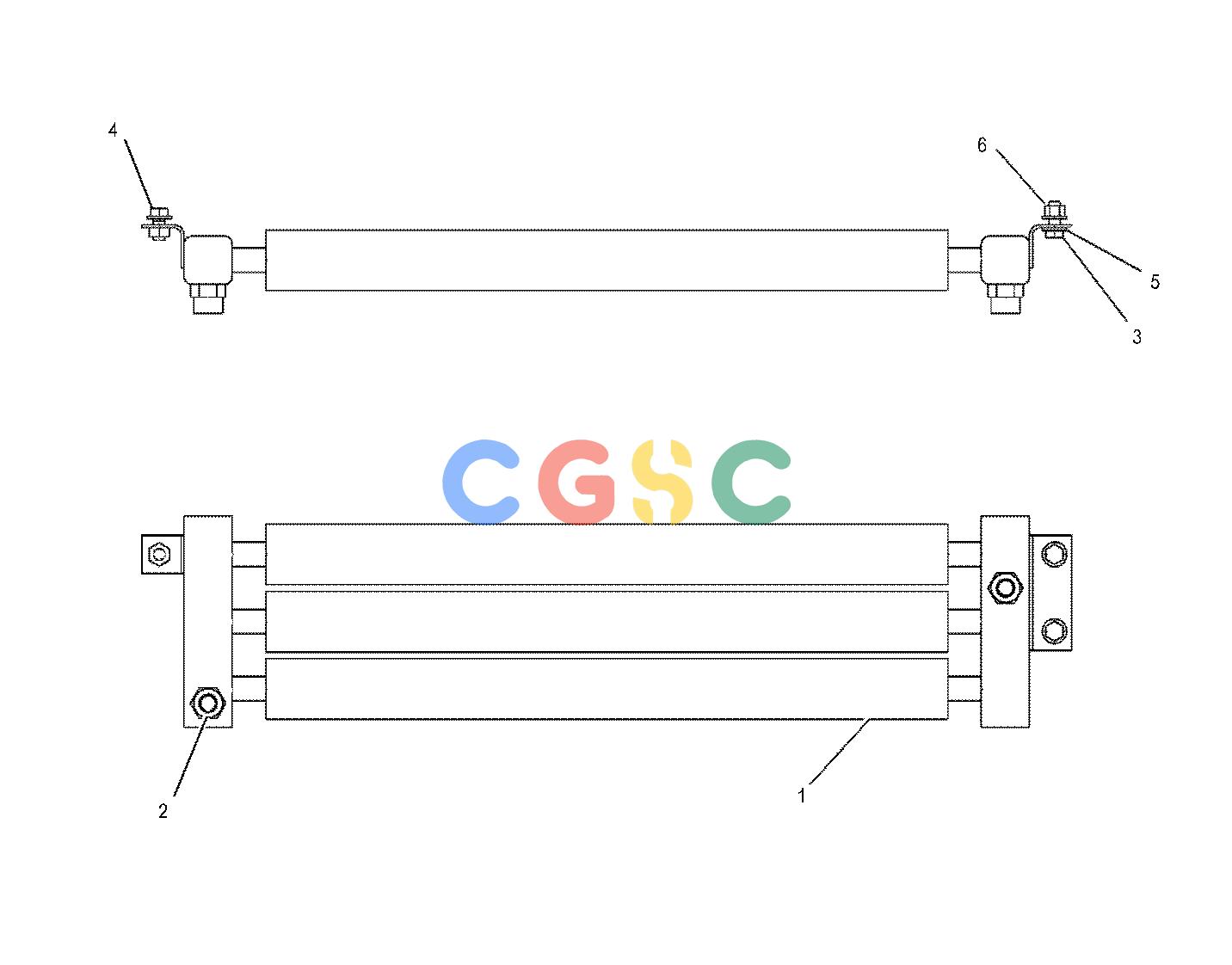

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 203-0863 | [1] | CORE AS-OIL COOLER(OUTPUT TRANSFER GEAR) | |
| 6V-8637 | [2] | CONNECTOR | ||
| 8T-3597M | [1] | NUT-WELD(M12X1.75-THD) | ||
| 2. | 6V-9746 | [2] | SEAL-O-RING | |
| 3. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 4. | 8T-4192M | [1] | BOLT(M12X1.75X25-MM) | |
| 5. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| M | METRIC PART | |||
