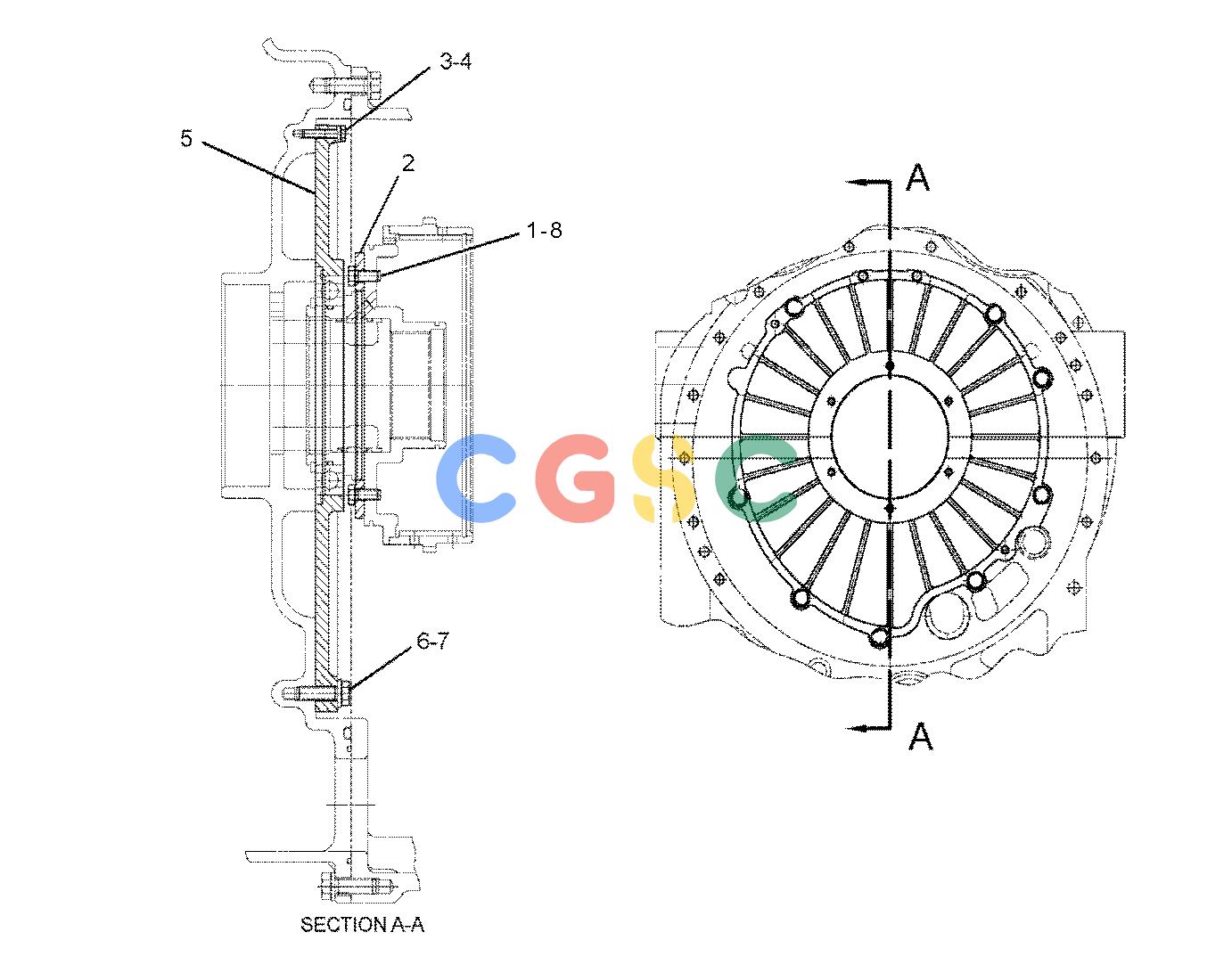

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6V-5217M | [12] | BOLT(M8X1.25X20-MM) | |
| 2. | 299-3263 | [1] | PLATE | |
| 3. | 8T-0640M | [2] | BOLT(M6X1X30-MM) | |
| 4. | 9X-8267 | [2] | WASHER(6.6X12X2-MM THK) | |
| 5. | [1] | COVER AS | ||
| 6. | 6V-3822M | [8] | BOLT(M10X1.5X35-MM) | |
| 7. | 6V-5839 | [8] | WASHER(11X21X2.5-MM THK) | |
| 8. | 9M-1974 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| M | METRIC PART | |||
