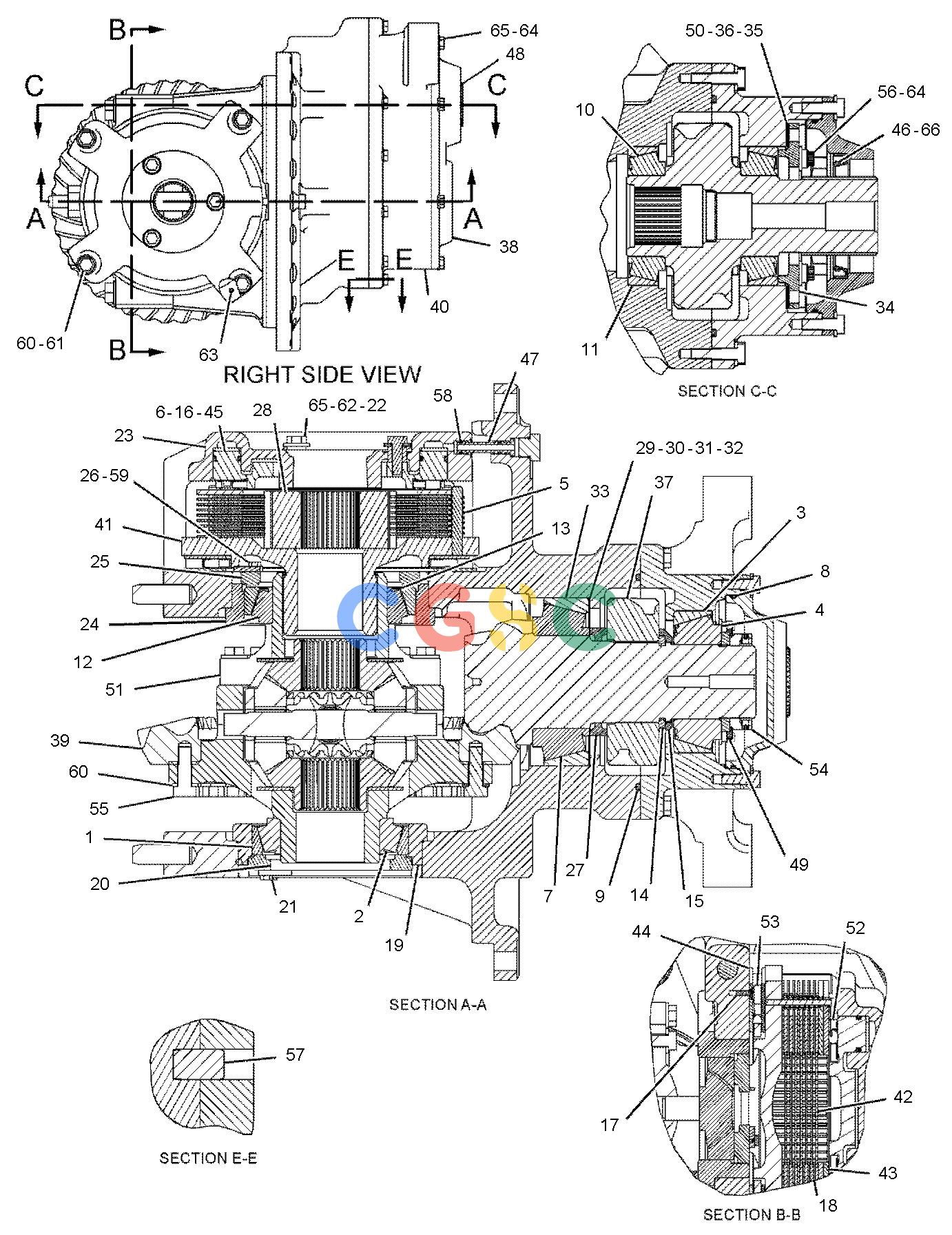

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 1P-4693 | [1] | CUP-BEARING | |
| 2. | 1P-4694 | [1] | CONE-BEARING | |
| 3. | 2D-9454 | [1] | CUP-BEARING | |
| 4. | 2D-9455 | [1] | CONE-BEARING | |
| 5. | 3S-1374 | [3] | SPRING | |
| 6. | 4K-6804 | [1] | SEAL-O-RING | |
| 7. | 5P-9505 | [1] | CONE-BEARING | |
| 8. | 5S-3676 | [2] | SEAL-O-RING | |
| 9. | 6V-5057 | [1] | SEAL-O-RING | |
| 10. | 8H-7801 | [2] | CONE-BEARING | |
| 11. | 8H-7803 | [2] | CUP-BEARING | |
| 12. | 8S-9075 | [1] | CONE-BEARING | |
| 13. | 8S-9076 | [1] | CUP-BEARING | |
| 14. | 9D-1853 | [2] | RETAINER | |
| 15. | 9D-1854 | [1] | SPACER-SPECIAL(12.7-MM THK) | |
| 16. | 9F-1399 | [1] | SEAL-O-RING | |
| 17. | 127-1960M | [8] | SCREW-FLAT HEAD(M6X1X16-MM) | |
| 18. | 136-6324 | [7] | DISC-FRICTION | |
| 19. | 138-1486 | [1] | CAGE-BEARING | |
| 20. | 138-1487 | [1] | RING-ADJUSTMENT | |
| 21. | 138-1488 | [1] | LOCK | |
| 22. | 138-1490 | [3] | SPACER(10.2X18X15-MM THK) | |
| 23. | 138-1504 | [1] | PISTON HOUSING | |
| 24. | 138-3623 | [1] | CAGE | |
| 25. | 138-3624 | [1] | RING | |
| 26. | 138-3626 | [1] | LOCK | |
| 27. | 138-3628 | [1] | SPACER(79X103X16.4-MM THK) | |
| 28. | 138-3638 | [1] | HUB | |
| 29. | 138-4096B | [5] | SHIM(0.05-MM THK) | |
| 30. | 138-4097B | [5] | SHIM(0.08-MM THK) | |
| 31. | 138-4098B | [3] | SHIM(0.12-MM THK) | |
| 32. | 138-4099B | [1] | SHIM(0.5-MM THK) | |
| 33. | 1J-2860 | [1] | CUP-BEARING | |
| 34. | 139-2154 | [1] | CAGE | |
| 35. | 139-2155B | [4] | SHIM(0.08-MM THK) | |
| 36. | 139-2156B | [5] | SHIM(0.12-MM THK) | |
| 37. | 147-7379 | [1] | GEAR(33-TEETH) | |
| 38. | 147-7383 | [1] | RETAINER-SEAL | |
| 39. | 147-7385 | [1] | GEAR SET-BEVEL(40-TEETH) | |
| 40. | 147-7388Y | [1] | CARRIER GP-DIFFERENTIAL(CENTER) | |
| 41. | 151-8269 | [1] | HUB AS | |
| 42. | 151-8274 | [7] | PLATE-CLUTCH | |
| 43. | 151-8275 | [2] | PLATE-CLUTCH | |
| 44. | 151-8397 | [2] | PLATE | |
| 45. | 160-8060 | [1] | PISTON | |
| 46. | 162-7183 | [1] | SEAL-LIP TYPE | |
| 47. | 163-1921 | [1] | TUBE | |
| 48. | 168-9029 | [1] | GEAR AS | |
| 4K-0149 | [1] | PLUG-CUP | ||
| 49. | 176-5816 | [1] | WASHER(70.4X95.5X8-MM THK) | |
| 50. | 184-4339B | [1] | SHIM(0.92-MM THK) | |
| 51. | 193-4303Y | [1] | DIFFERENTIAL GP(DRIVE AXLE) | |
| 52. | 217-3252 | [1] | BEARING-NEEDLE | |
| 53. | 224-2323 | [1] | BEARING-THRUST | |
| 54. | 250-7859 | [1] | LOCKNUT(2-3/4-18-THD) | |
| 198-0050 | [4] | SETSCREW(1/4-28X0.37-IN) | ||
| 55. | 0S-1603 | [30] | BOLT(1/2-20X1.5-IN) | |
| 56. | 136-4183M | [4] | BOLT-12 POINT HEAD(M10X1.5X30-MM) | |
| 57. | 1S-2199 | [2] | DOWEL | |
| 58. | 4J-2506 | [2] | SEAL-O-RING | |
| 59. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 60. | 5P-8245 | [34] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 61. | 7X-0909M | [4] | BOLT(M12X1.75X140-MM) | |
| 62. | 7X-7729 | [3] | WASHER(11X25X3-MM THK) | |
| 63. | 8C-3347 | [2] | PIN-ROLL | |
| 64. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 65. | 8T-4195M | [9] | BOLT(M10X1.5X30-MM) | |
| 66. | 1U-8846B | SEALANT-GASKET | ||
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
