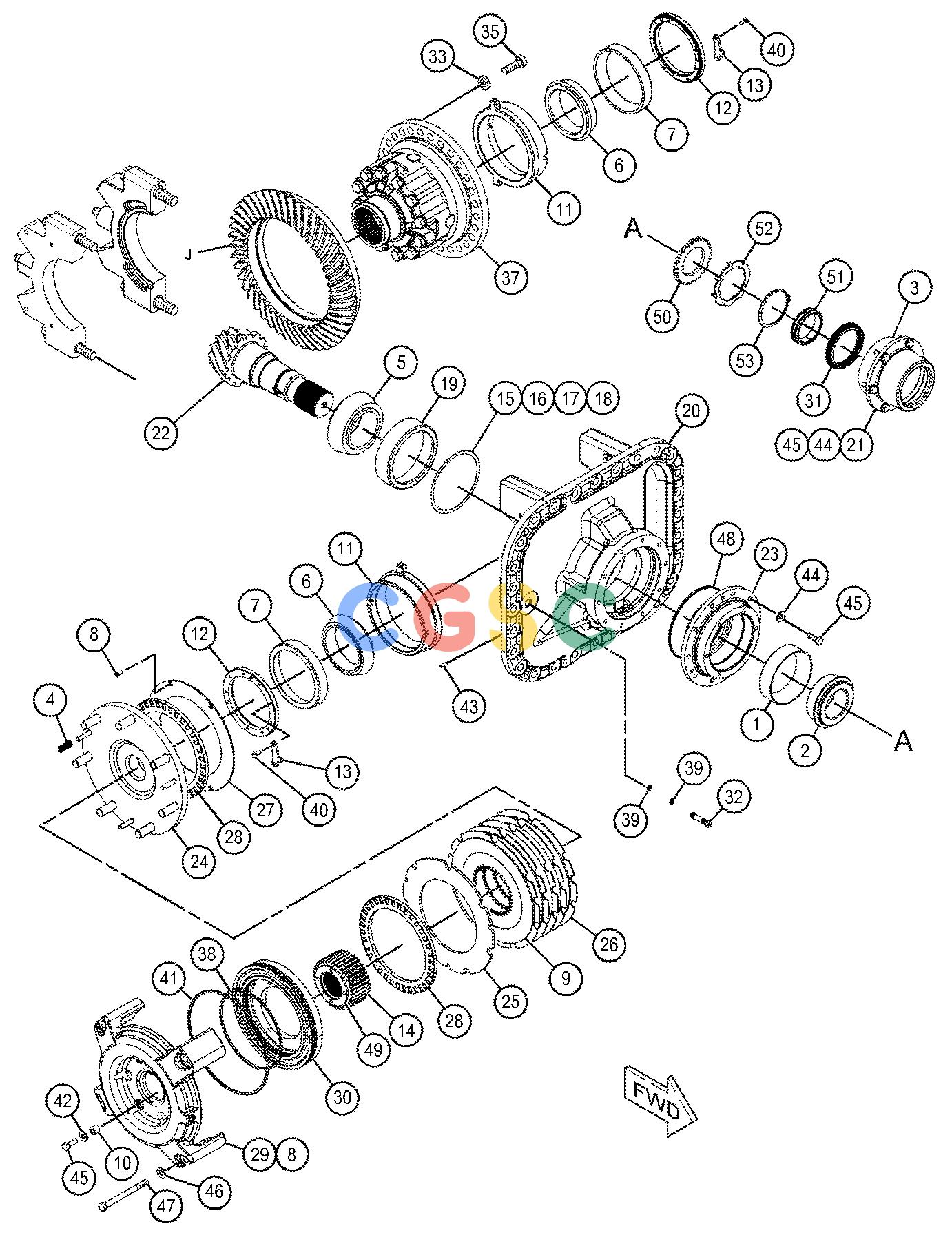

卡特零件查询（735） 148-7200: DIFFERENTIAL & BEVEL GEAR GP
广数供应链运营团队, 15 02月, 2025，浏览：
293 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2D-9454 | [1] | CUP-BEARING | |
| 2. | 2D-9455 | [1] | CONE-BEARING | |
| 3. | 3F-5792 | [1] | SEAL-O-RING | |
| 4. | 3S-1374 | [3] | SPRING | |
| 5. | 5P-9505 | [1] | CONE-BEARING | |
| 6. | 8S-9075 | [2] | CONE-BEARING | |
| 7. | 8S-9076 | [2] | CUP-BEARING | |
| 8. | 127-1960M | [8] | SCREW-FLAT HEAD(M6X1X16-MM) | |
| 9. | 136-6325 | [5] | DISC-FRICTION | |
| 10. | 138-1490 | [3] | SPACER(10.2X18X15-MM THK) | |
| 11. | 138-3623 | [2] | CAGE(BEARING) | |
| 12. | 138-3624 | [2] | RING | |
| 13. | 138-3626 | [2] | LOCK | |
| 14. | 138-3638 | [1] | HUB | |
| 15. | 138-4096 | [5] | SHIM(0.05-MM THK) | |
| 16. | 138-4097 | [5] | SHIM(0.08-MM THK) | |
| 17. | 138-4098 | [3] | SHIM(0.12-MM THK) | |
| 18. | 138-4099 | [1] | SHIM(0.5-MM THK) | |
| 19. | 1J-2860 | [1] | CUP-BEARING | |
| 20. | 367-6367Y | [1] | CARRIER GP-DIFFERENTIAL(FRONT) | |
| 21. | 143-7605 | [1] | RETAINER | |
| 22. | 361-9411 | [1] | GEAR SET-BEVEL | |
| | | | (INCLUDES PARTS MARKED "J" IN GRAPHIC) |
| 23. | 147-7381 | [1] | CAGE | |
| 24. | 258-4467 | [1] | HUB AS | |
| | 151-8108 | [3] | DOWEL | |
| 25. | 151-8281 | [1] | PLATE | |
| 26. | 151-8282 | [5] | PLATE(CLUTCH) | |
| 27. | 151-8397 | [1] | PLATE | |
| 28. | 224-2323 | [2] | BEARING-THRUST | |
| 29. | 445-6671 | [1] | HOUSING-PISTON | |
| 30. | 355-8796 | [1] | PISTON | |
| 31. | 293-4503 | [1] | SEAL-LIP TYPE | |
| 32. | 163-1921 | [1] | TUBE | |
| 33. | 171-3010 | [28] | WASHER-HARD(17.5X32X7-MM THK) | |
| 35. | 160-8509M | [28] | BOLT(M16X2X50-MM) | |
| 37. | 219-1879Y | [1] | DIFFERENTIAL GP(DRIVE AXLE) | |
| 38. | 355-9369 | [1] | SEAL-D-RING | |
| 39. | 4J-2506 | [2] | SEAL-O-RING | |
| 40. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 41. | 355-9368 | [1] | SEAL-D-RING | |
| 42. | 7X-7729 | [3] | WASHER(11X25X3-MM THK) | |
| 43. | 8C-3347 | [2] | PIN-ROLL | |
| 44. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 45. | 8T-4195M | [19] | BOLT(M10X1.5X30-MM) | |
| 46. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 47. | 8T-5412M | [4] | BOLT(M12X1.75X140-MM) | |
| 48. | 9F-1399 | [1] | SEAL-O-RING | |
| 49. | 444-8152 | [1] | WASHER-THRUST | |
| 50. | 504-6542 | [1] | WASHER | |
| 51. | 504-6540 | [1] | NUT-BEARING LOCK | |
| 52. | 485-9743 | [1] | WASHER-LOCK | |
| 53. | 5L-4753 | [1] | RING-RETAINING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
